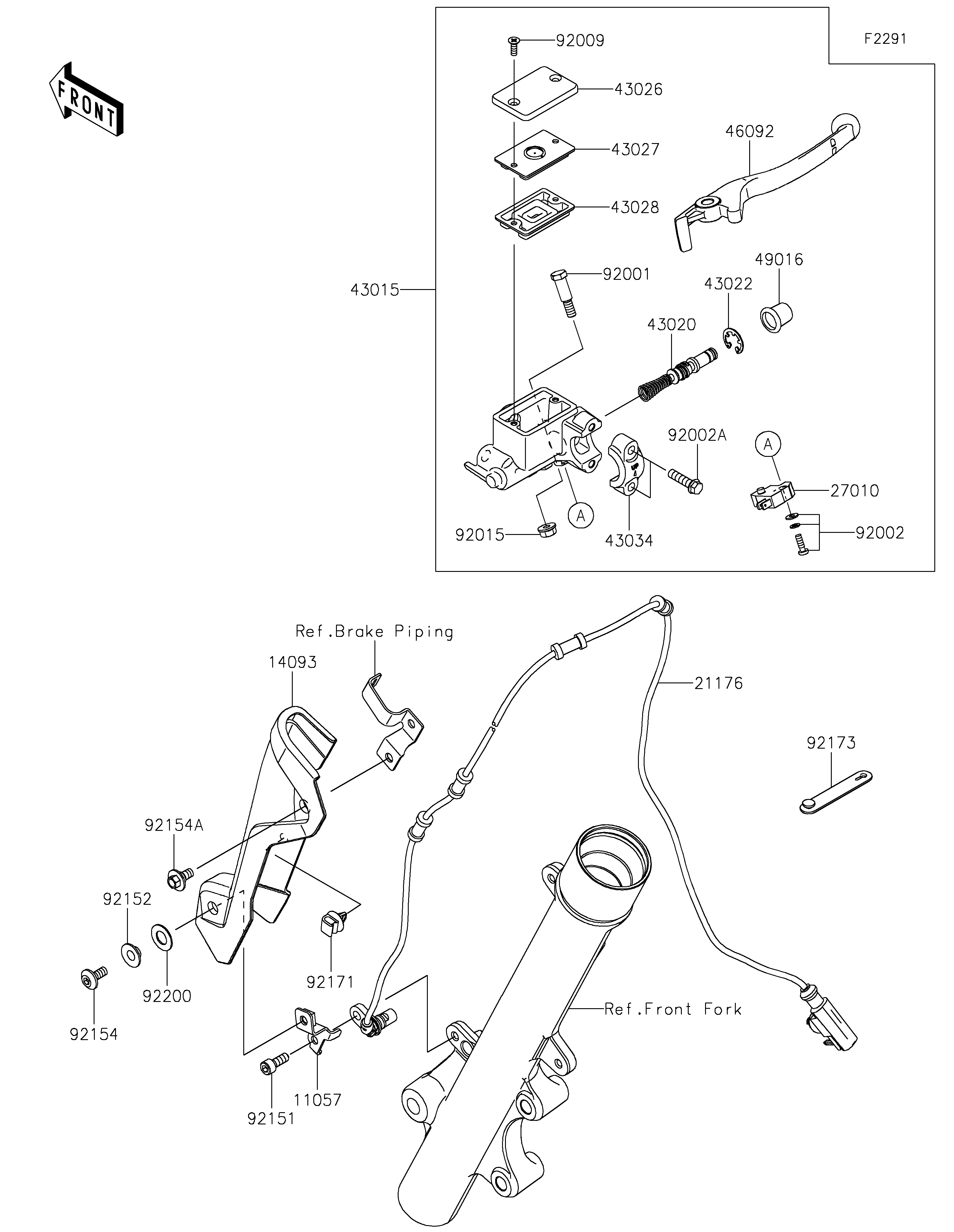

2025 KLX®230 S ABS - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
14093
21176
27010
43015
43020
43022
43026
43027
43028
43034
46092
49016
92001
92002
92002A
92009
92015
92151
92152
92154
92154A
92171
92173
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ABS SENSOR 11057 11057-4142 1
COVER,ABS SENSOR 14093 14093-0863 1
SENSOR,SPEED,FR 21176 21176-1244 1
SWITCH,BRAKE 27010 27010-0873 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0826 1
PISTON-COMP-BRAKE 43020 43020-0034 1
STOPPER-BRAKE,PISTON 43022 43022-0004 1
CAP-BRAKE 43026 43026-1082 1
PLATE-DIAPHRAGM 43027 43027-1057 1
DIAPHRAGM 43028 43028-1061 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-1016 1
LEVER-GRIP,FRONT BRAKE 46092 46092-0587 1
COVER-SEAL,MASTER CYLINDER 49016 49016-1044 1
BOLT,FRONT BRAKE LEVER 92001 92001-1728 1
BOLT,SCREW,4X12 92002 92002-1323 1
BOLT 92002A 92002-1894 2
SCREW,4MM 92009 92009-1458 2
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
BOLT 92151 92151-1166 1
COLLAR 92152 92152-0427 1
BOLT,SOCKET,6X14 92154 92154-3763 1
BOLT,FLANGED,6X13 92154A 92154-4411 1
CLAMP 92171 92171-0640 1
CLAMP 92173 92173-2199 3
WASHER,10.5X20X1.0 92200 92200-0870 1
