Parts Diagrams |

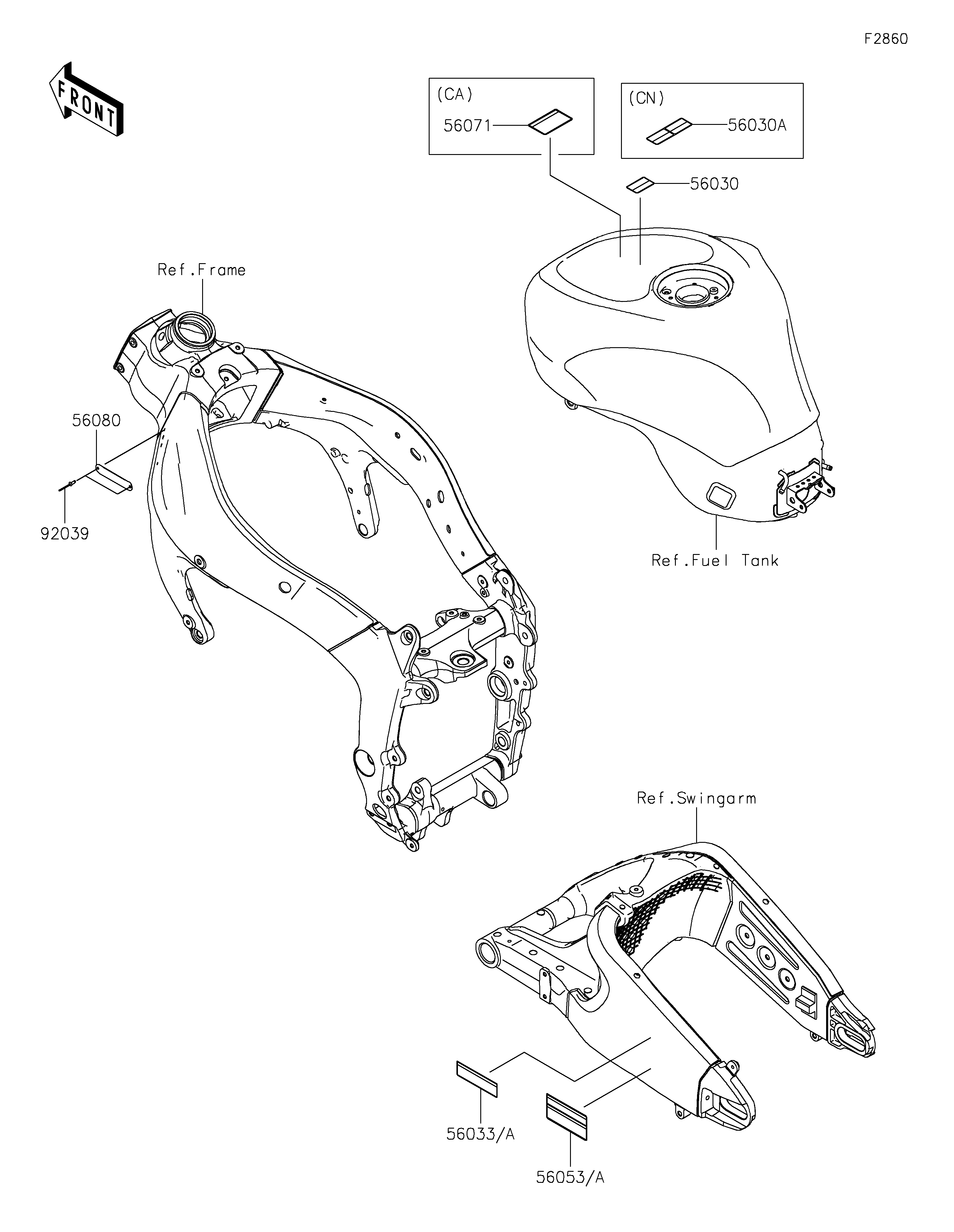

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LABEL,GASOLINE | 56030 | 56030-0357 | 1 | CA,US | |
| LABEL,GASOLINE | 56030A | 56030-0358 | 1 | CN | |
| LABEL-MANUAL,CHAIN | 56033 | 56033-1427 | 1 | ||
| LABEL-MANUAL,CHAIN | 56033A | 56033-1428 | 1 | CN | |
| LABEL-SPECIFICATION,TIRE&LOAD | 56053 | 56053-2084 | 1 | ||
| LABEL-SPECIFICATION,TIRE&LOAD | 56053A | 56053-2085 | 1 | CN | |
| LABEL-WARNING,EVAPO | 56071 | 56071-0158 | 1 | CA | |
| LABEL-BRAND,KAWASAKI | 56080 | 56080-1077 | 1 | ||
| RIVET | 92039 | 92039-1251 | 2 |
| LABEL,GASOLINE | |
| REF # | 56030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA,US |
| REMARKS | |
| LABEL,GASOLINE | |
| REF # | 56030A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-MANUAL,CHAIN | |
| REF # | 56033 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,CHAIN | |
| REF # | 56033A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-SPECIFICATION,TIRE&LOAD | |
| REF # | 56053 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-SPECIFICATION,TIRE&LOAD | |
| REF # | 56053A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CN |
| REMARKS | |
| LABEL-WARNING,EVAPO | |
| REF # | 56071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| LABEL-BRAND,KAWASAKI | |
| REF # | 56080 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIVET | |
| REF # | 92039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
