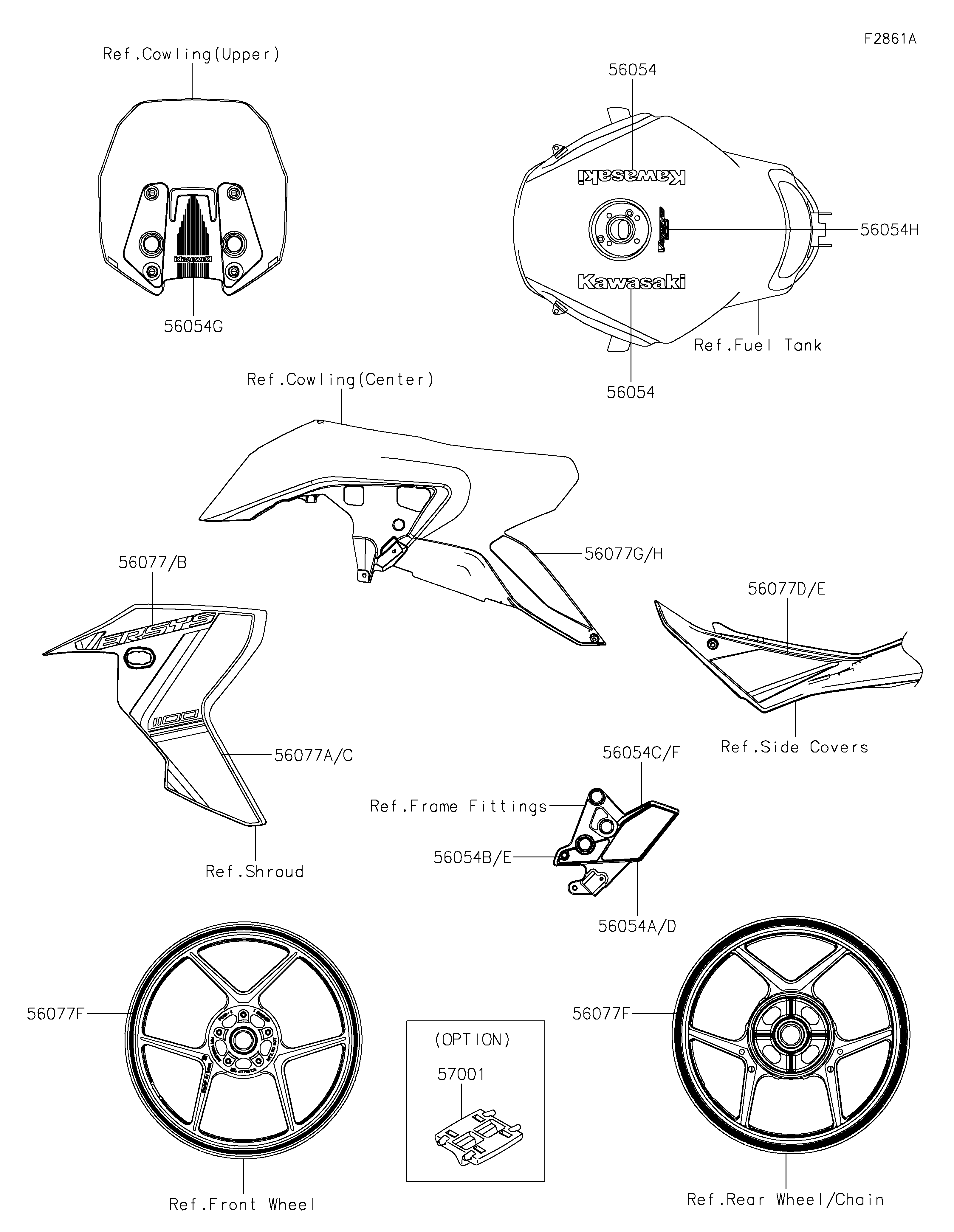

2025 Versys 1100 SE LT ABS - Decals(White)(CSFNN)(CN)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054
56054A
56054B
56054C
56054D
56054E
56054F
56054G
56054H
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077F
56077G
56077H
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,KAWASAKI 56054 56054-1404 2 CN
MARK,STEP STAY,LH,RR 56054A 56054-1548 1 CN
MARK,STEP STAY,LH,FR 56054B 56054-1549 1 CN
MARK,STEP STAY,LH,SIDE 56054C 56054-1710 1 CN
MARK,STEP STAY,RH,RR 56054D 56054-1711 1 CN
MARK,STEP STAY,RH,FR 56054E 56054-1712 1 CN
MARK,STEP STAY,RH,SIDE 56054F 56054-1713 1 CN
MARK,WINDSHIELD,KAWASAKI 56054G 56054-2185 1 CN
MARK,FUEL TANK,VERSYS1100 56054H 56054-4349 1 CN
PATTERN,SHROUD,LH,UPP 56077 56077-2667 1 CN
PATTERN,SHROUD,LH,LWR 56077A 56077-2668 1 CN
PATTERN,SHROUD,RH,UPP 56077B 56077-2669 1 CN
PATTERN,SHROUD,RH,LWR 56077C 56077-2670 1 CN
PATTERN,SIDE COVER,LH 56077D 56077-2671 1 CN
PATTERN,SIDE COVER,RH 56077E 56077-2672 1 CN
PATTERN,WHEEL,GOLD,4X1350 56077F 56077-2673 4 CN
PATTERN,SIDE COWL.,LH 56077G 56077-2769 1 CN
PATTERN,SIDE COWL.,RH 56077H 56077-2770 1 CN
RIM STRIPE APPLICATOR 57001 57001-1752 AR CN A
