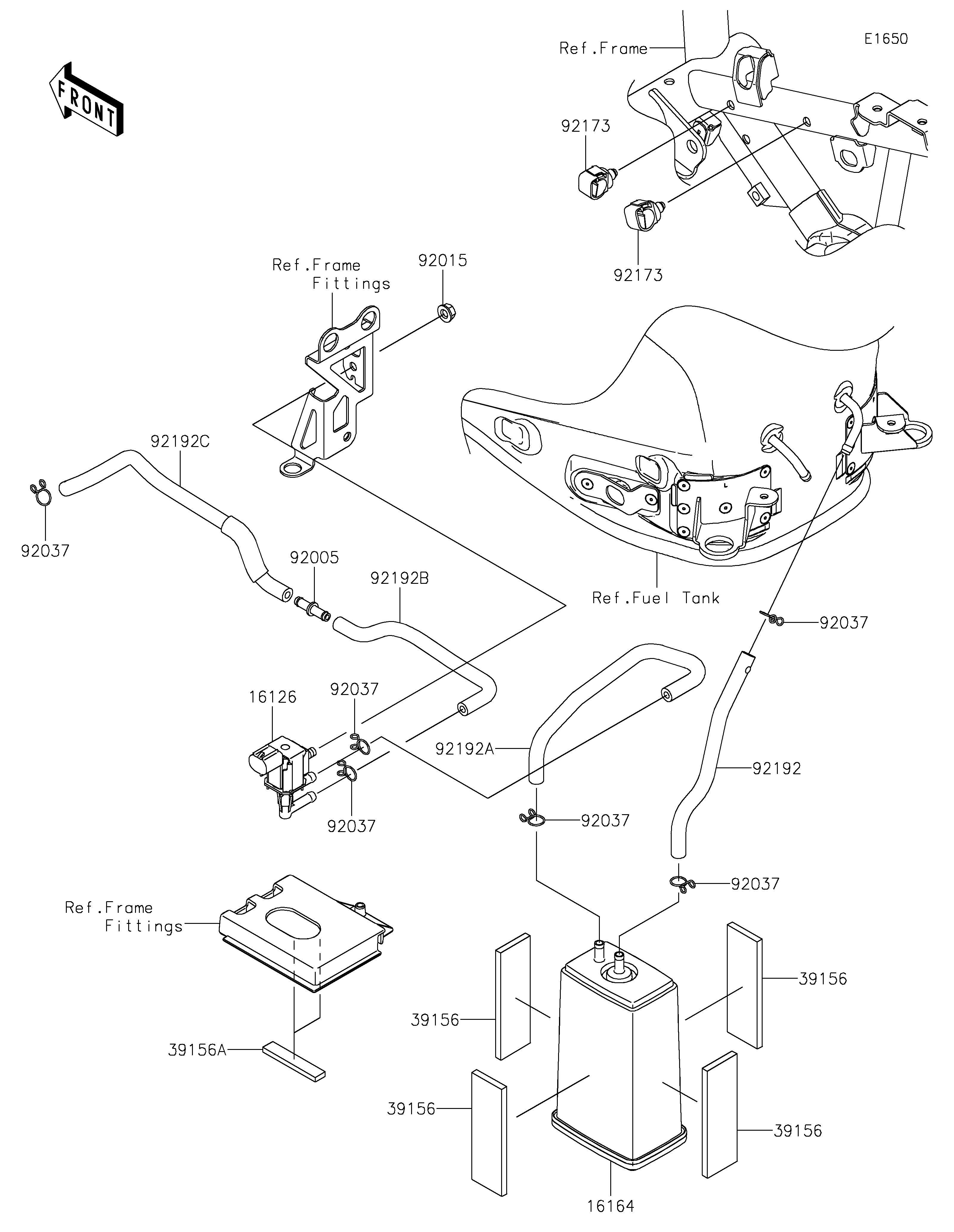

2026 Z900RS SE ABS - Fuel Evaporative System
16126
16164
39156
39156
39156
39156
39156A
92005
92015
92037
92037
92037
92037
92037
92037
92173
92173
92192
92192A
92192B
92192C
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| VALVE,PCV | 16126 | 16126-0740 | 1 | ||
| CANISTER | 16164 | 16164-0012 | 1 | ||
| PAD,93X30X5 | 39156 | 39156-1858 | 4 | ||
| PAD,10X52.5X4 | 39156A | 39156-2206 | 2 | ||
| FITTING | 92005 | 92005-0721 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 6 | ||
| CLAMP,12MM DIA. | 92173 | 92173-0736 | 2 | ||
| TUBE,CANISTER-TANK | 92192 | 92192-1799 | 1 | ||
| TUBE,PCV-CANISTER | 92192A | 92192-1800 | 1 | ||
| TUBE,VALVE-TUBE(CANISTER) | 92192B | 92192-2506 | 1 | ||
| TUBE,FITTING-THROTTLE BODY | 92192C | 92192-2874 | 1 |
