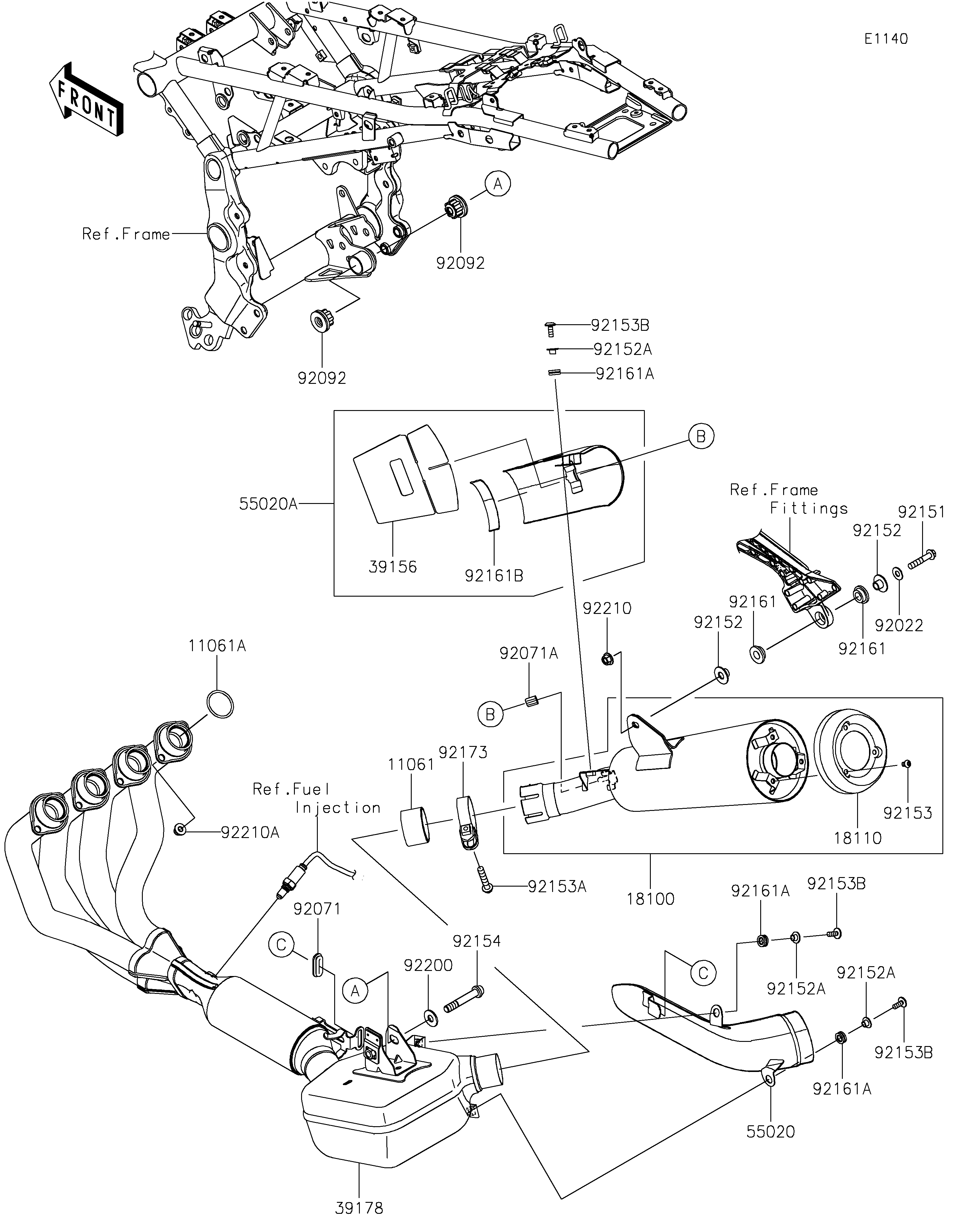

2026 Z900RS SE ABS - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11061
11061A
18100
18110
39156
39178
55020
55020A
92022
92071
92071A
92092
92092
92151
92152
92152
92152A
92152A
92152A
92153
92153A
92153B
92153B
92153B
92154
92161
92161
92161A
92161A
92161A
92161B
92173
92200
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,MUFFLER CONNECTING 11061 11061-0726 1
GASKET,EXHAUST PIPE HOLDER 11061A 11061-1373 4
BODY-ASSY-MUFFLER 18100 18100-0641 1
BODY END-MUFFLER 18110 18110-0278 1
PAD 39156 39156-2353 1
MANIFOLD-COMP-EXHAUST 39178 39178-0507 1
GUARD,FR 55020 55020-2598 1
GUARD,RR 55020A 55020-2599 1
WASHER,8.5X19X1.2 92022 92022-3730 1
GROMMET 92071 92071-0752 1
GROMMET 92071A 92071-1270 1
BUSHING-RUBBER 92092 92092-1081 2
BOLT,FLANGED,8X40 92151 92151-1532 1
COLLAR 92152 92152-0188 2
COLLAR,6.3X8.3X16 92152A 92152-0286 3
BOLT,6X8 92153 92153-0578 3
BOLT,8X45 92153A 92153-0702 1
BOLT,SOCKET,6X16 92153B 92153-1526 3
BOLT,SOCKET 92154 92154-1281 1
DAMPER 92161 92161-0135 2
DAMPER 92161A 92161-0306 3
DAMPER 92161B 92161-2100 1
CLAMP 92173 92173-1320 1
WASHER,10.5X25X2.0 92200 92200-1377 1
NUT,8MM 92210 92210-0121 1
NUT,CAP,8MM 92210A 92210-1132 8
