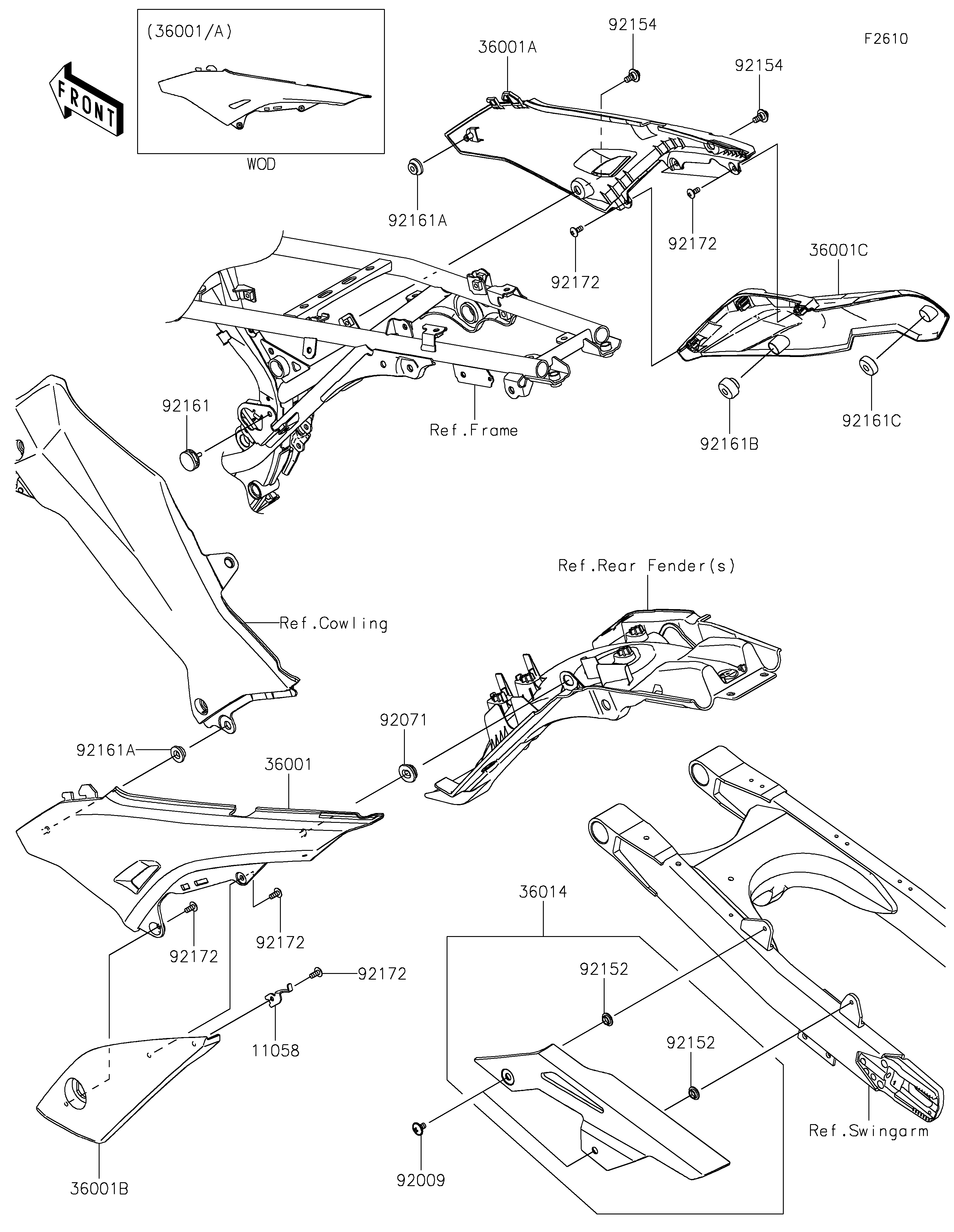

2026 KLX®230 SHERPA S ABS - Side Covers/Chain Cover
11058
36001
36001A
36001B
36001C
36014
92009
92071
92152
92152
92154
92154
92161
92161A
92161A
92161B
92161C
92172
92172
92172
92172
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11058 | 11058-3822 | 1 | ||
| COVER-SIDE,LH,UPP,W.BEIGE | 36001 | 36001-0761-67J | 1 | ||
| COVER-SIDE,RH,UPP,W.BEIGE | 36001A | 36001-0763-67J | 1 | ||
| COVER-SIDE,LH,LWR | 36001B | 36001-0790 | 1 | ||
| COVER-SIDE,RH,LWR | 36001C | 36001-0791 | 1 | ||
| CASE-CHAIN | 36014 | 36014-0560 | 1 | ||
| SCREW,6X10 | 92009 | 92009-1729 | 2 | ||
| GROMMET | 92071 | 92071-0795 | 1 | ||
| COLLAR,8.8X16X4 | 92152 | 92152-1731 | 2 | ||
| BOLT,FLANGED,6X13 | 92154 | 92154-4411 | 2 | ||
| DAMPER | 92161 | 92161-0581 | 1 | ||
| DAMPER | 92161A | 92161-1531 | 2 | ||
| DAMPER | 92161B | 92161-1783 | 1 | ||
| DAMPER | 92161C | 92161-2090 | 1 | ||
| SCREW,5X12 | 92172 | 92172-1095 | 6 |
| BRACKET | |
| REF # | 11058 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,UPP,W.BEIGE | |
| REF # | 36001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,UPP,W.BEIGE | |
| REF # | 36001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,LWR | |
| REF # | 36001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,LWR | |
| REF # | 36001C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X10 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,8.8X16X4 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X13 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
