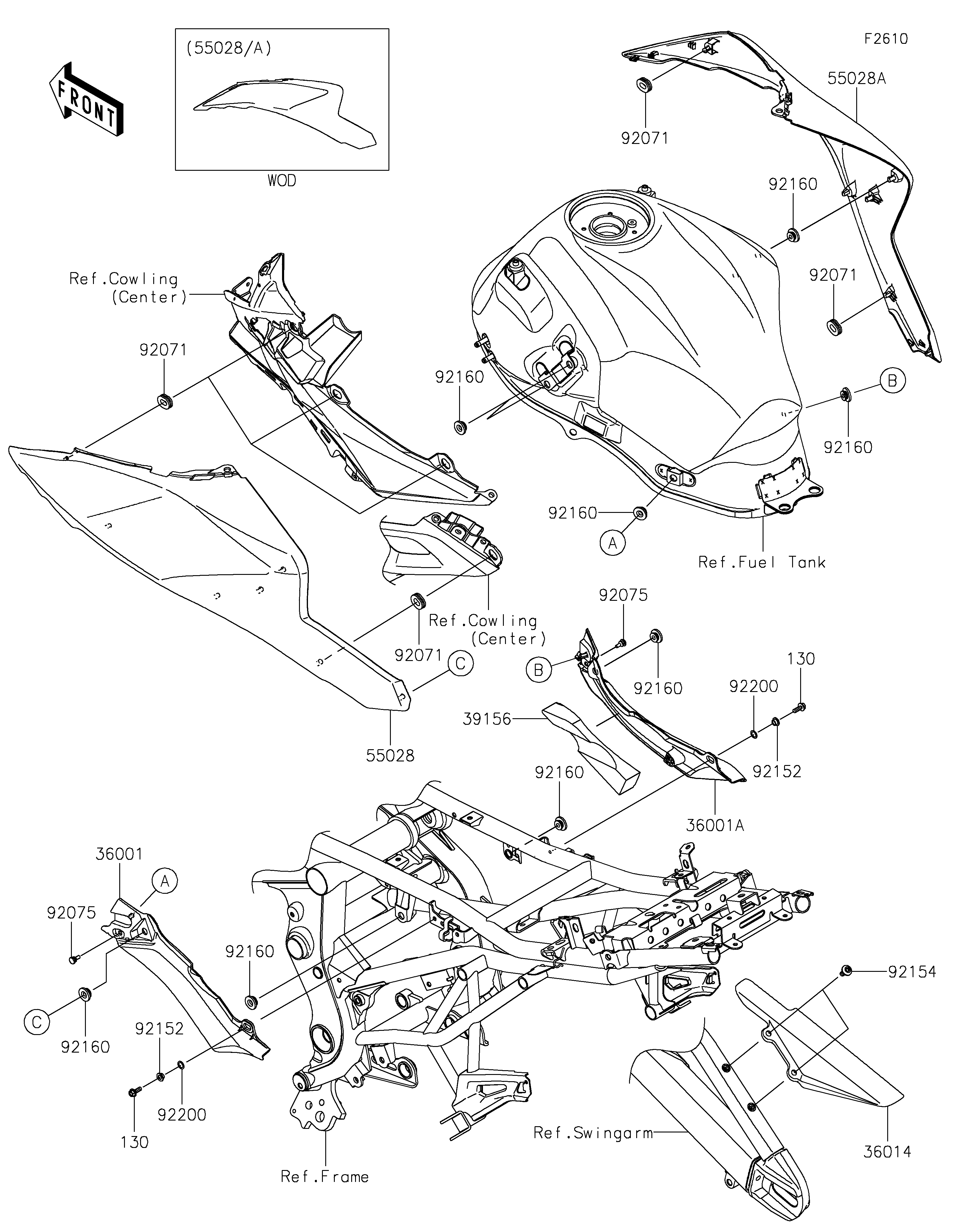

2026 Versys 650 - Side Covers/Chain Cover
36001
36001A
36014
39156
55028
55028A
92071
92071
92071
92071
92075
92075
92152
92152
92154
92160
92160
92160
92160
92160
92160
92160
92160
92200
92200
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,LH,M.S.BLACK | 36001 | 36001-0721-660 | 1 | ||
| COVER-SIDE,RH,M.S.BLACK | 36001A | 36001-0722-660 | 1 | ||
| CASE-CHAIN,RR | 36014 | 36014-0018 | 1 | ||
| PAD,SIDE COVER,RH | 39156 | 39156-2790 | 1 | ||
| COWLING,TANK,LH,M.D.BLUE | 55028 | 55028-0811-79L | 1 | ||
| COWLING,TANK,RH,M.D.BLUE | 55028A | 55028-0812-79L | 1 | ||
| GROMMET,11X23X7 | 92071 | 92071-0762 | 8 | ||
| DAMPER,6X10X15 | 92075 | 92075-1808 | 2 | ||
| COLLAR,5.6X8X5 | 92152 | 92152-2339 | 2 | ||
| BOLT,SOCKET,6X14 | 92154 | 92154-0932 | 2 | ||
| DAMPER | 92160 | 92160-1613 | 10 | ||
| WASHER,8.2X12X0.5 | 92200 | 92200-1887 | 2 | ||
| BOLT-FLANGED,5X14 | 130 | 130BA0514 | 2 |
