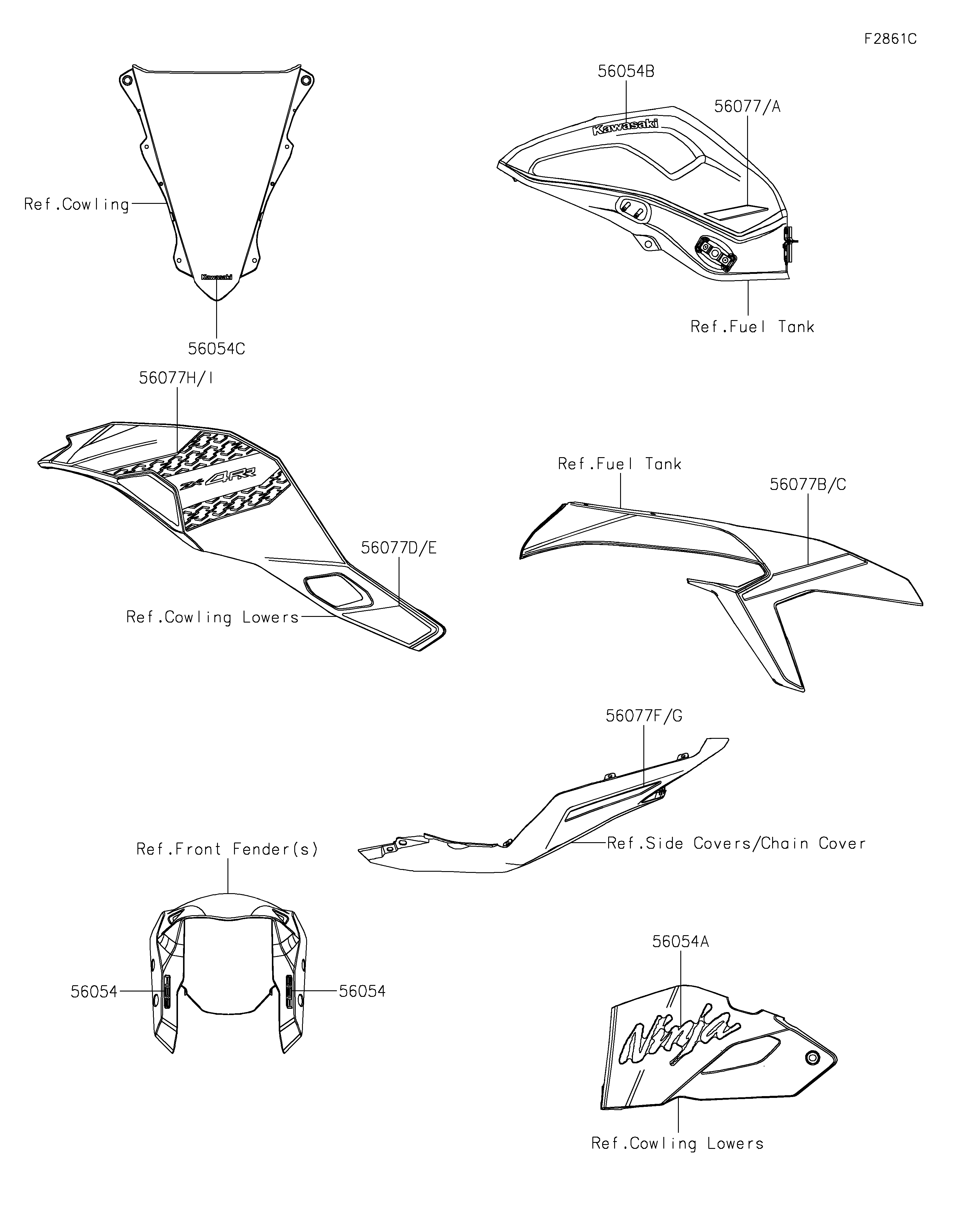

2026 NINJA® ZX™-4RR ABS - Decals(Gray)(STFAL)
56054
56054
56054A
56054B
56054C
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FR FENDER,ABS | 56054 | 56054-2979 | 2 | ||
| MARK,LWR COWL.,NINJA | 56054A | 56054-4452 | 2 | ||
| MARK,FUEL TANK,KAWASAKI | 56054B | 56054-4486 | 2 | ||
| MARK,WINDSHIELD,KAWASAKI | 56054C | 56054-4495 | 1 | ||
| PATTERN,FUEL TANK,LH | 56077 | 56077-4072 | 1 | ||
| PATTERN,FUEL TANK,RH | 56077A | 56077-4073 | 1 | ||
| PATTERN,KNEE GRIP COVER,LH | 56077B | 56077-4074 | 1 | ||
| PATTERN,KNEE GRIP COVER,RH | 56077C | 56077-4075 | 1 | ||
| PATTERN,SIDE COWL.,LH,LWR | 56077D | 56077-4077 | 1 | ||
| PATTERN,SIDE COWL.,RH,LWR | 56077E | 56077-4079 | 1 | ||
| PATTERN,TAIL COVER,LH | 56077F | 56077-4080 | 1 | ||
| PATTERN,TAIL COVER,RH | 56077G | 56077-4081 | 1 | ||
| PATTERN,SIDE COWL.,LH | 56077H | 56077-4096 | 1 | ||
| PATTERN,SIDE COWL.,RH | 56077I | 56077-4097 | 1 |
| MARK,FR FENDER,ABS | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWL.,NINJA | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56054B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,WINDSHIELD,KAWASAKI | |
| REF # | 56054C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56077A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,KNEE GRIP COVER,LH | |
| REF # | 56077B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,KNEE GRIP COVER,RH | |
| REF # | 56077C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH,LWR | |
| REF # | 56077D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH,LWR | |
| REF # | 56077E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56077F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56077G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,LH | |
| REF # | 56077H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWL.,RH | |
| REF # | 56077I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
