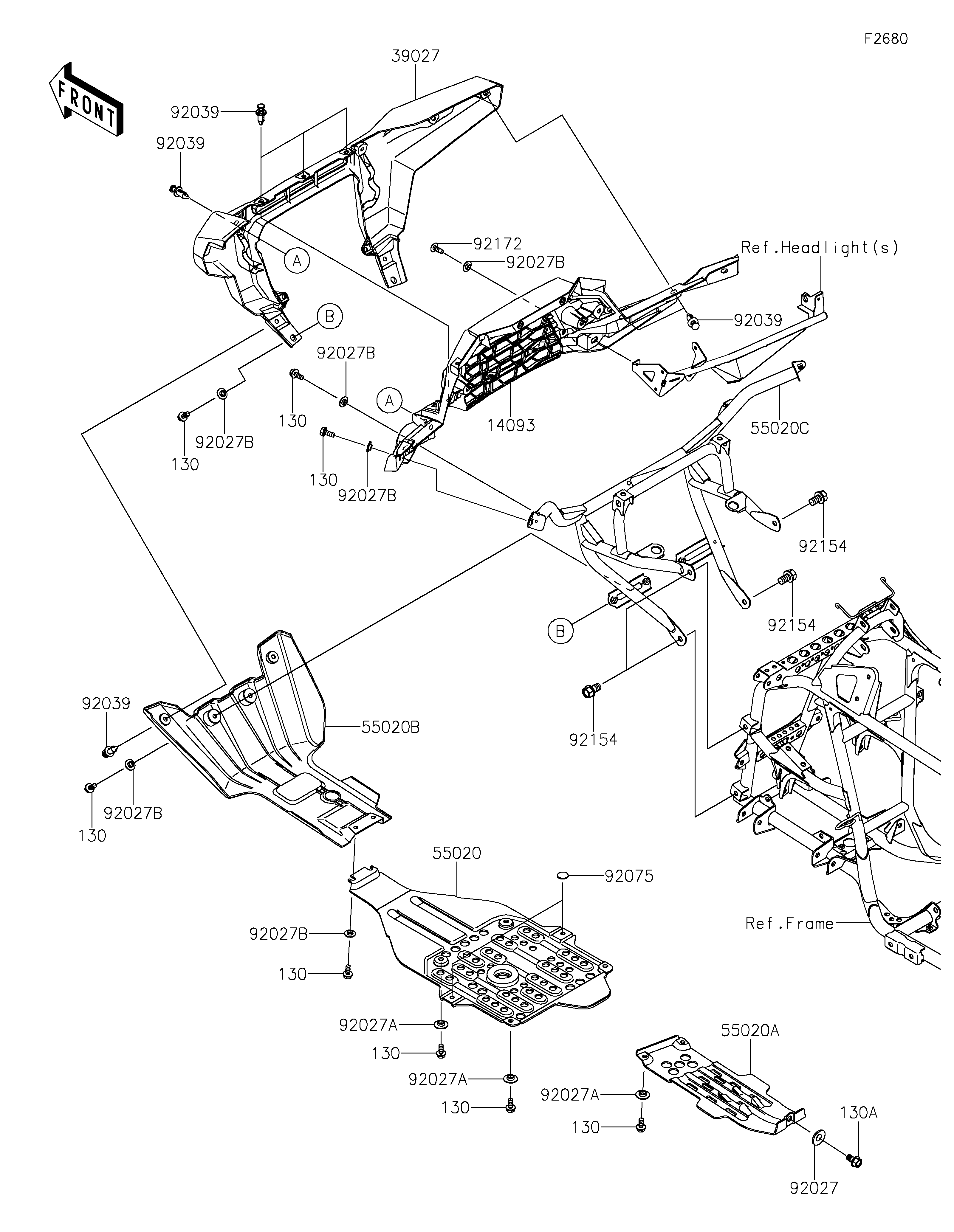

2026 BRUTE FORCE® 750 SE EPS - Guard(s)
14093
39027
55020
55020A
55020B
55020C
92027
92027A
92027A
92027A
92027B
92027B
92027B
92027B
92027B
92027B
92039
92039
92039
92039
92075
92154
92154
92154
92172
130
130
130
130
130
130
130
130
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,FR GRILLE | 14093 | 14093-1506 | 1 | ||
| BUMPER-FRONT | 39027 | 39027-0006 | 1 | ||
| GUARD,ENGINE | 55020 | 55020-0065 | 1 | ||
| GUARD,REAR GEAR BOX | 55020A | 55020-0105 | 1 | ||
| GUARD,FRONT SKID,F.BLACK | 55020B | 55020-0426-6Z | 1 | ||
| GUARD,FR | 55020C | 55020-2466 | 1 | ||
| COLLAR | 92027 | 92027-1354 | 1 | ||
| COLLAR | 92027A | 92027-1794 | 6 | ||
| COLLAR | 92027B | 92027-4020 | 12 | ||
| RIVET | 92039 | 92039-0865 | 11 | ||
| DAMPER,RUBBER | 92075 | 92075-261 | 2 | ||
| BOLT,FLANGED,10X16 | 92154 | 92154-0760 | 4 | ||
| SCREW,TAPPING,6X16 | 92172 | 92172-0739 | 2 | ||
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 16 | ||
| BOLT-FLANGED,8X14 | 130A | 130BA0814 | 1 |
