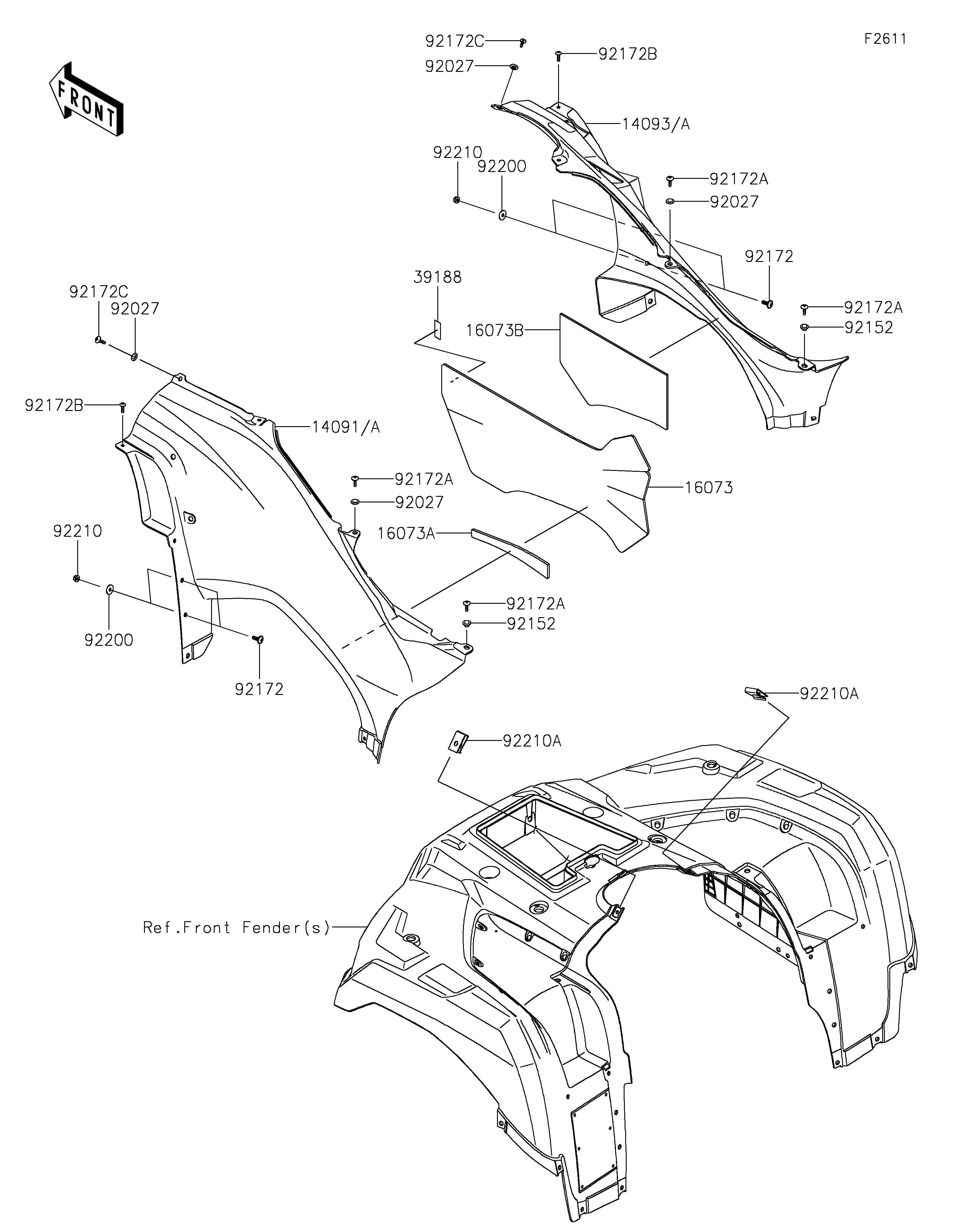

2026 BRUTE FORCE® 750 SE EPS - Side Covers

DOWNLOAD PDF
SELECT A NEW PART
14091
14091A
14093
14093A
16073
16073A
16073B
39188
92027
92027
92027
92027
92152
92152
92172
92172
92172A
92172A
92172A
92172A
92172B
92172B
92172C
92172C
92200
92200
92210
92210
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SIDE,LH,M.G.S.D.GREEN 14091 14091-0312-72Q 1
COVER,SIDE,LH,CAMOUFLAGE 14091A 14091-0312-72X 1
COVER,SIDE,RH,M.G.S.D.GREEN 14093 14093-1546-72Q 1
COVER,SIDE,RH,CAMOUFLAGE 14093A 14093-1546-72X 1
INSULATOR,SIDE COVER,LH 16073 16073-0723 1
INSULATOR,SIDE COVER,OVERLAP 16073A 16073-0807 1
INSULATOR,SIDE COVER,RH 16073B 16073-0808 1
TAPE,20X50 39188 39188-0601 1
COLLAR 92027 92027-4020 4
COLLAR,6.3X8.3X7.2 92152 92152-1865 2
SCREW,6X18 92172 92172-0002 4
SCREW,6X16 92172A 92172-0236 4
SCREW,5X18 92172B 92172-0428 2
SCREW,TAPPING,6X20 92172C 92172-0883 2
WASHER,6.5X20X1.6 92200 92200-0283 4
NUT,LOCK,FLANGED,6MM 92210 92210-0303 4
NUT,LEAF SPRING,6MM 92210A 92210-0624 2
