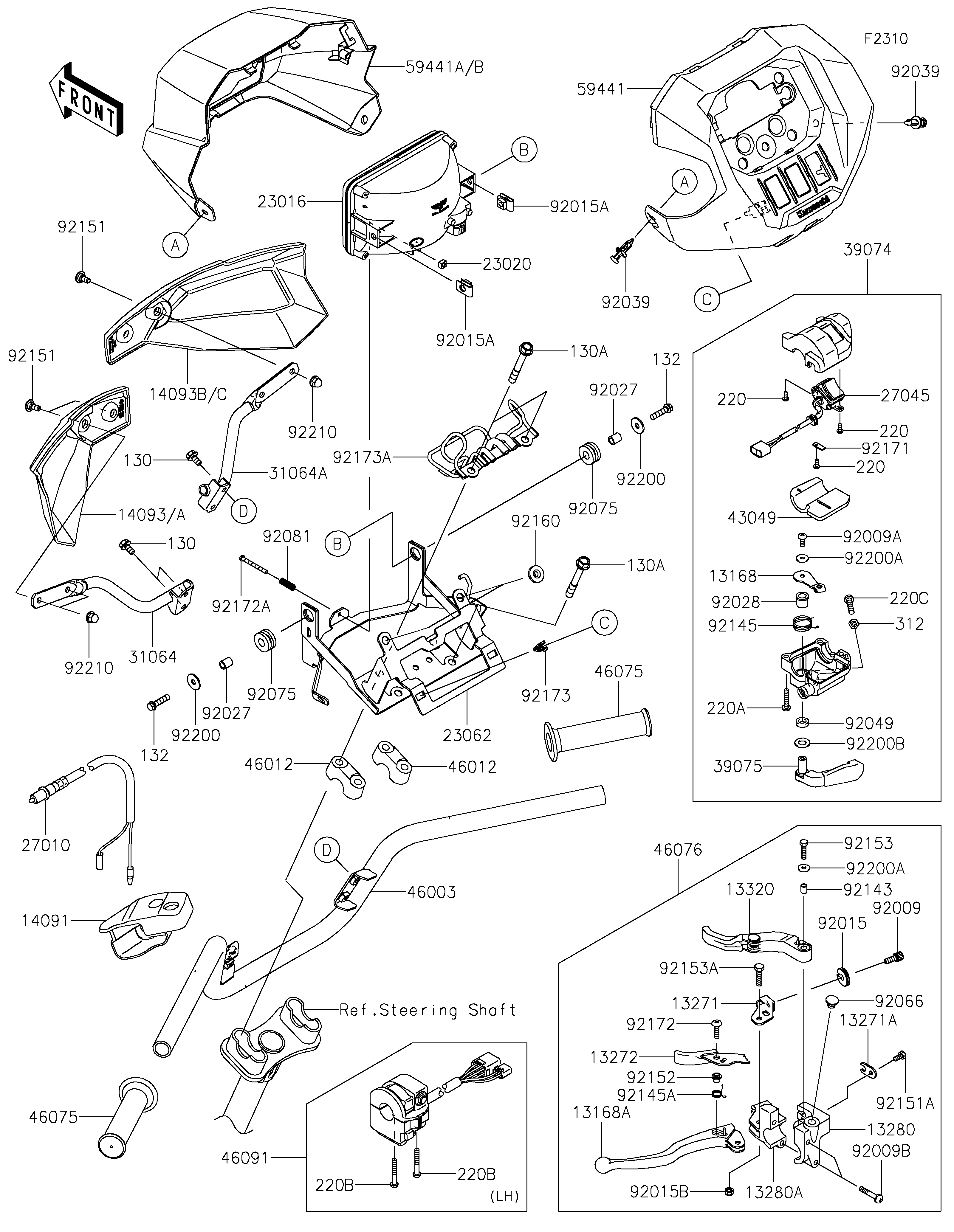

2026 BRUTE FORCE® 750 SE EPS - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13168
13168
13168A
13168A
13271
13271
13271A
13271A
13272
13272
13280
13280
13280A
13280A
13320
13320
14091
14091
14093
14093
14093A
14093A
14093B
14093B
14093C
14093C
23016
23016
23020
23020
23062
23062
27010
27010
27045
27045
31064
31064
31064A
31064A
39074
39074
39075
39075
43049
43049
46003
46003
46012
46012
46012
46012
46075
46075
46075
46075
46076
46076
46091
46091
59441
59441
59441A
59441A
59441B
59441B
92009
92009
92009A
92009A
92009B
92009B
92015
92015
92015A
92015A
92015A
92015A
92015B
92015B
92027
92027
92027
92027
92028
92028
92039
92039
92039
92039
92049
92049
92066
92066
92075
92075
92075
92075
92081
92081
92143
92143
92145
92145
92145A
92145A
92151
92151
92151
92151
92151A
92151A
92152
92152
92153
92153
92153A
92153A
92160
92160
92171
92171
92172
92172
92172A
92172A
92173
92173
92173A
92173A
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200B
92200B
92210
92210
92210
92210
130
130
130
130
130A
130A
130A
130A
132
132
132
132
220
220
220
220
220
220
220A
220A
220B
220B
220B
220B
220C
220C
312
312
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER 13168 13168-1715 1
LEVER,LH 13168A 13168-1736 1
PLATE,LOCK 13271 13271-1259 1
PLATE,WIRE OUTER STOPPER 13271A 13271-1636 1
PLATE,LEVER LOCK 13272 13272-3826 1
HOLDER,DIFF LOCK LEVER 13280 13280-1226 1
HOLDER,LEVER,LH 13280A 13280-1227 1
LEVER-ASSY,DIFF LOCK 13320 13320-0040 1
COVER,DIFF LOCK LEVER 14091 14091-1403 1
COVER,HAND,LH,F.EBONY 14093 14093-1516-45L 1
COVER,HAND,LH,M.G.S.D.GREEN 14093A 14093-1516-72Q 1
COVER,HAND,RH,F.EBONY 14093B 14093-1517-45L 1
COVER,HAND,RH,M.G.S.D.GREEN 14093C 14093-1517-72Q 1
LAMP-ASSY,WORK 23016 23016-0672 1
NUT,4MM,FOCUS ADJUST 23020 23020-018 1
BRACKET-COMP,HANDLE 23062 23062-1479 1
SWITCH,BRAKE 27010 27010-1294 1
SWITCH-ASSY 27045 27045-0010 1
PIPE-COMP,HAND COVER,LH 31064 31064-0766 1
PIPE-COMP,HAND COVER,RH 31064A 31064-0767 1
LEVER-ASSY-THROTTLE 39074 39074-0011 1
LEVER-THROTTLE 39075 39075-0032 1
PACKING 43049 43049-1088 1
HANDLE 46003 46003-0838 1
HOLDER-HANDLE 46012 46012-1168 2
GRIP 46075 46075-0065 2
LEVER-ASSY-GRIP,DIFF LOCK 46076 46076-0180 1
HOUSING-ASSY-CONTROL 46091 46091-0243 1
COVER,METER 59441 59441-0308 1
COVER,WORK LAMP,M.G.S.D.GREEN 59441A 59441-0310-72Q 1
COVER,WORK LAMP,CAMOUFLAGE 59441B 59441-0310-72X 1
SCREW,CABLE ADJUST,8MM 92009 92009-1435 1
SCREW 92009A 92009-1959 1
SCREW,6X30 92009B 92009-1961 2
NUT,CABLE ADJUST LOCK,8MM 92015 92015-1596 1
NUT,6MM 92015A 92015-1602 2
NUT 92015B 92015-1829 1
COLLAR,6.8X10X12 92027 92027-162 2
BUSHING 92028 92028-1986 1
RIVET 92039 92039-0865 2
SEAL-OIL 92049 92049-1578 1
PLUG,9.5X8,POLYETHYLENE 92066 92066-1077 1
DAMPER,10X24X12 92075 92075-1690 2
SPRING,FOCUS ADJUST 92081 92081-1896 1
COLLAR 92143 92143-1216 1
SPRING 92145 92145-1392 1
SPRING 92145A 92145-1429 1
BOLT,DISC PLATE,6MM 92151 92151-1799 4
BOLT,5X10 92151A 92151-1975 1
COLLAR 92152 92152-1176 1
BOLT,5X20 92153 92153-1129 1
BOLT 92153A 92153-1919 1
DAMPER 92160 92160-1613 2
CLAMP 92171 92171-1344 1
SCREW,5X20 92172 92172-0078 1
SCREW,4X40 92172A 92172-1092 1
CLAMP 92173 92173-1423 2
CLAMP 92173A 92173-2656 1
WASHER,6.5X20X1.6 92200 92200-0283 2
WASHER 92200A 92200-1558 2
WASHER 92200B 92200-1559 1
NUT,CAP,6MM 92210 92210-0003 4
BOLT-FLANGED,6X12 130 130BA0612 4
BOLT-FLANGED,8X60 130A 130CA0860 4
BOLT-FLANGED-SMALL,6X25 132 132BA0625 2
SCREW-PAN-CROS,3X8 220 220AA0308 3
SCREW-PAN-CROS,5X25 220A 220AB0525 3
SCREW-PAN-CROS,5X35 220B 220AB0535 2
SCREW-PAN-CROS,6X25 220C 220AB0625 1
NUT-HEX,6MM,BLACK 312 312AB0600 1
