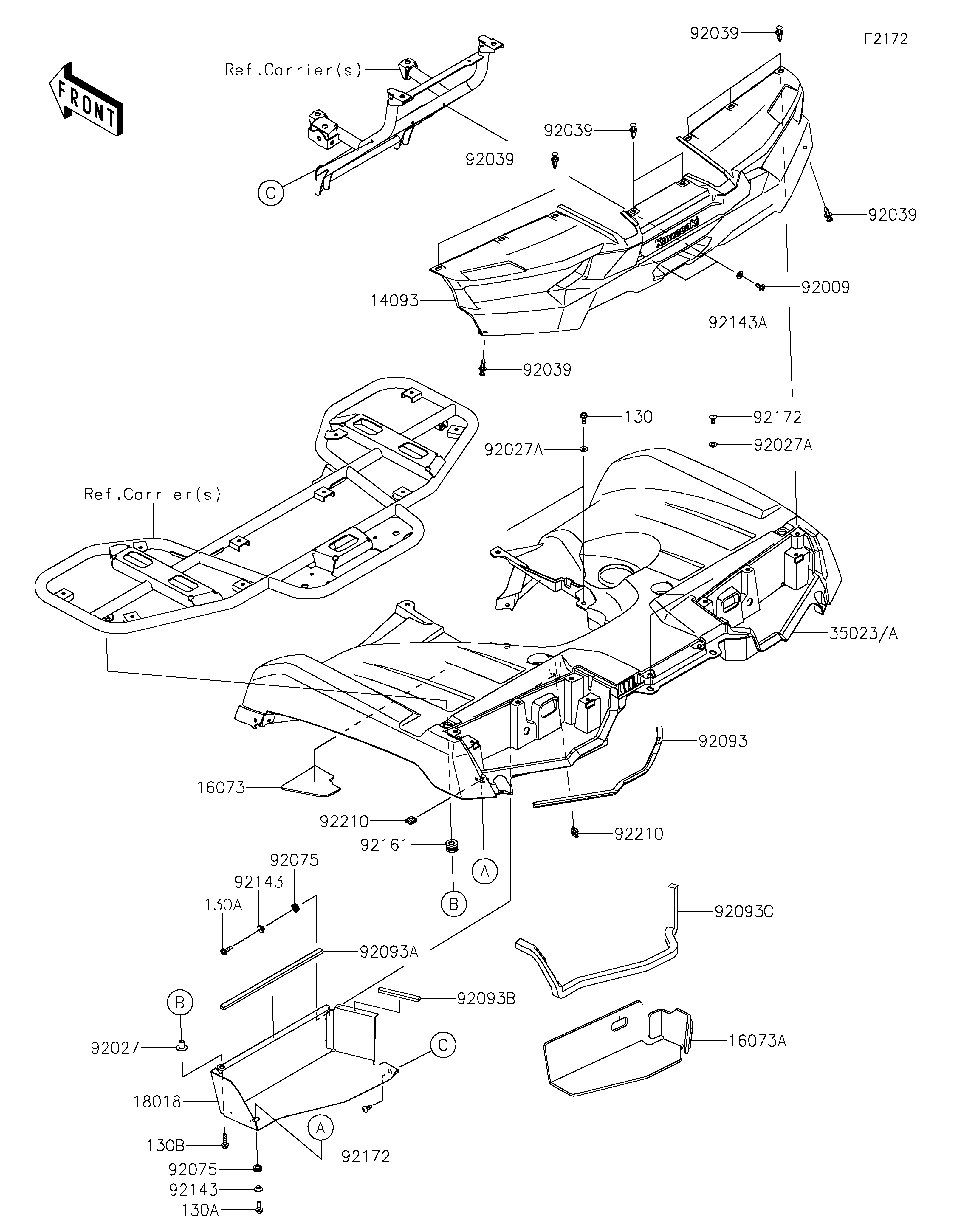

2026 BRUTE FORCE® 750 SE EPS - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
14093
16073
16073A
18018
35023
35023A
92009
92027
92027A
92027A
92039
92039
92039
92039
92039
92075
92075
92093
92093A
92093B
92093C
92143
92143
92143A
92161
92172
92172
92210
92210
130
130A
130A
130B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,RR 14093 14093-1509 1
INSULATOR 16073 16073-0926 1
INSULATOR,HEAT GUARD 16073A 16073-0951 1
PLATE-HEAT GUARD 18018 18018-0649 1
FENDER-REAR,M.G.S.D.GREEN 35023 35023-0499-72Q 1
FENDER-REAR,CAMOUFLAGE 35023A 35023-0499-72X 1
SCREW,TAPPING,6X16 92009 92009-1166 2
COLLAR,L=16.1 92027 92027-1847 2
COLLAR 92027A 92027-4020 4
RIVET 92039 92039-0865 10
DAMPER 92075 92075-1947 2
SEAL,10X8X370 92093 92093-0801 1
SEAL,10X6X285 92093A 92093-0802 1
SEAL,10X6X90 92093B 92093-0803 1
SEAL,15X15X615 92093C 92093-0804 1
COLLAR 92143 92143-1057 2
COLLAR 92143A 92143-1087 2
DAMPER 92161 92161-0106 2
SCREW,TAPPING,6X16 92172 92172-0739 3
NUT 92210 92210-0754 2
BOLT-FLANGED,6X16 130 130BA0616 2
BOLT-FLANGED,6X18 130A 130BA0618 2
BOLT-FLANGED,6X25 130B 130BA0625 2
