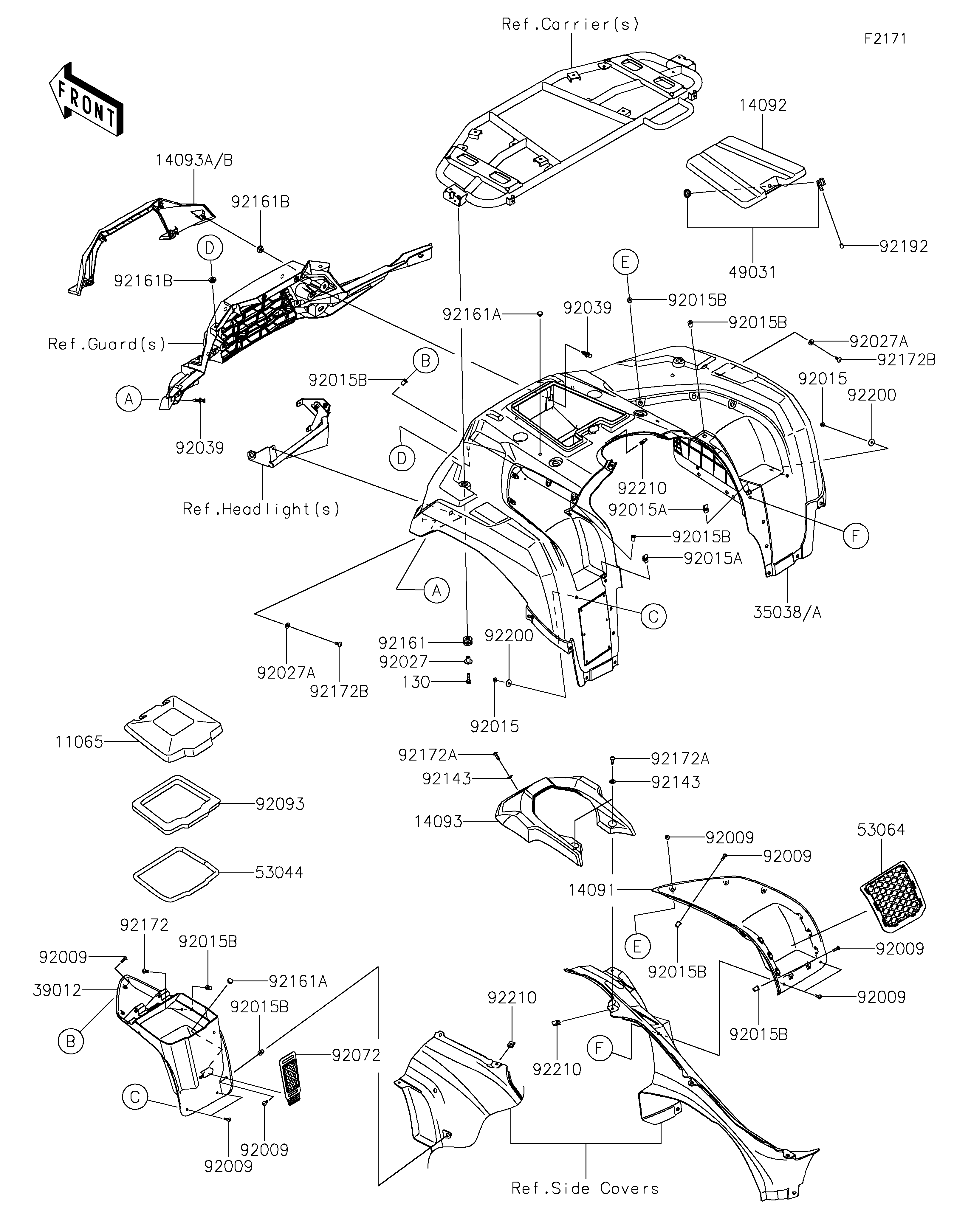

2026 BRUTE FORCE® 750 SE EPS - Front Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11065
14091
14092
14093
14093A
14093B
35038
35038A
39012
49031
53044
53064
92009
92009
92009
92009
92009
92009
92009
92015
92015
92015A
92015A
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92015B
92027
92027A
92027A
92039
92039
92072
92093
92143
92143
92161
92161A
92161A
92161B
92161B
92172
92172A
92172A
92172B
92172B
92192
92200
92200
92210
92210
92210
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STORAGE,F.BLACK 11065 11065-0194-6Z 1
COVER,POCKET,RH,F.BLACK 14091 14091-0136-6Z 1
COVER,STORAGE BOX 14092 14092-0180 1
COVER,TOP 14093 14093-1508 1
COVER,FR,M.G.S.D.GREEN 14093A 14093-1518-72Q 1
COVER,FR,CAMOUFLAGE 14093B 14093-1518-72X 1
FENDER-FRONT,M.G.S.D.GREEN 35038 35038-0049-72Q 1
FENDER-FRONT,CAMOUFLAGE 35038A 35038-0049-72X 1
CASE-STORAGE,F.BLACK 39012 39012-0015-6Z 1
LATCH 49031 49031-0004 1
TRIM,L=700 53044 53044-0037 1
NET-CARGO 53064 53064-0002 1
SCREW,5X18 92009 92009-1655 14
NUT,FLANGED,5MM 92015 92015-1259 2
NUT,5MM 92015A 92015-1710 2
NUT,WELL,5MM 92015B 92015-1757 15
COLLAR,L=16.1 92027 92027-1847 2
COLLAR 92027A 92027-4020 2
RIVET 92039 92039-0865 4
BAND,STORAGE 92072 92072-0095 1
SEAL,STORAGE CAP 92093 92093-0568 1
COLLAR 92143 92143-1087 3
DAMPER 92161 92161-0106 2
DAMPER 92161A 92161-0586 2
DAMPER 92161B 92161-1531 8
SCREW,5X18 92172 92172-0428 3
SCREW,TAPPING,6X20 92172A 92172-0488 3
SCREW,TAPPING,6X16 92172B 92172-0739 2
TUBE,4.8X7.9X10 92192 92192-2759 1
WASHER,5.5X20X1.2 92200 92200-0284 2
NUT,LEAF SPRING,6MM 92210 92210-0624 3
BOLT-FLANGED,6X25 130 130BA0625 2
