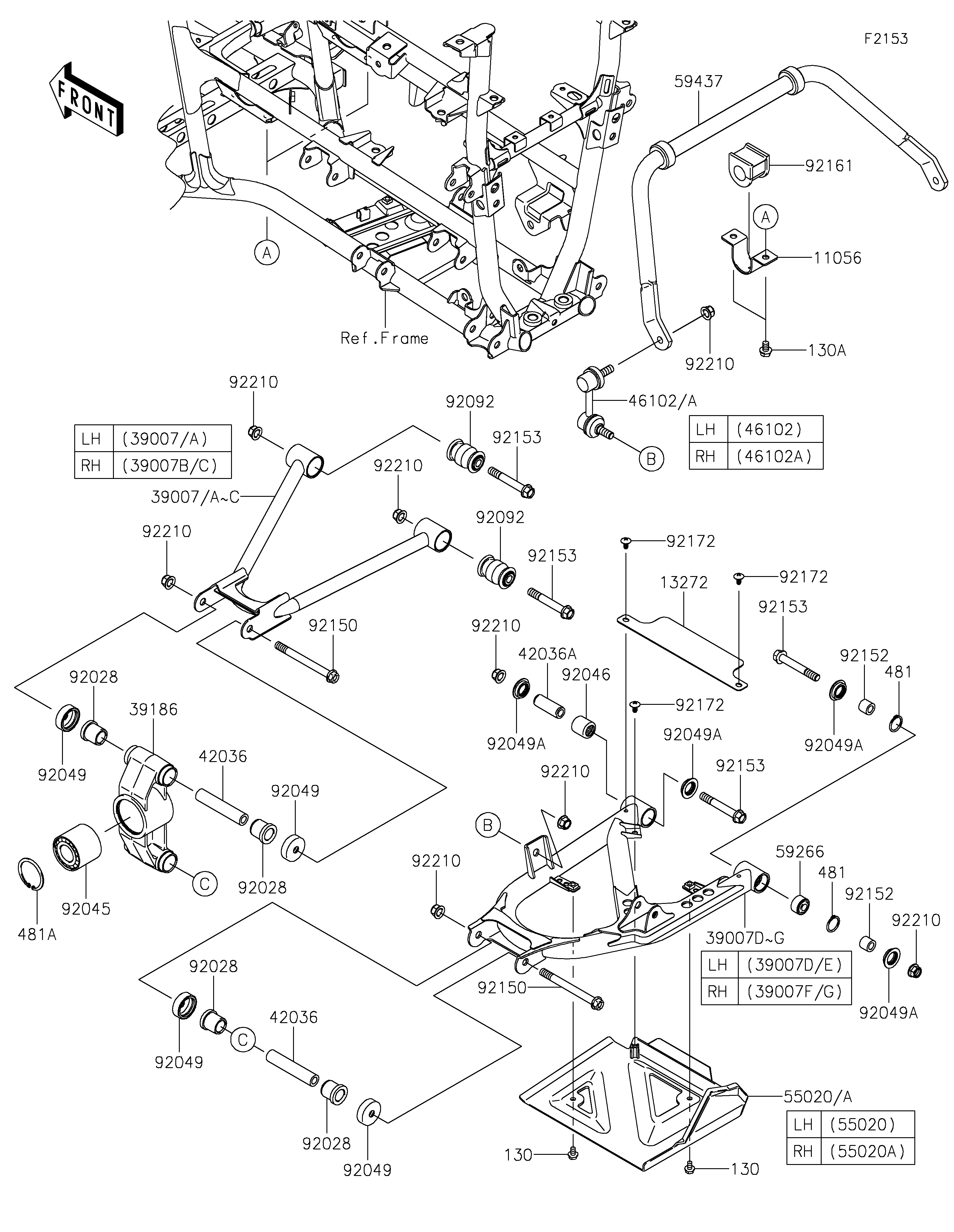

2026 BRUTE FORCE® 750 SE EPS - Rear Suspension

DOWNLOAD PDF
SELECT A NEW PART
11056
13272
39007
39007A
39007B
39007C
39007D
39007E
39007F
39007G
39186
42036
42036
42036A
46102
46102A
55020
55020A
59266
59437
92028
92028
92028
92028
92045
92046
92049
92049
92049
92049
92049A
92049A
92049A
92049A
92092
92092
92150
92150
92152
92152
92153
92153
92153
92153
92161
92172
92172
92172
92210
92210
92210
92210
92210
92210
92210
92210
130
130
130A
481
481
481A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,STABILIZER 11056 11056-1062 2
PLATE,RR ARM 13272 13272-0919 2
ARM-SUSP,RR,UPP,LH,BLACK 39007 39007-0170-10 1
ARM-SUSP,RR,UPP,LH,P.GOLD 39007A 39007-0170-66X 1
ARM-SUSP,RR,UPP,RH,BLACK 39007B 39007-0171-10 1
ARM-SUSP,RR,UPP,RH,P.GOLD 39007C 39007-0171-66X 1
ARM-SUSP,RR,LWR,LH,BLACK 39007D 39007-0172-10 1
ARM-SUSP,RR,LWR,LH,P.GOLD 39007E 39007-0172-66X 1
ARM-SUSP,RR,LWR,RH,BLACK 39007F 39007-0173-10 1
ARM-SUSP,RR,LWR,RH,P.GOLD 39007G 39007-0173-66X 1
KNUCKLE,RR 39186 39186-0099 2
SLEEVE,10X17X85.6 42036 42036-1190 4
SLEEVE 42036A 42036-1376 2
ROD,STABILIZER,LH 46102 46102-0100 1
ROD,STABILIZER,RH 46102A 46102-0101 1
GUARD,REAR ARM,LH,F.BLACK 55020 55020-0972-6Z 1
GUARD,REAR ARM,RH,F.BLACK 55020A 55020-0973-6Z 1
JOINT-BALL 59266 59266-0013 2
STABILIZER,RR 59437 59437-0307 1
BUSHING 92028 92028-1466 8
BEARING-BALL,25BWD02ACA68 92045 92045-0094 2
BEARING-NEEDLE 92046 92046-1046 2
SEAL-OIL,KNUCKLE 92049 92049-1198 8
SEAL-OIL,MHA17245.7F 92049A 92049-1223 8
BUSHING-RUBBER 92092 92092-0004 4
BOLT,FLANGED,10X105 92150 92150-1624 4
COLLAR,10X17X14.5 92152 92152-1455 4
BOLT,FLANGED,10X70 92153 92153-1606 8
DAMPER 92161 92161-0265 2
SCREW,6X12 92172 92172-0884 6
NUT,LOCK,FLANGED,10MM 92210 92210-0276 16
BOLT-FLANGED,6X10 130 130BA0610 4
BOLT-FLANGED,8X12 130A 130BA0812 4
CIRCLIP-TYPE-C,24MM 481 481J2400 4
CIRCLIP-TYPE-C,52MM 481A 481J5200 2
