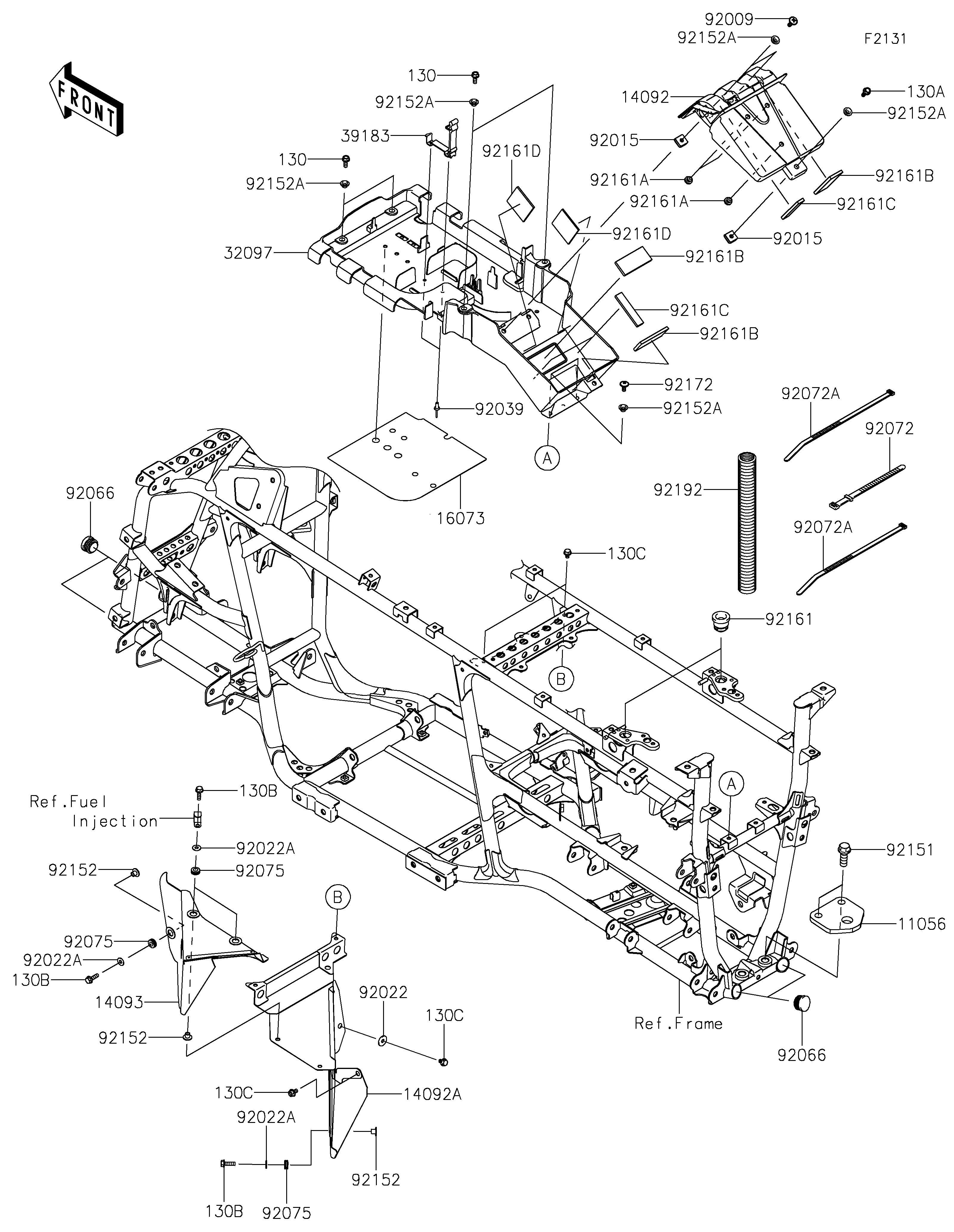

2026 BRUTE FORCE® 750 SE EPS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11056
14092
14092A
14093
16073
32097
39183
92009
92015
92015
92022
92022A
92022A
92022A
92039
92066
92066
92072
92072A
92072A
92075
92075
92075
92151
92152
92152
92152
92152A
92152A
92152A
92152A
92152A
92161
92161A
92161A
92161B
92161B
92161B
92161C
92161C
92161D
92161D
92172
92192
130
130
130A
130B
130B
130B
130C
130C
130C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TRAILER HITCH 11056 11056-0299 1
COVER,BATTERY 14092 14092-0189 1
COVER,HEAT GUARD,FR 14092A 14092-0897 1
COVER,HEAT GUARD 14093 14093-0021 1
INSULATOR,BATTERY CASE 16073 16073-0809 1
CASE-BATTERY 32097 32097-0577 1
BAND-ASSY,TOOL BAG 39183 39183-1065 1
SCREW,6X20 92009 92009-1289 2
NUT,6MM 92015 92015-1094 3
WASHER,6.5X20X1.6 92022 92022-1804 1
WASHER,6.2X15X1.2 92022A 92022-2373 4
RIVET,4.8MM 92039 92039-3719 2
PLUG 92066 92066-0036 4
BAND,L=186 92072 92072-056 1
BAND,L=292.1 92072A 92072-3509 2
DAMPER 92075 92075-2097 4
BOLT,FLANGED,12X35 92151 92151-1903 2
COLLAR,6.3X8.3X9.2 92152 92152-0237 4
COLLAR,6.3X8.3X7.2 92152A 92152-1865 9
DAMPER 92161 92161-0048 2
DAMPER 92161A 92161-1084 3
DAMPER,30X70X5 92161B 92161-1127 3
DAMPER,15X70X5 92161C 92161-1380 3
DAMPER,50X50X3 92161D 92161-1386 2
SCREW,6X14 92172 92172-0401 2
TUBE,CORRUGATED,25.5X32.25X300 92192 92192-1042 1
BOLT-FLANGED,6X16 130 130BA0616 4
BOLT-FLANGED,6X18 130A 130BA0618 1
BOLT-FLANGED,6X20 130B 130BA0620 4
BOLT-FLANGED,6X10 130C 130BD0610 4
