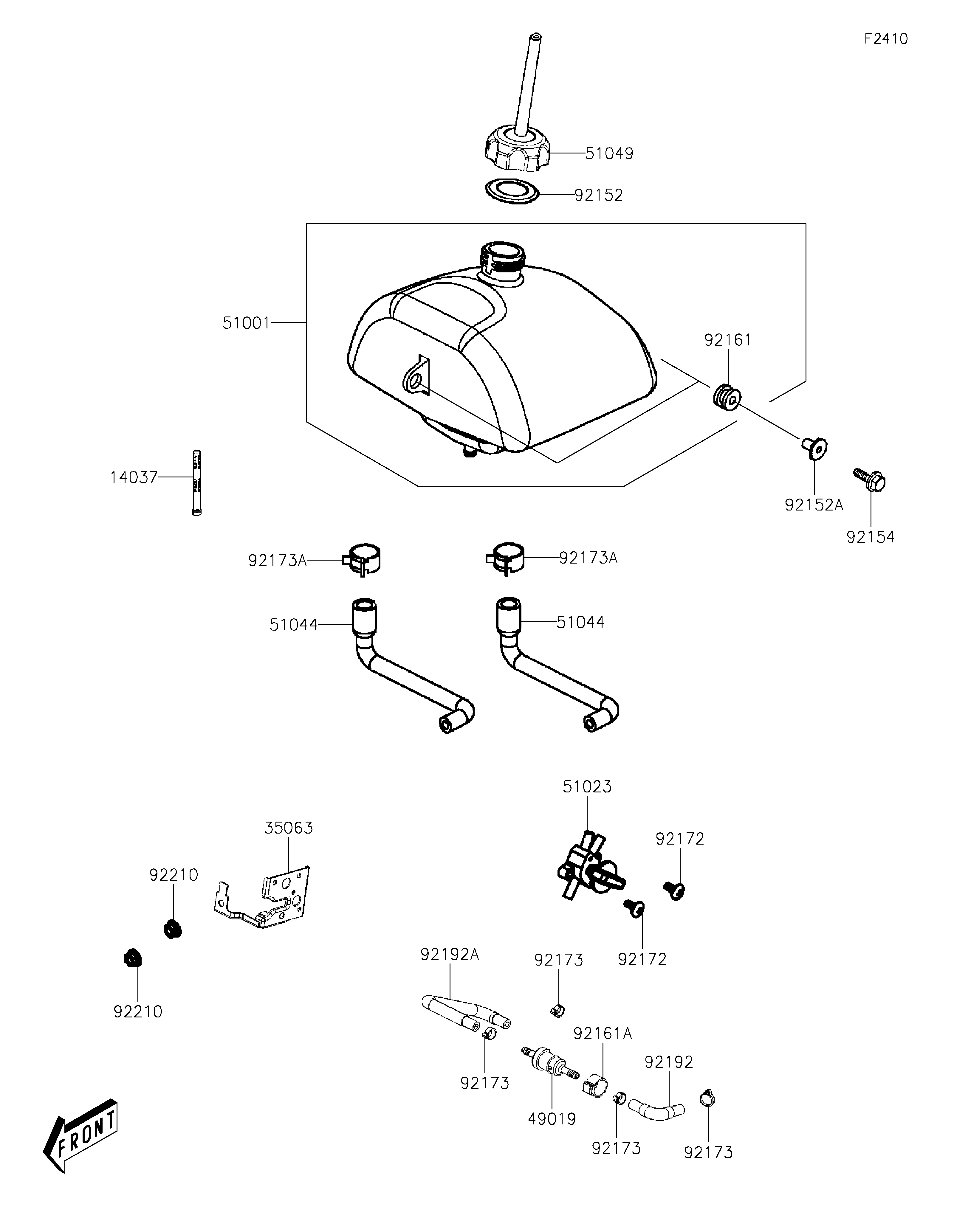

Parts Diagrams |
14037
35063
49019
51001
51023
51044
51044
51049
92152
92152A
92154
92161
92161A
92172
92172
92173
92173
92173
92173
92173A
92173A
92192
92192A
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREEN | 14037 | 14037-Y001 | 1 | ||
| STAY,FUEL COCK | 35063 | 35063-Y060 | 1 | ||
| FILTER-FUEL | 49019 | 49019-Y005 | 1 | ||
| TANK-COMP-FUEL | 51001 | 51001-Y009 | 1 | ||
| TAP-ASSY | 51023 | 51023-Y007 | 1 | ||
| TUBE-ASSY,FUEL TANK | 51044 | 51044-Y024 | 2 | ||
| CAP-TANK | 51049 | 51049-Y002 | 1 | ||
| COLLAR | 92152 | 92152-Y001 | 1 | ||
| COLLAR | 92152A | 92152-Y013 | 2 | ||
| BOLT,6X20 | 92154 | 92154-Y057 | 2 | ||
| DAMPER | 92161 | 92161-Y001 | 2 | ||
| DAMPER,FUEL FILTER | 92161A | 92161-Y068 | 1 | ||
| SCREW,5X16 | 92172 | 92172-Y067 | 2 | ||
| CLAMP,12.5MM | 92173 | 92173-Y043 | 4 | ||
| CLAMP,12MM | 92173A | 92173-Y107 | 2 | ||
| TUBE,FUEL | 92192 | 92192-Y089 | 1 | ||
| TUBE,FUEL | 92192A | 92192-Y090 | 1 | ||
| NUT,6MM | 92210 | 92210-Y027 | 2 |
| SCREEN | |
| REF # | 14037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAY,FUEL COCK | |
| REF # | 35063 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILTER-FUEL | |
| REF # | 49019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TANK-COMP-FUEL | |
| REF # | 51001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TAP-ASSY | |
| REF # | 51023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-ASSY,FUEL TANK | |
| REF # | 51044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP-TANK | |
| REF # | 51049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92152A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X20 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FUEL FILTER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,12.5MM | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,12MM | |
| REF # | 92173A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,FUEL | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,FUEL | |
| REF # | 92192A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
