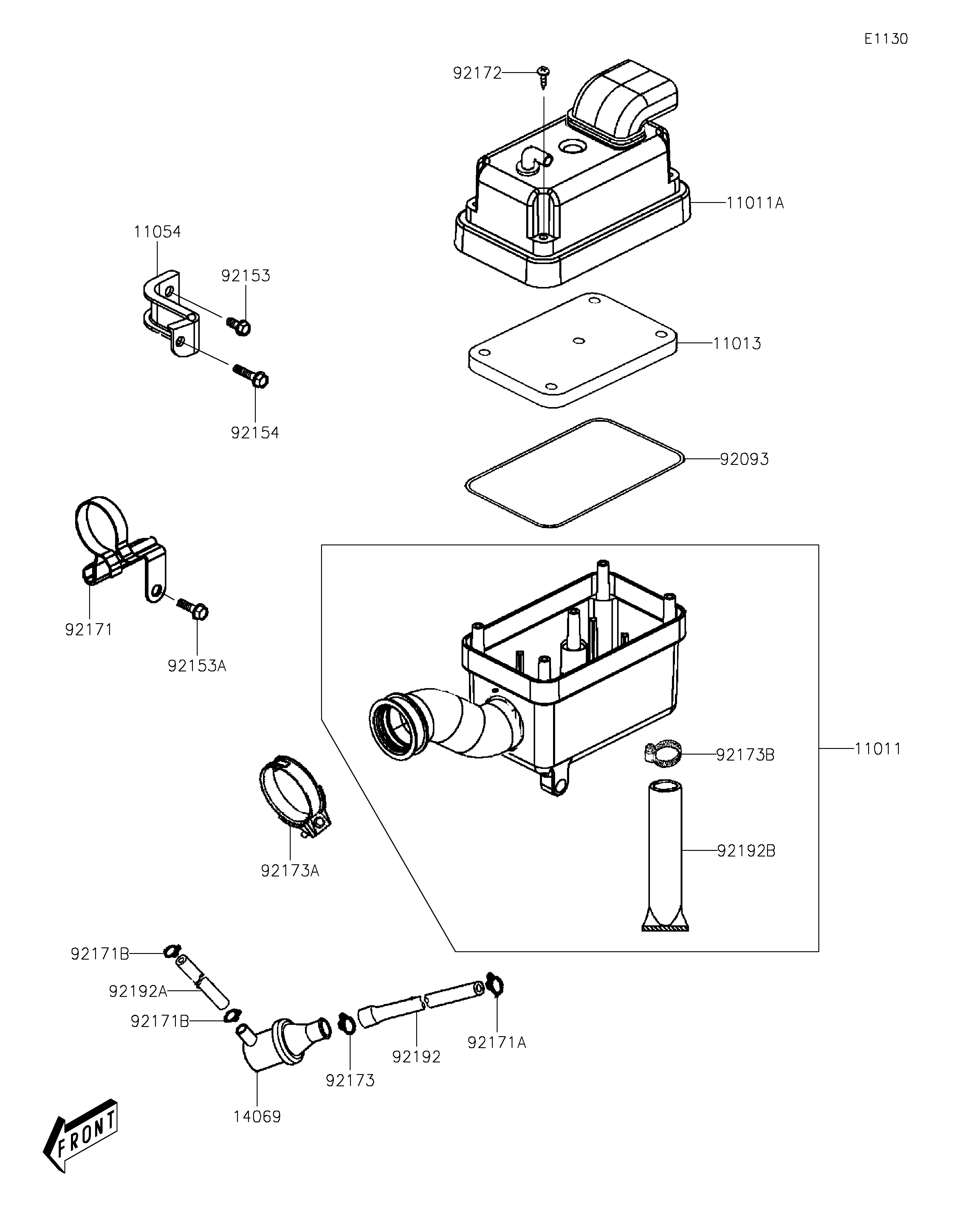

2026 KFX50 - Air Cleaner

DOWNLOAD PDF
SELECT A NEW PART
11011
11011A
11013
11054
14069
92093
92153
92153A
92154
92171
92171A
92171B
92171B
92172
92173
92173A
92173B
92192
92192A
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CASE-AIR FILTER,LWR 11011 11011-Y003 1
CASE-AIR FILTER,UPP 11011A 11011-Y004 1
ELEMENT-AIR FILTER 11013 11013-Y001 1
BRACKET 11054 11054-Y002 1
BREATHER 14069 14069-Y002 1
SEAL,AIR FILTER 92093 92093-Y002 1
BOLT,FLANGE,6X12 92153 92153-Y023 1
BOLT,FLANGE,6X22 92153A 92153-Y026 1
BOLT,FLANGE,6X25 92154 92154-Y130 1
CLAMP 92171 92171-Y007 1
CLAMP 92171A 92171-Y011 1
CLAMP 92171B 92171-Y012 2
SCREW,5X20 92172 92172-Y018 5
CLAMP,BREATHER TUBE 92173 92173-Y100 1
CLAMP,44MM 92173A 92173-Y101 1
CLAMP 92173B 92173-Y102 1
TUBE 92192 92192-Y025 1
TUBE 92192A 92192-Y026 1
TUBE,DRAIN 92192B 92192-Y027 1
