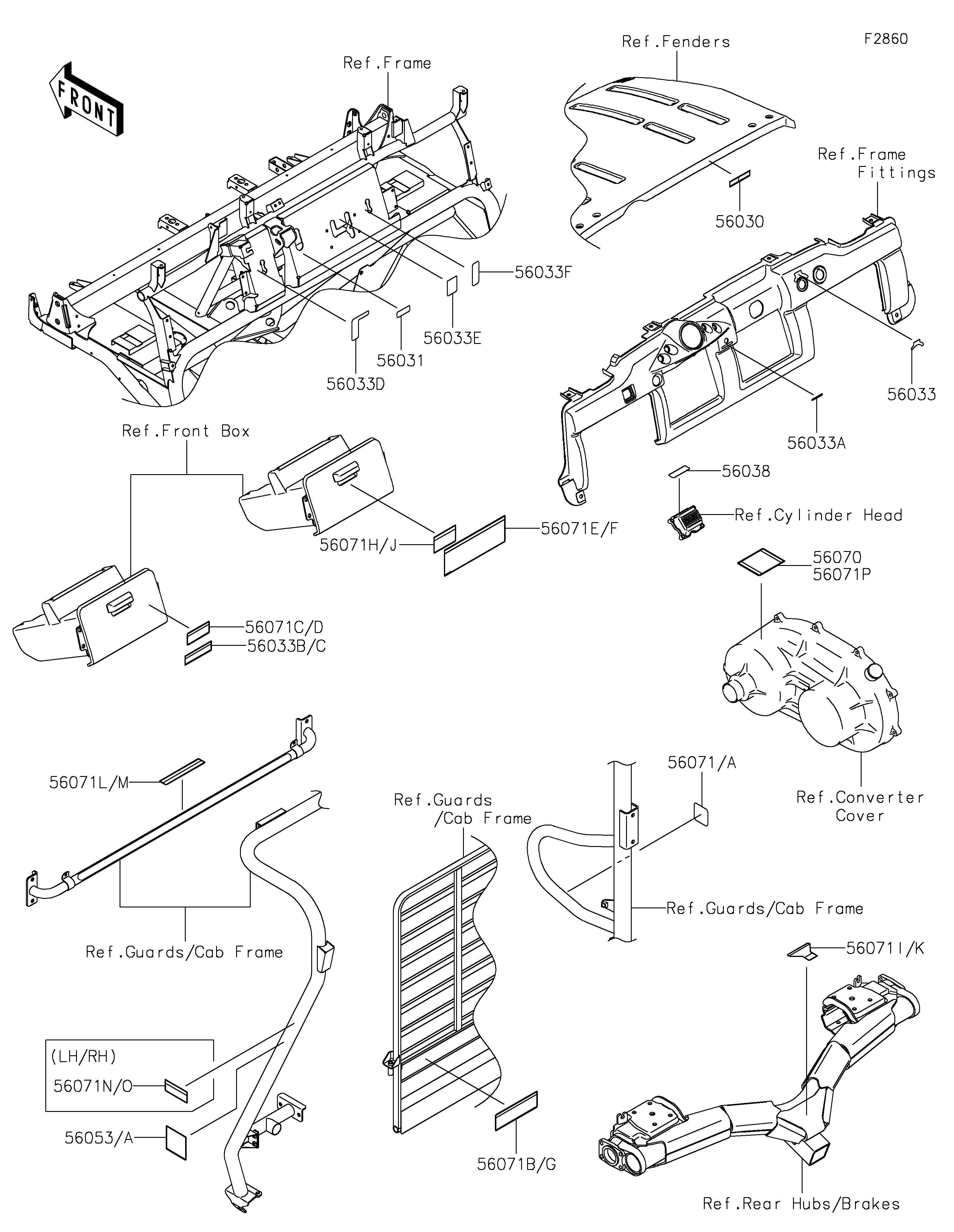

2026 MULE™ 4010 TRANS4x4® - Labels

DOWNLOAD PDF
SELECT A NEW PART
56030
56030
56031
56031
56033
56033
56033A
56033A
56033B
56033B
56033D
56033D
56033E
56033E
56033F
56033F
56038
56038
56053
56053
56070
56070
56071
56071
56071B
56071B
56071C
56071C
56071E
56071E
56071H
56071H
56071I
56071I
56071M
56071M
56071O
56071O
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LABEL,OPERATING HOOD 56030 56030-1563 1
LABEL-MANUAL,BRAKE FLUID LEVEL 56031 56031-1818 1
LABEL-MANUAL,IGNITION 56033 56033-0212 1
LABEL-MANUAL,POWER STEERING 56033A 56033-0213 1
LABEL-MANUAL,SHIFT NOTICE 56033B 56033-0822 1
LABEL-MANUAL,DIFF MODE 56033D 56033-1183 1
LABEL-MANUAL,SHIFT 56033E 56033-1186 1
LABEL-MANUAL,2WD/4WD 56033F 56033-1187 1
LABEL-BRAND 56038 56038-2782 1
LABEL-SPECIFICATION,TIRE 56053 56053-1631 1
LABEL-WARNING,HOT SURFACES 56070 56070-0051 1
LABEL-WARNING,GASOLINE 56071 56071-0588 1
LABEL-WARNING,CARGO BED,4P 56071B 56071-0637 1
LABEL-WARNING,CARGO BED 56071C 56071-0638 1
LABEL-WARNING,GENERAL 56071E 56071-0645 1
LABEL-WARNING,HOOD CAUTION 56071H 56071-0894 1
LABEL-WARNING,TRAILER HITCH 56071I 56071-0895 1
LABEL-WARNING,REAR SEAT 56071M 56071-0899 1
LABEL-WARNING,HAND CLEARANCE 56071O 56071-0901 2
