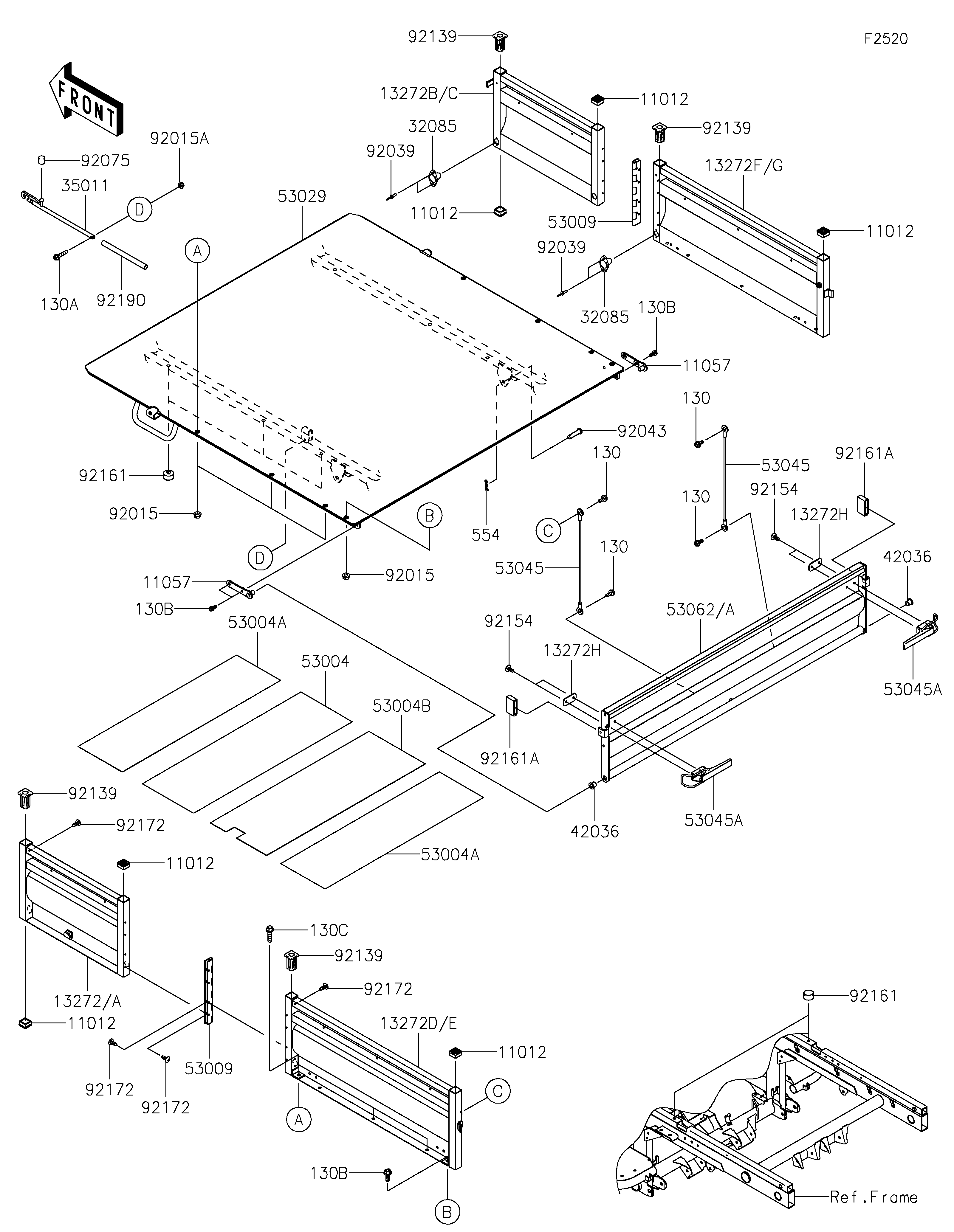

2026 MULE™ 4010 TRANS4x4® - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11012
11012
11012
11012
11057
11057
13272
13272A
13272B
13272C
13272D
13272E
13272F
13272G
13272H
13272H
32085
32085
35011
42036
42036
53004
53004A
53004A
53004B
53009
53009
53029
53045
53045
53045A
53045A
53062
53062A
92015
92015
92015A
92039
92039
92043
92075
92139
92139
92139
92139
92154
92154
92161
92161
92161A
92161A
92172
92172
92172
92172
92190
130
130
130
130
130A
130B
130B
130B
130C
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1784 6
BRACKET,TAIL GATE 11057 11057-1623 2
PLATE,SIDE,FR,LH,D.R.RED 13272 13272-2896-16M 1
PLATE,SIDE,FR,LH,T.GREEN 13272A 13272-2896-42T 1
PLATE,SIDE,FR,RH,D.R.RED 13272B 13272-2897-16M 1
PLATE,SIDE,FR,RH,T.GREEN 13272C 13272-2897-42T 1
PLATE,SIDE,RR,LH,D.R.RED 13272D 13272-2898-16M 1
PLATE,SIDE,RR,LH,T.GREEN 13272E 13272-2898-42T 1
PLATE,SIDE,RR,RH,D.R.RED 13272F 13272-2899-16M 1
PLATE,SIDE,RR,RH,T.GREEN 13272G 13272-2899-42T 1
PLATE 13272H 13272-7516 2
STOPPER 32085 32085-7501 4
STAY,CARRIER STOPPER 35011 35011-1648 1
SLEEVE 42036 42036-0839 2
MAT,CARRIER 53004 53004-0639 1
MAT,CARRIER 53004A 53004-0640 2
MAT,CARRIER 53004B 53004-0641 1
HINGE 53009 53009-0031 2
CARRIER,BASE PLATE,BLACK 53029 53029-0366-10 1
HOOK-ASSY,CABLE 53045 53045-0030 2
HOOK-ASSY 53045A 53045-0033 2
GATE-TAIL,D.R.RED 53062 53062-0029-16M 1
GATE-TAIL,T.GREEN 53062A 53062-0029-42T 1
NUT,FLANGED,8MM 92015 92015-1014 8
NUT,LOCK,FLANGED,6MM 92015A 92015-1675 1
RIVET 92039 92039-1150 8
PIN,12X65 92043 92043-1428 2
DAMPER 92075 92075-1817 1
BUSHING,REAR SCREEN 92139 92139-7501 4
BOLT,SOCKET,6X14 92154 92154-4238 4
DAMPER 92161 92161-7510 8
DAMPER 92161A 92161-7519 2
SCREW,TAPPING,6X16 92172 92172-0739 20
TUBE,13X16X200 92190 92190-1401 1
BOLT-FLANGED,6X10 130 130BA0610 4
BOLT-FLANGED,6X30 130A 130BA0630 1
BOLT-FLANGED,8X20 130B 130BA0820 6
BOLT-FLANGED,8X30 130C 130BA0830 6
PIN-SNAP,12MM 554 554DA1200 2
