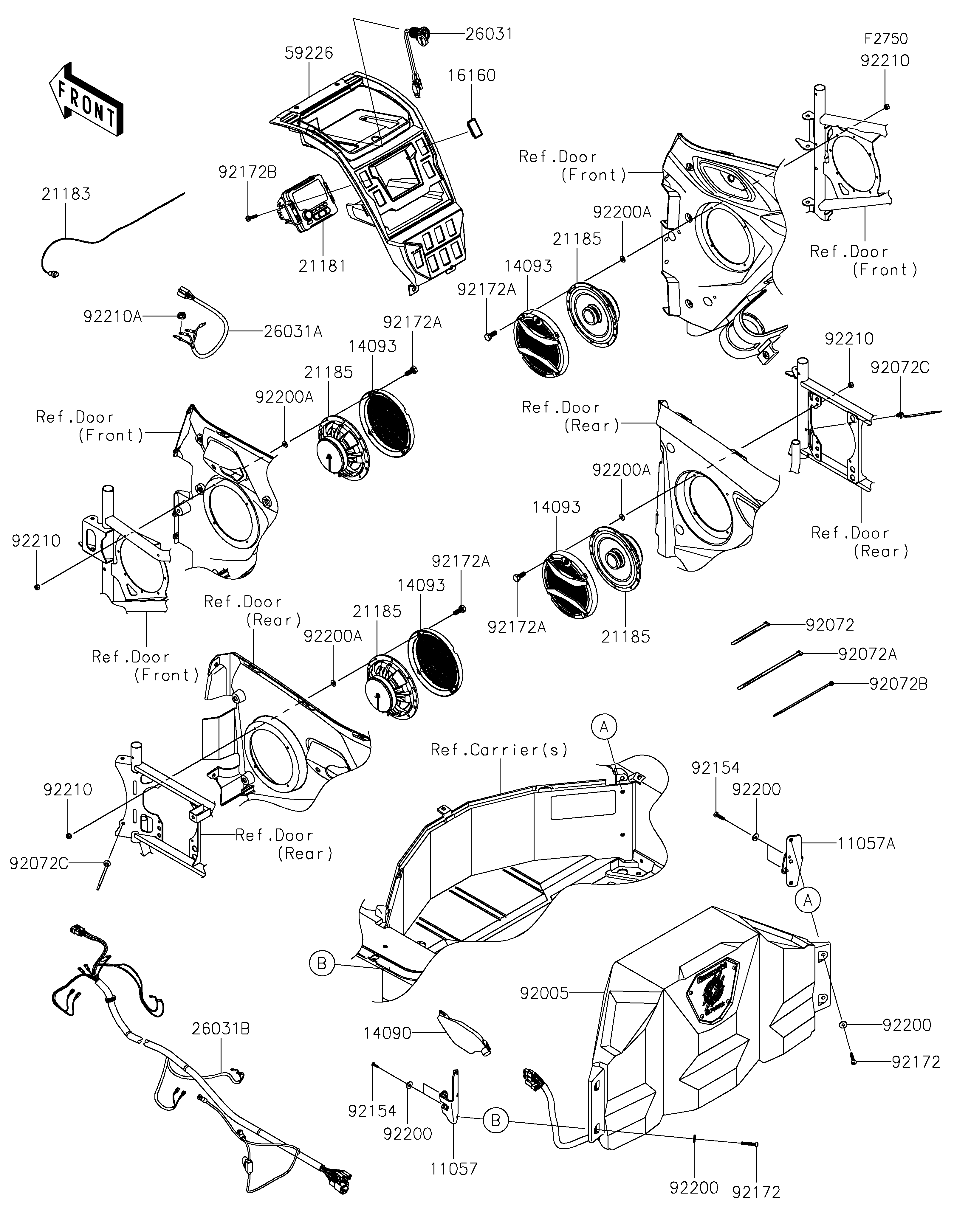

2026 TERYX® KRX4™ 1000 BLACKOUT EDITION - Other(Audio System)

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
14090
14093
14093
14093
14093
16160
21181
21183
21185
21185
21185
21185
26031
26031A
26031B
59226
92005
92072
92072A
92072B
92072C
92072C
92154
92154
92172
92172
92172A
92172A
92172A
92172A
92172B
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92210
92210
92210
92210
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SUBWOOFER,LH 11057 11057-4017 1
BRACKET,SUBWOOFER,RH 11057A 11057-4018 1
COVER,COUPLER 14090 14090-1611 1
COVER,SPEAKER GRILLE 14093 14093-1058 4
BODY,SWITCH COVER 16160 16160-0811 4
AMPLIFIER,RADIO 21181 21181-0019 1
ANTENNA,AM/FM RADIO 21183 21183-0016 1
SPEAKER 21185 21185-0015 4
HARNESS,USB 26031 26031-2812 1
HARNESS,RADIO 26031A 26031-2814 1
HARNESS,MAIN,AUDIO 26031B 26031-3847 1
PANEL-CONTROL,DASH COVER 59226 59226-0759 1
FITTING,SUBWOOFER ENCLOSURE 92005 92005-1417 1
BAND,L=123 92072 92072-030 3
BAND,L=218 92072A 92072-032 2
BAND,L=188 92072B 92072-1239 24
BAND,OS170-FT7(BLACK) 92072C 92072-1414 2
BOLT,6X16 92154 92154-4102 4
SCREW,6X35 92172 92172-1351 4
SCREW,4X25 92172A 92172-1355 16
SCREW 92172B 92172-1440 4
WASHER,6.5X18X1.5 92200 92200-2337 8
WASHER 92200A 92200-2343 16
NUT,M4 92210 92210-1785 16
NUT,FLANGED 92210A 92210-1807 1
