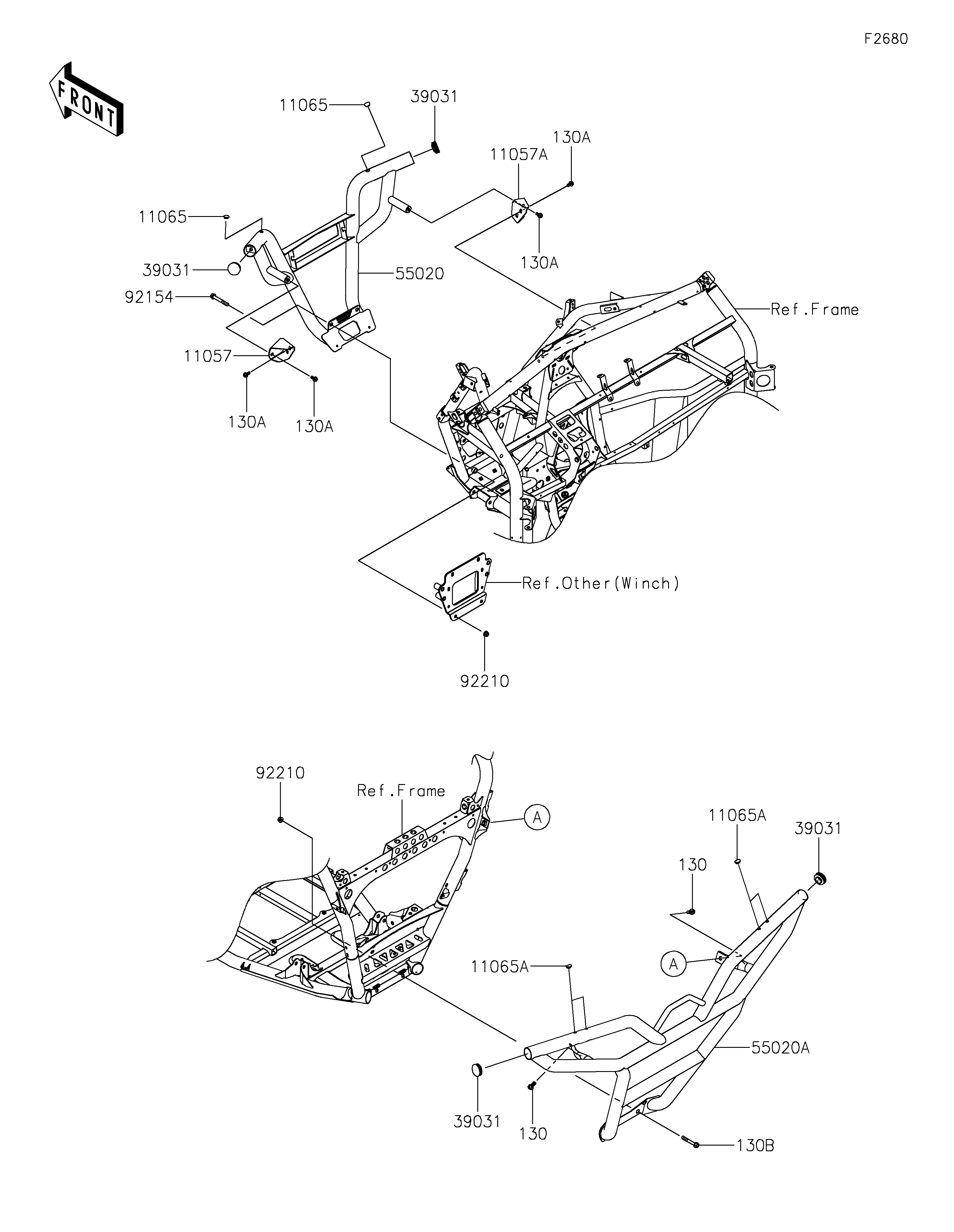

2026 TERYX® KRX4™ 1000 BLACKOUT EDITION - Guard(s)
11057
11057A
11065
11065
11065A
11065A
39031
39031
39031
39031
55020
55020A
92154
92210
92210
130
130
130A
130A
130A
130A
130B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LH | 11057 | 11057-4169 | 1 | ||
| BRACKET,RH | 11057A | 11057-4170 | 1 | ||
| CAP,HOLE PLUG | 11065 | 11065-1349 | 2 | ||
| CAP,HOLE PLUG | 11065A | 11065-1350 | 4 | ||
| CAP-END | 39031 | 39031-0021 | 4 | ||
| GUARD,FR,T.BLACK | 55020 | 55020-2318-388 | 1 | ||
| GUARD,RR,T.BLACK | 55020A | 55020-2319-388 | 1 | ||
| BOLT,FLANGED,10X70 | 92154 | 92154-7404 | 2 | ||
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1080 | 4 | ||
| BOLT-FLANGED,10X20 | 130 | 130BA1020 | 2 | ||
| BOLT-FLANGED,8X16 | 130A | 130CA0816 | 6 | ||
| BOLT-FLANGED,10X65 | 130B | 130CA1065 | 2 |
