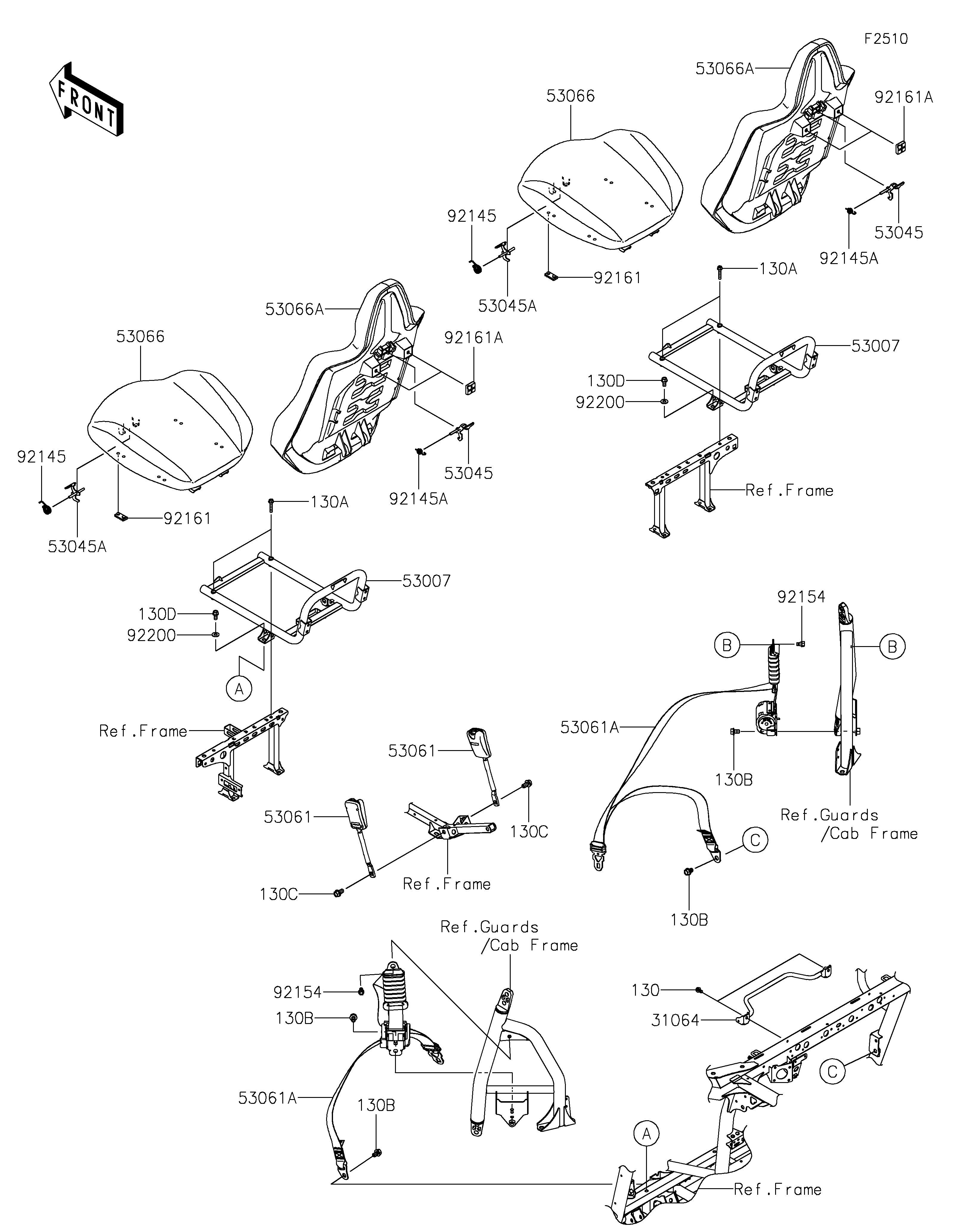

2026 TERYX® KRX4™ 1000 BLACKOUT EDITION - Seat(Rear)

DOWNLOAD PDF
SELECT A NEW PART
31064
53007
53007
53045
53045
53045A
53045A
53061
53061
53061A
53061A
53066
53066
53066A
53066A
92145
92145
92145A
92145A
92154
92154
92161
92161
92161A
92161A
92200
92200
130
130A
130A
130B
130B
130B
130B
130C
130C
130D
130D
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PIPE-COMP,RR,SEAT SUPPORT 31064 31064-0742 1
FRAME-SEAT 53007 53007-0446 2
HOOK-ASSY,SEAT BACK 53045 53045-0037 2
HOOK-ASSY,SEAT BOTTOM 53045A 53045-0039 2
BELT-SEAT,BUCKLE 53061 53061-0039 2
BELT-SEAT,RETRACTOR 53061A 53061-0369 2
SEAT-ASSY,BOTTOM,BLACK+BLK 53066 53066-0975-71Q 2
SEAT-ASSY,BACK,M.D.GRAY+BLK+SI 53066A 53066-0976-71T 2
SPRING,SEAT LATCH 92145 92145-0022 2
SPRING 92145A 92145-2235 2
BOLT,FLANGED,10X16 92154 92154-2089 2
DAMPER,SEAT 92161 92161-1489 8
DAMPER,10X34X10 92161A 92161-1920 4
WASHER,10.3X23X1.6 92200 92200-0724 4
BOLT-FLANGED,8X14 130 130BA0814 2
BOLT-FLANGED,8X40 130A 130BA0840 4
BOLT-FLANGED,12X18 130B 130BA1218 4
BOLT-FLANGED,12X22 130C 130BA1222 2
BOLT-FLANGED,10X20 130D 130CA1020 4
