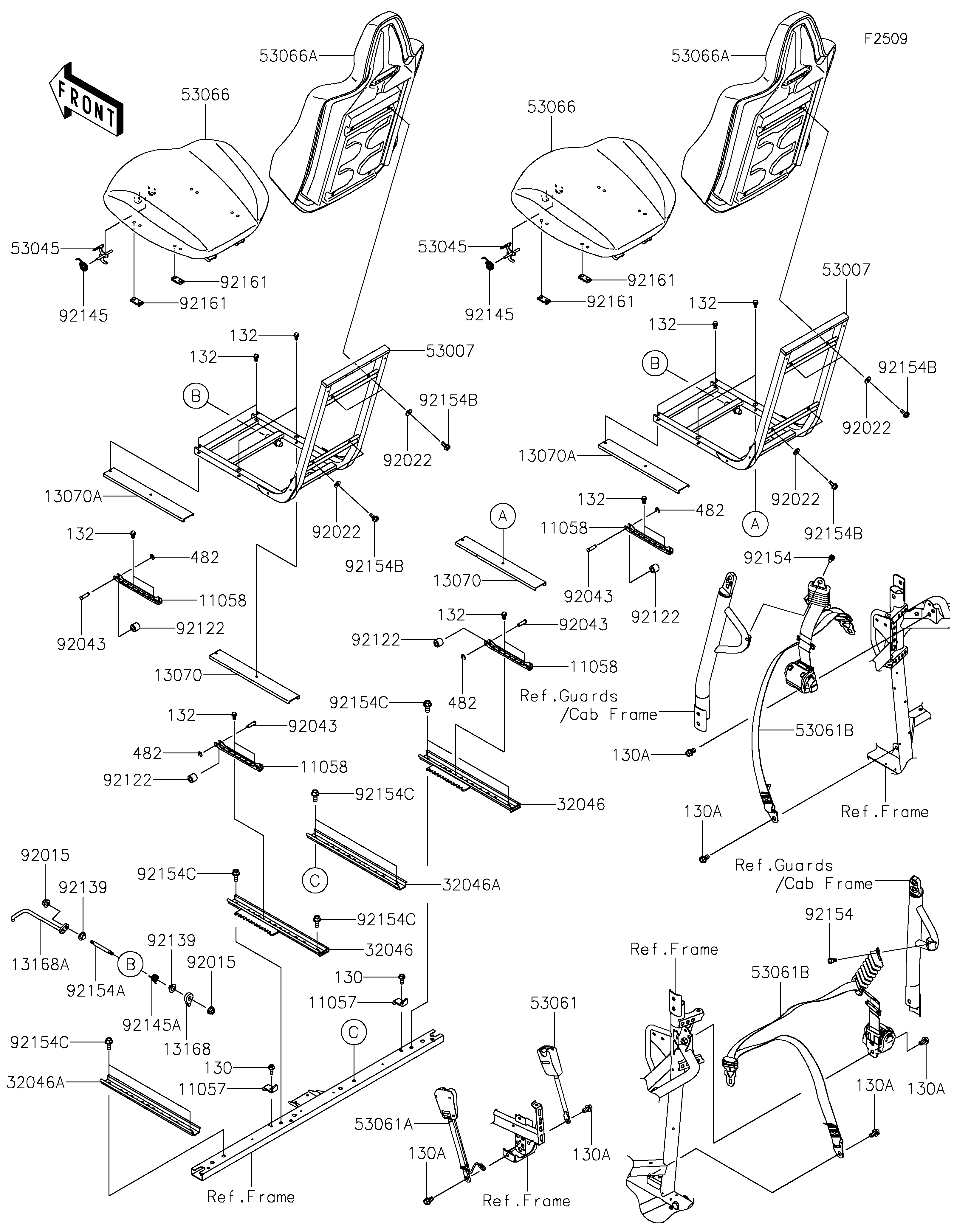

2026 TERYX® KRX4™ 1000 BLACKOUT EDITION - Seat(Front)
11057
11057
11058
11058
11058
11058
13070
13070
13070A
13070A
13168
13168A
32046
32046
32046A
32046A
53007
53007
53045
53045
53061
53061A
53061B
53061B
53066
53066
53066A
53066A
92015
92015
92022
92022
92022
92022
92043
92043
92043
92043
92122
92122
92122
92122
92139
92139
92145
92145
92145A
92154
92154
92154A
92154B
92154B
92154B
92154B
92154C
92154C
92154C
92154C
92154C
92161
92161
92161
92161
130
130
130A
130A
130A
130A
130A
130A
132
132
132
132
132
132
132
132
482
482
482
482
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11057 | 11057-2767 | 2 | ||
| BRACKET | 11058 | 11058-2959 | 4 | ||
| GUIDE,SEAT,RH | 13070 | 13070-1503 | 2 | ||
| GUIDE,SEAT,LH | 13070A | 13070-1504 | 2 | ||
| LEVER,STOP | 13168 | 13168-0883 | 2 | ||
| LEVER,SEAT ADJUST | 13168A | 13168-0884 | 2 | ||
| BRACKET-SEAT,RAIL,RH | 32046 | 32046-0507 | 2 | ||
| BRACKET-SEAT,RAIL,LH | 32046A | 32046-0508 | 2 | ||
| FRAME-SEAT | 53007 | 53007-0498 | 2 | ||
| HOOK-ASSY,SEAT BOTTOM | 53045 | 53045-0039 | 2 | ||
| BELT-SEAT,BUCKLE,PASSENGER | 53061 | 53061-0358 | 1 | ||
| BELT-SEAT,BUCKLE,DRIVER | 53061A | 53061-0365 | 1 | ||
| BELT-SEAT,RETRACTOR | 53061B | 53061-0368 | 2 | ||
| SEAT-ASSY,BOTTOM,BLACK+BLK | 53066 | 53066-0975-71Q | 2 | ||
| SEAT-ASSY,BACK,M.D.GRAY+BLK+SI | 53066A | 53066-0977-71T | 2 | ||
| NUT,8MM | 92015 | 92015-1432 | 4 | ||
| WASHER,6.5X16X2 | 92022 | 92022-1565 | 8 | ||
| PIN | 92043 | 92043-0991 | 8 | ||
| ROLLER | 92122 | 92122-0564 | 8 | ||
| BUSHING | 92139 | 92139-0230 | 4 | ||
| SPRING,SEAT LATCH | 92145 | 92145-0022 | 2 | ||
| SPRING,ADJUST LEVER | 92145A | 92145-1858 | 2 | ||
| BOLT,FLANGED,10X16 | 92154 | 92154-2089 | 2 | ||
| BOLT,ADJUST LEVER | 92154A | 92154-3923 | 2 | ||
| BOLT,FLANGED,6X14 | 92154B | 92154-3968 | 8 | ||
| BOLT,FLANGED,10X18 | 92154C | 92154-7022 | 8 | ||
| DAMPER,SEAT | 92161 | 92161-1489 | 8 | ||
| BOLT-FLANGED,6X16 | 130 | 130BA0616 | 2 | ||
| BOLT-FLANGED,12X22 | 130A | 130BA1222 | 6 | ||
| BOLT-FLANGED-SMALL,6X10 | 132 | 132BA0610 | 16 | ||
| CIRCLIP-TYPE-E,4MM | 482 | 482J4000 | 8 |
