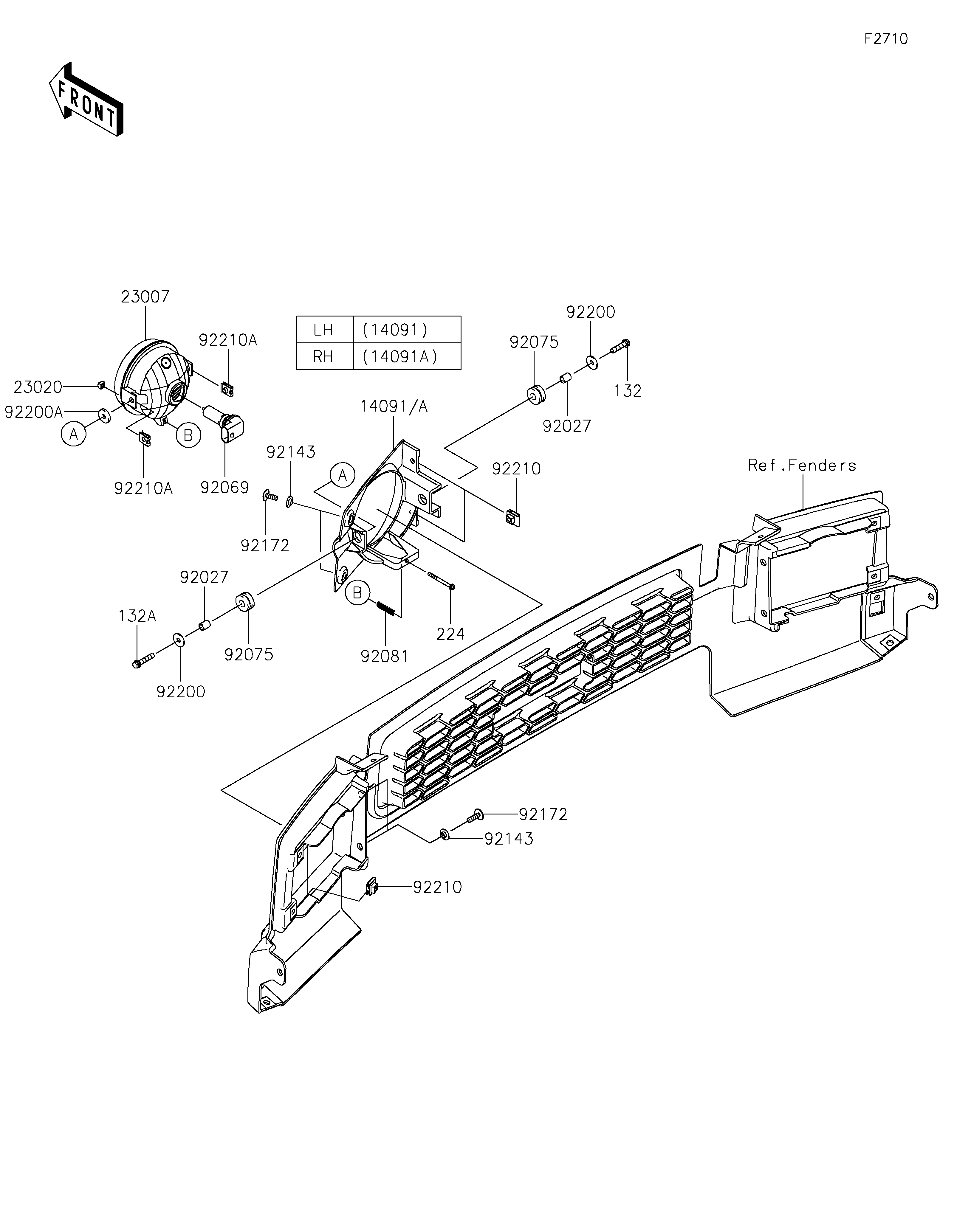

2026 MULE™ 4000 - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
14091
14091A
23007
23020
92027
92027
92069
92075
92075
92081
92143
92143
92172
92172
92200
92200
92200A
92210
92210
92210A
92210A
132
132A
224
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,HEAD LAMP,LH 14091 14091-0827 1
COVER,HEAD LAMP,RH 14091A 14091-0828 1
LENS-COMP,HEAD LAMP 23007 23007-0220 2
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
COLLAR,6.8X10X12 92027 92027-162 4
BULB,12V 35/35W 92069 92069-0102 2
DAMPER,10X24X12 92075 92075-1690 4
SPRING,FOCUS ADJUST 92081 92081-1896 2
COLLAR 92143 92143-1087 8
SCREW,TAPPING,6X20 92172 92172-0488 8
WASHER,6.5X20X1.6 92200 92200-0283 4
WASHER,6.5X20X3.2 92200A 92200-0359 2
NUT,LEAF SPRING,6MM 92210 92210-0624 8
NUT 92210A 92210-1125 4
BOLT-FLANGED-SMALL,6X25 132 132BA0625 2
BOLT-FLANGED-SMALL,6X30 132A 132BA0630 2
SCREW-PAN-WP-CROS,4X45 224 224AA0445 2
