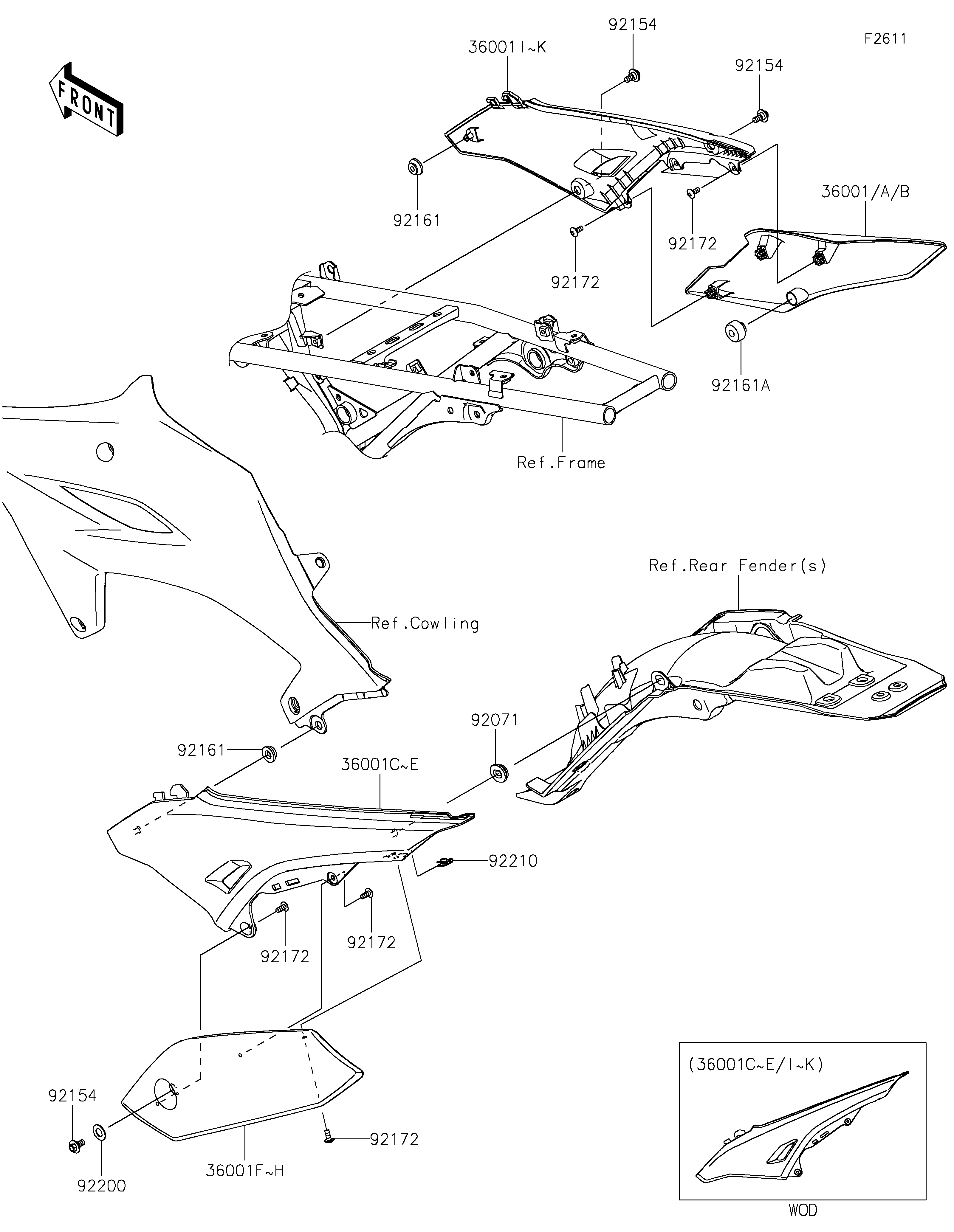

Parts Diagrams |
36001
36001A
36001B
36001C
36001D
36001E
36001F
36001G
36001H
36001I
36001J
36001K
92071
92154
92154
92154
92161
92161
92161A
92172
92172
92172
92172
92172
92200
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER-SIDE,RH,LWR,B.WHITE | 36001 | 36001-0764-266 | 1 | ||
| COVER-SIDE,RH,LWR,L.GREEN | 36001A | 36001-0764-290 | 1 | ||
| COVER-SIDE,RH,LWR,B.GRAY | 36001B | 36001-0764-67A | 1 | ||
| COVER-SIDE,LH,UPP,B.WHITE | 36001C | 36001-0767-266 | 1 | ||
| COVER-SIDE,LH,UPP,L.GREEN | 36001D | 36001-0767-290 | 1 | ||
| COVER-SIDE,LH,UPP,B.GRAY | 36001E | 36001-0767-67A | 1 | ||
| COVER-SIDE,LH,LWR,B.WHITE | 36001F | 36001-0768-266 | 1 | ||
| COVER-SIDE,LH,LWR,L.GREEN | 36001G | 36001-0768-290 | 1 | ||
| COVER-SIDE,LH,LWR,B.GRAY | 36001H | 36001-0768-67A | 1 | ||
| COVER-SIDE,RH,UPP,B.WHITE | 36001I | 36001-0769-266 | 1 | ||
| COVER-SIDE,RH,UPP,L.GREEN | 36001J | 36001-0769-290 | 1 | ||
| COVER-SIDE,RH,UPP,B.GRAY | 36001K | 36001-0769-67A | 1 | ||
| GROMMET | 92071 | 92071-0795 | 1 | ||
| BOLT,FLANGED,6X13 | 92154 | 92154-4411 | 3 | ||
| DAMPER | 92161 | 92161-1531 | 2 | ||
| DAMPER | 92161A | 92161-1783 | 1 | ||
| SCREW,5X12 | 92172 | 92172-1095 | 6 | ||
| WASHER,10.5X20X1.0 | 92200 | 92200-0870 | 1 | ||
| NUT,CLIP,5MM | 92210 | 92210-1666 | 1 |
