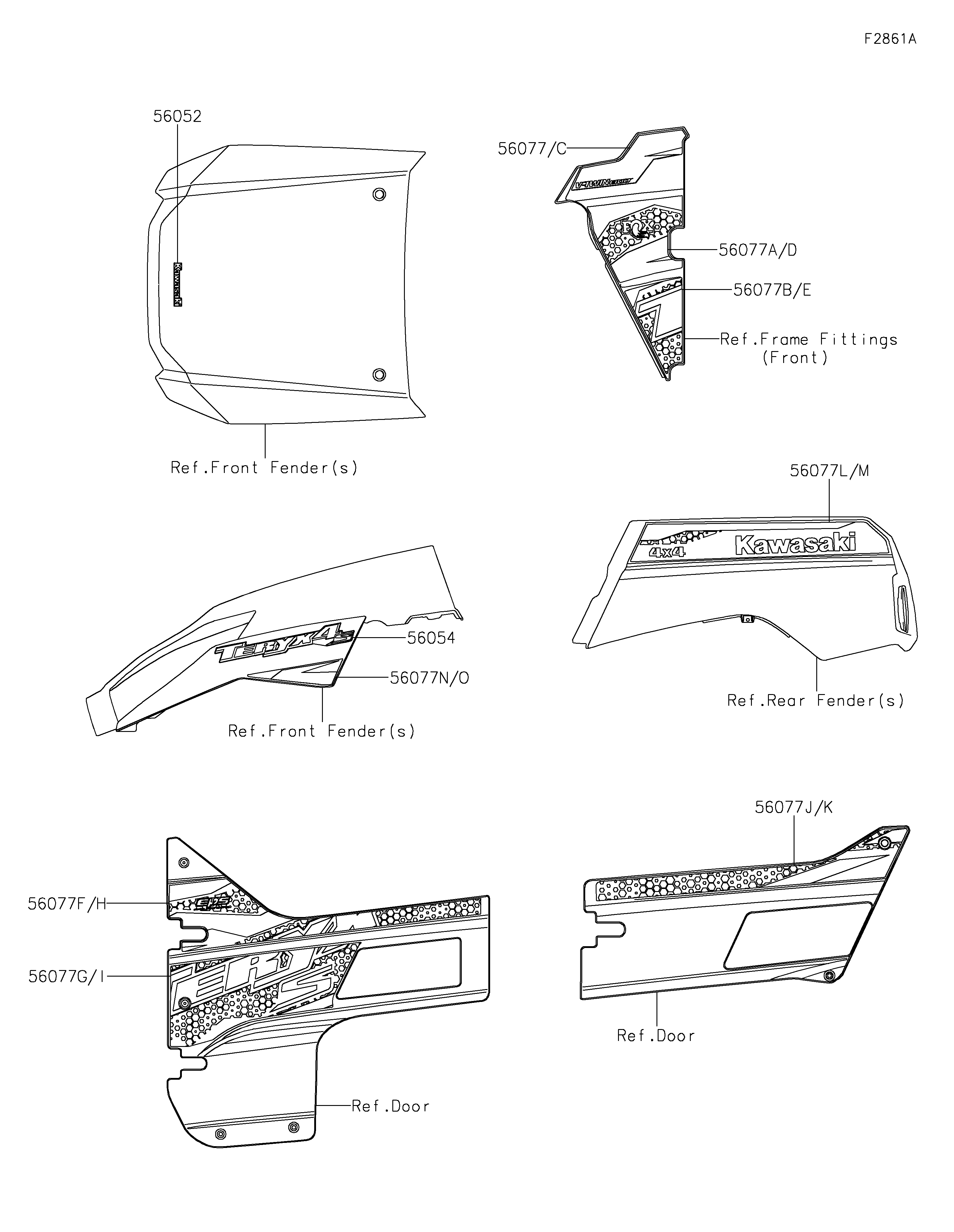

2024 Teryx4™ S LE - Decals(Blue)(JRFNN/JRFNL)(CA,US)

DOWNLOAD PDF
SELECT A NEW PART
56052
56054
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
56077J
56077K
56077L
56077M
56077N
56077O
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,KAWASAKI 56052 56052-0928 1 CA,US
MARK,TERYX4S 56054 56054-3954 2 CA,US
PATTERN,SIDE GUARD,LH,UPP 56077 56077-0258 1 CA,US
PATTERN,SIDE GUARD,LH,CNT 56077A 56077-0259 1 CA,US
PATTERN,SIDE GUARD,LH,LWR 56077B 56077-0260 1 CA,US
PATTERN,SIDE GUARD,RH,UPP 56077C 56077-0261 1 CA,US
PATTERN,SIDE GUARD,RH,CNT 56077D 56077-0262 1 CA,US
PATTERN,SIDE GUARD,RH,LWR 56077E 56077-0263 1 CA,US
PATTERN,FR DOOR COVER,LH,UPP 56077F 56077-0264 1 CA,US
PATTERN,FR DOOR COVER,LH,LWR 56077G 56077-0265 1 CA,US
PATTERN,FR DOOR COVER,RH,UPP 56077H 56077-0266 1 CA,US
PATTERN,FR DOOR COVER,RH,LWR 56077I 56077-0267 1 CA,US
PATTERN,RR DOOR COVER,LH 56077J 56077-0280 1 CA,US
PATTERN,RR DOOR COVER,RH 56077K 56077-0281 1 CA,US
PATTERN,RR FENDER,LH 56077L 56077-0282 1 CA,US
PATTERN,RR FENDER,RH 56077M 56077-0283 1 CA,US
PATTERN,FR FENDER,LH 56077N 56077-0526 1 CA,US
PATTERN,FR FENDER,RH 56077O 56077-0527 1 CA,US
