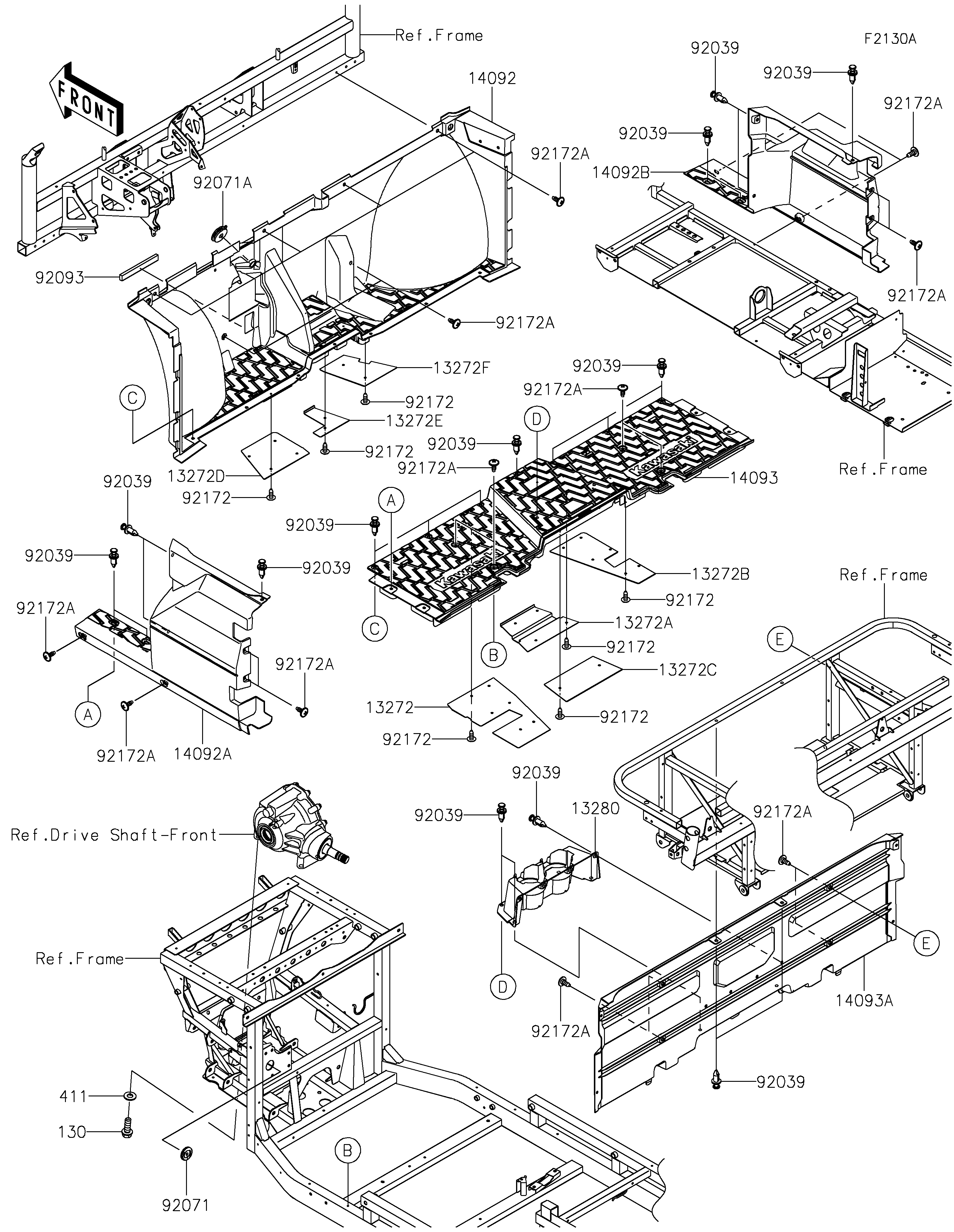

2026 MULE PRO-FXT™ 1000 PLATINUM RANCH EDITION - Frame Fittings(Front)(DTFNN/DTFNL)

DOWNLOAD PDF
SELECT A NEW PART
13272
13272A
13272B
13272C
13272D
13272E
13272F
13280
14092
14092A
14092B
14093
14093A
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92039
92071
92071A
92093
92172
92172
92172
92172
92172
92172
92172
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
92172A
130
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PLATE,FR FLOOR,LH 13272 13272-7270 1
PLATE,FR FLOOR,MID,FR 13272A 13272-7271 1
PLATE,FR FLOOR,RH 13272B 13272-7272 1
PLATE,FR FLOOR,MID,RR 13272C 13272-7273 1
PLATE,DASH,LWR,LH 13272D 13272-7275 1
PLATE,DASH,LWR,MID 13272E 13272-7276 1
PLATE,DASH,LWR,RH 13272F 13272-7277 1
HOLDER 13280 13280-1352 1
COVER,FR FLOOR 14092 14092-1184 1
COVER,SIDE,LH,FR 14092A 14092-1188 1
COVER,SIDE,RH,FR 14092B 14092-1189 1
COVER,FLOOR,BOTTOM 14093 14093-1426 1
COVER,FR SEAT 14093A 14093-1427 1
RIVET 92039 92039-0865 27
GROMMET,9X45X9 92071 92071-0728 1
GROMMET,8X22X8 92071A 92071-0753 1
SEAL,10X20X165 92093 92093-0617 1
SCREW,6X16 92172 92172-0284 26
SCREW,6X16 92172A 92172-0711 22
BOLT-FLANGED,12X35 130 130CA1235 4
WASHER-PLAIN,12MM 411 411AA1200 4
