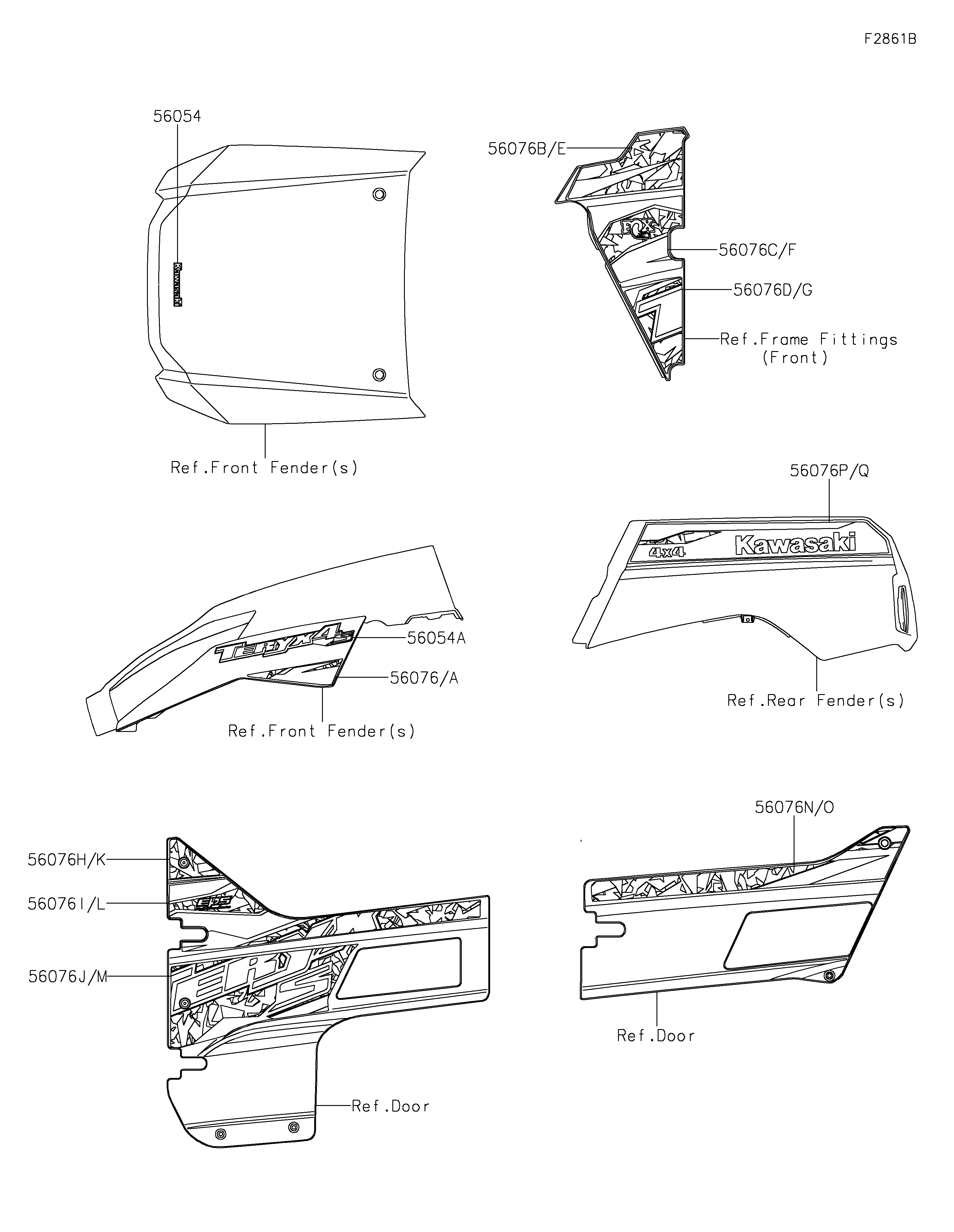

2021 TERYX4™ Camo - Decals(Gray)(JMFAN/JMFAL)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076M
56076N
56076O
56076P
56076Q
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,KAWASAKI 56054 56054-2052 1
MARK,FR FENDER,TERYX4S 56054A 56054-2903 2
PATTERN,FR FENDER,LH 56076 56076-2221 1
PATTERN,FR FENDER,RH 56076A 56076-2222 1
PATTERN,SIDE GUARD,LH,UPP 56076B 56076-2223 1
PATTERN,SIDE GUARD,LH,CNT 56076C 56076-2224 1
PATTERN,SIDE GUARD,LH,LWR 56076D 56076-2225 1
PATTERN,SIDE GUARD,RH,UPP 56076E 56076-2226 1
PATTERN,SIDE GUARD,RH,CNT 56076F 56076-2227 1
PATTERN,SIDE GUARD,RH,LWR 56076G 56076-2228 1
PATTERN,FR DOOR COVER,LH,UPP 56076H 56076-2229 1
PATTERN,FR DOOR COVER,LH,CNT 56076I 56076-2230 1
PATTERN,FR DOOR COVER,LH,LWR 56076J 56076-2231 1
PATTERN,FR DOOR COVER,RH,UPP 56076K 56076-2232 1
PATTERN,FR DOOR COVER,RH,CNT 56076L 56076-2233 1
PATTERN,FR DOOR COVER,RH,LWR 56076M 56076-2234 1
PATTERN,FR DOOR COVER,LH 56076N 56076-2235 1
PATTERN,FR DOOR COVER,RH 56076O 56076-2236 1
PATTERN,RR FENDER,LH 56076P 56076-2237 1
PATTERN,RR FENDER,RH 56076Q 56076-2238 1
