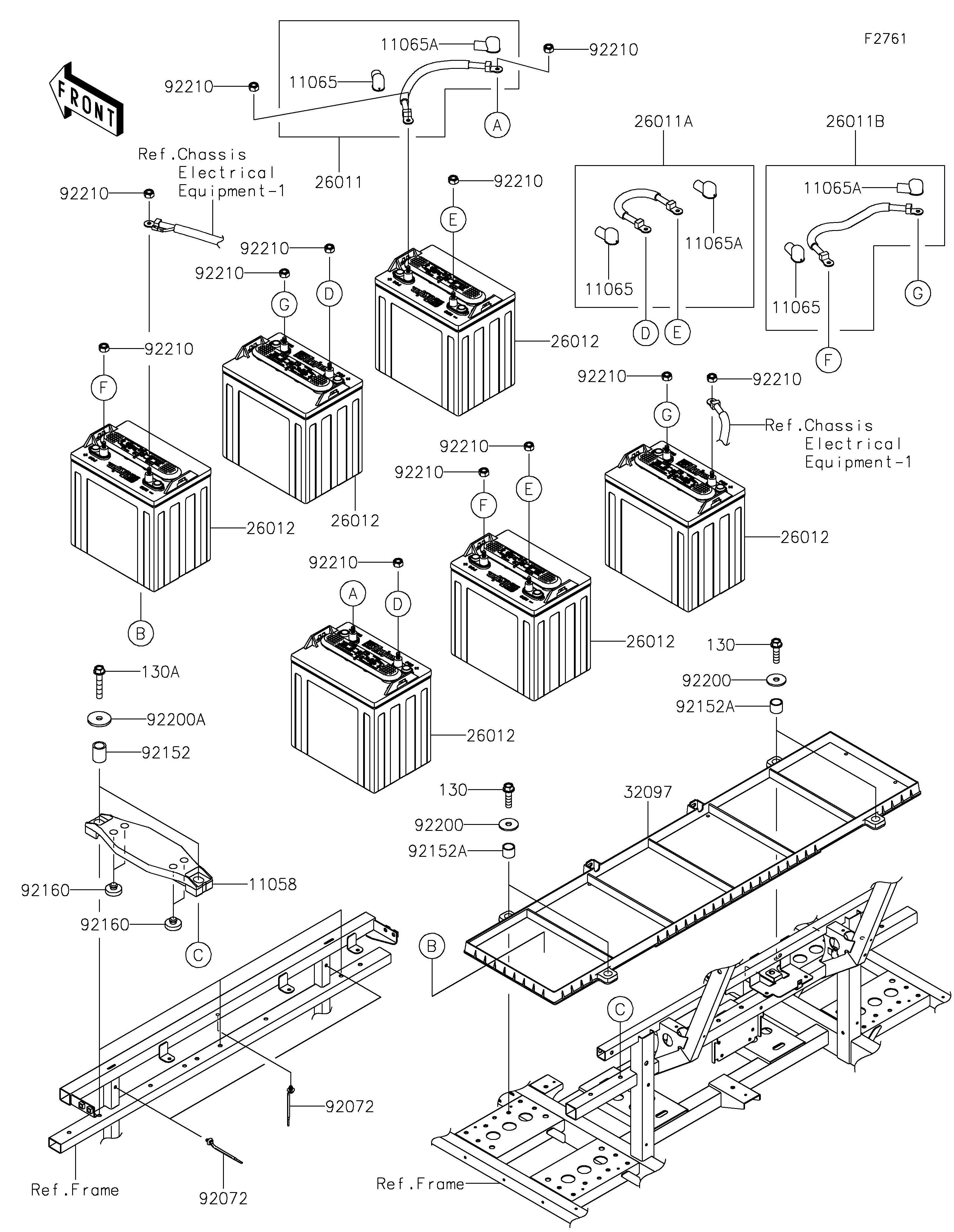

Parts Diagrams |
11058
11065
11065
11065
11065A
11065A
11065A
26011
26011A
26011B
26012
26012
26012
26012
26012
26012
32097
92072
92072
92152
92152A
92152A
92160
92160
92200
92200
92200A
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
92210
130
130
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,BATTERY STOPPER | 11058 | 11058-1531 | 3 | ||
| CAP,RED | 11065 | 11065-1482 | 5 | ||
| CAP,BLACK | 11065A | 11065-1483 | 5 | ||
| WIRE-LEAD,BATTERY,370MM | 26011 | 26011-2469 | 1 | ||
| WIRE-LEAD,BATTERY,300MM | 26011A | 26011-2470 | 2 | ||
| WIRE-LEAD,BATTERY,400MM | 26011B | 26011-2471 | 2 | ||
| BATTERY,T875,8V | 26012 | 26012-1486 | 6 | ||
| CASE-BATTERY | 32097 | 32097-0573 | 1 | ||
| BAND,OS170-FT7(BLACK) | 92072 | 92072-1414 | 3 | ||
| COLLAR,14.2X19.1X24 | 92152 | 92152-3829 | 6 | ||
| COLLAR | 92152A | 92152-3830 | 4 | ||
| DAMPER | 92160 | 92160-1396 | 12 | ||
| WASHER,8.5X28X2.3 | 92200 | 92200-2649 | 4 | ||
| WASHER,8.5X34X3.2 | 92200A | 92200-2778 | 6 | ||
| NUT,5/16-18 UNC | 92210 | 92210-2298 | 12 | ||
| BOLT-FLANGED,8X30 | 130 | 130BA0830 | 4 | ||
| BOLT-FLANGED,8X45 | 130A | 130CA0845 | 6 |
