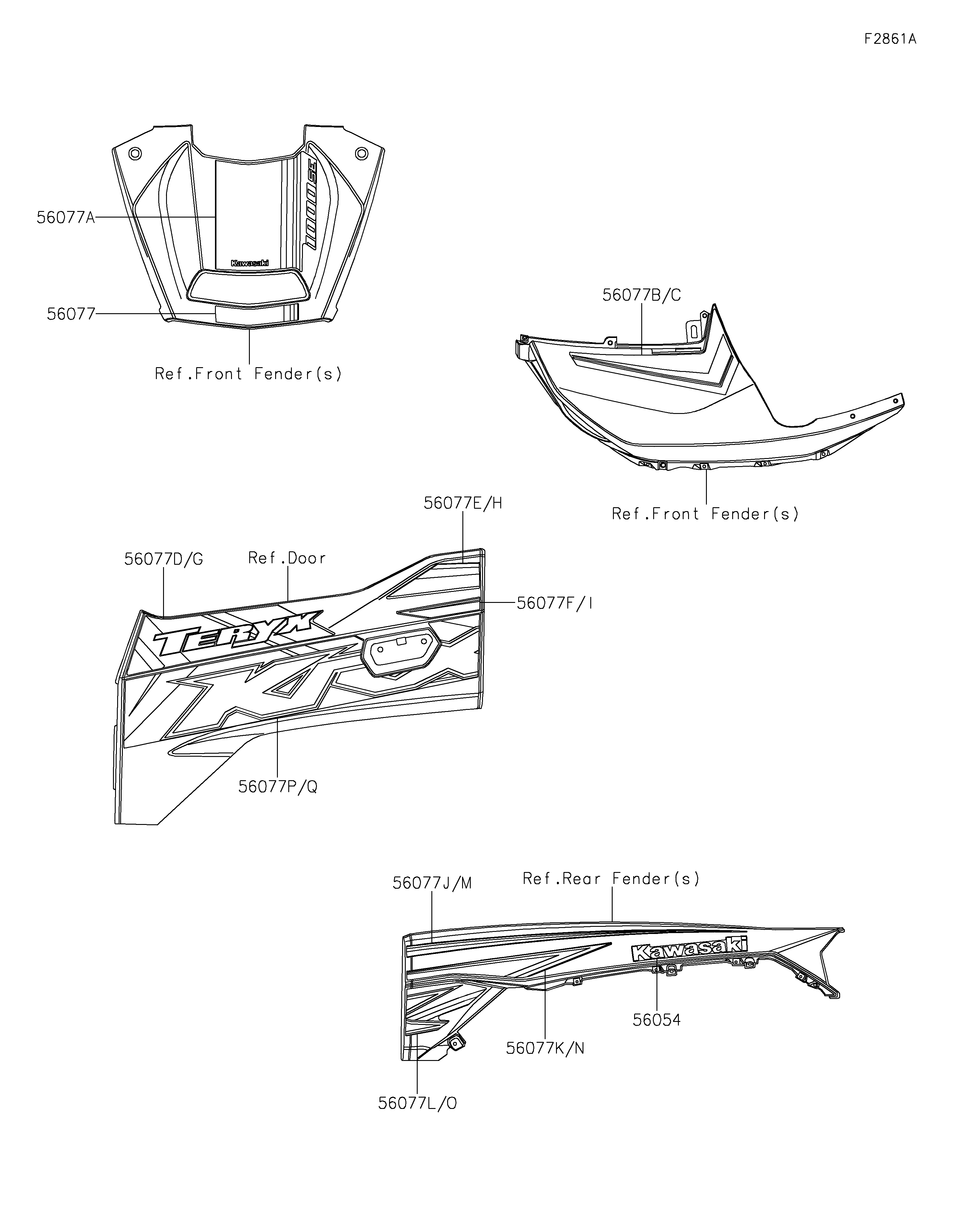

2024 TERYX KRX® 1000 SE - Decals(CRFNN/CRFNL)
56054
56077
56077A
56077B
56077C
56077D
56077E
56077F
56077G
56077H
56077I
56077J
56077K
56077L
56077M
56077N
56077O
56077P
56077Q
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,RR FENDER,KAWASAKI | 56054 | 56054-3958 | 2 | ||
| PATTERN,HOOD COVER,FR | 56077 | 56077-0360 | 1 | ||
| PATTERN,HOOD COVER,RR | 56077A | 56077-0361 | 1 | ||
| PATTERN,FR FENDER,LH | 56077B | 56077-0362 | 1 | ||
| PATTERN,FR FENDER,RH | 56077C | 56077-0363 | 1 | ||
| PATTERN,DOOR COVER,LH,UPP | 56077D | 56077-0364 | 1 | ||
| PATTERN,DOOR COVER,LH,UPP,RR | 56077E | 56077-0365 | 1 | ||
| PATTERN,DOOR COVER,LH,UPP,RR | 56077F | 56077-0366 | 1 | ||
| PATTERN,DOOR COVER,RH,UPP | 56077G | 56077-0367 | 1 | ||
| PATTERN,DOOR COVER,RH,UPP,RR | 56077H | 56077-0368 | 1 | ||
| PATTERN,DOOR COVER,RH,UPP,RR | 56077I | 56077-0369 | 1 | ||
| PATTERN,RR FENDER,LH,UPP | 56077J | 56077-0370 | 1 | ||
| PATTERN,RR FENDER,LH,CNT | 56077K | 56077-0371 | 1 | ||
| PATTERN,RR FENDER,LH,LWR | 56077L | 56077-0372 | 1 | ||
| PATTERN,RR FENDER,RH,UPP | 56077M | 56077-0373 | 1 | ||
| PATTERN,RR FENDER,RH,CNT | 56077N | 56077-0374 | 1 | ||
| PATTERN,RR FENDER,RH,LWR | 56077O | 56077-0375 | 1 | ||
| PATTERN,DOOR COVER,LH,LWR | 56077P | 56077-0571 | 1 | ||
| PATTERN,DOOR COVER,RH,LWR | 56077Q | 56077-0572 | 1 |
| MARK,RR FENDER,KAWASAKI | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HOOD COVER,FR | |
| REF # | 56077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,HOOD COVER,RR | |
| REF # | 56077A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56077B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56077C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,LH,UPP | |
| REF # | 56077D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,LH,UPP,RR | |
| REF # | 56077E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,LH,UPP,RR | |
| REF # | 56077F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,RH,UPP | |
| REF # | 56077G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,RH,UPP,RR | |
| REF # | 56077H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,RH,UPP,RR | |
| REF # | 56077I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH,UPP | |
| REF # | 56077J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH,CNT | |
| REF # | 56077K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,LH,LWR | |
| REF # | 56077L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH,UPP | |
| REF # | 56077M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH,CNT | |
| REF # | 56077N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,RR FENDER,RH,LWR | |
| REF # | 56077O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,LH,LWR | |
| REF # | 56077P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,DOOR COVER,RH,LWR | |
| REF # | 56077Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
