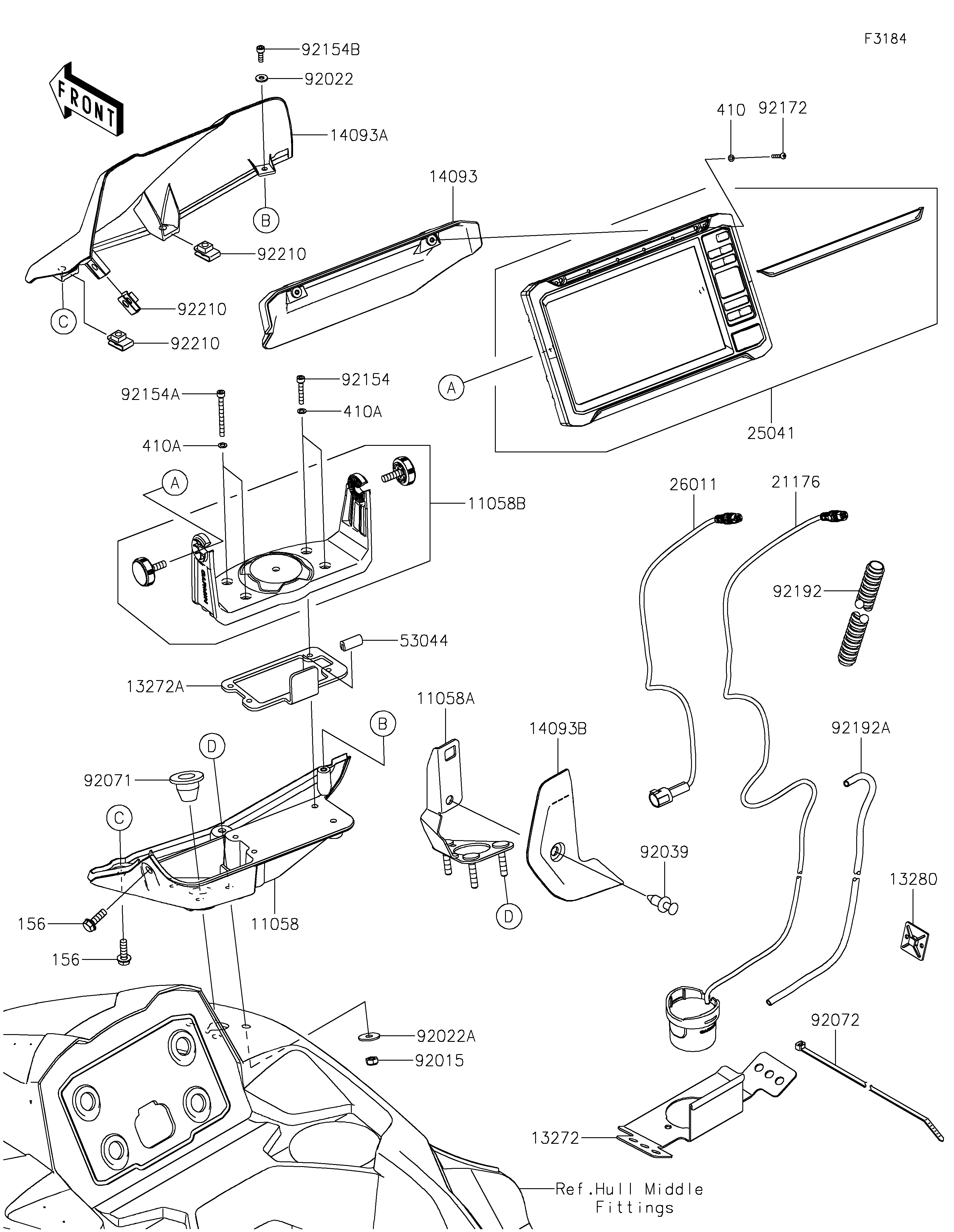

2025 JET SKI® ULTRA® 160LX-S ANGLER - Other(Display)

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
11058B
13272
13272A
13280
14093
14093A
14093B
21176
25041
26011
53044
92015
92022
92022A
92039
92071
92072
92154
92154A
92154B
92172
92192
92192A
92210
92210
92210
156
156
410
410A
410A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,CHARTPLOTTER,LWR 11058 11058-1082 1
BRACKET,CHARTPLOTTER,UPP 11058A 11058-1237 1
BRACKET,DISPLAY 11058B 11058-2183 1
PLATE,SENSOR 13272 13272-7029 1
PLATE,DISPLAY 13272A 13272-7030 1
HOLDER 13280 13280-1394 1
COVER,DISPLAY,TOP 14093 14093-1520 1
COVER,DISPLAY,OUTER,S.BLACK 14093A 14093-1521-839 1
COVER,DISPLAY,INNER 14093B 14093-1532 1
SENSOR,TRANSDUCER 21176 21176-1251 1
DISPLAY-MULTI-FUNCTION 25041 25041-0002 1
WIRE-LEAD,HARNESS-CHARTPLOTTER 26011 26011-2439 1
TRIM,L=20 53044 53044-1292 1
NUT,LOCK,6MM 92015 92015-3766 3
WASHER 92022 92022-3042 1
WASHER,6.5X20X1.5 92022A 92022-3710 3
RIVET 92039 92039-0776 1
GROMMET 92071 92071-3826 1
BAND,L=372.24 92072 92072-3883 1
BOLT,SOCKET,4X25 92154 92154-7181 2
BOLT,SOCKET,4X45 92154A 92154-7236 2
BOLT,SOCKET,4X12 92154B 92154-7432 1
SCREW,3X20 92172 92172-1495 2
TUBE,CORRUGATED,13.2X17.5X125 92192 92192-2714 1
TUBE,10X1800 92192A 92192-2836 1
NUT,6MM 92210 92210-3768 3
BOLT-WP,6X20 156 156R0620 3
W-PLAIN-S,3MM 410 410S0300 2
WASHER-PLAIN-SMALL,4MM 410A 410S0400 4
