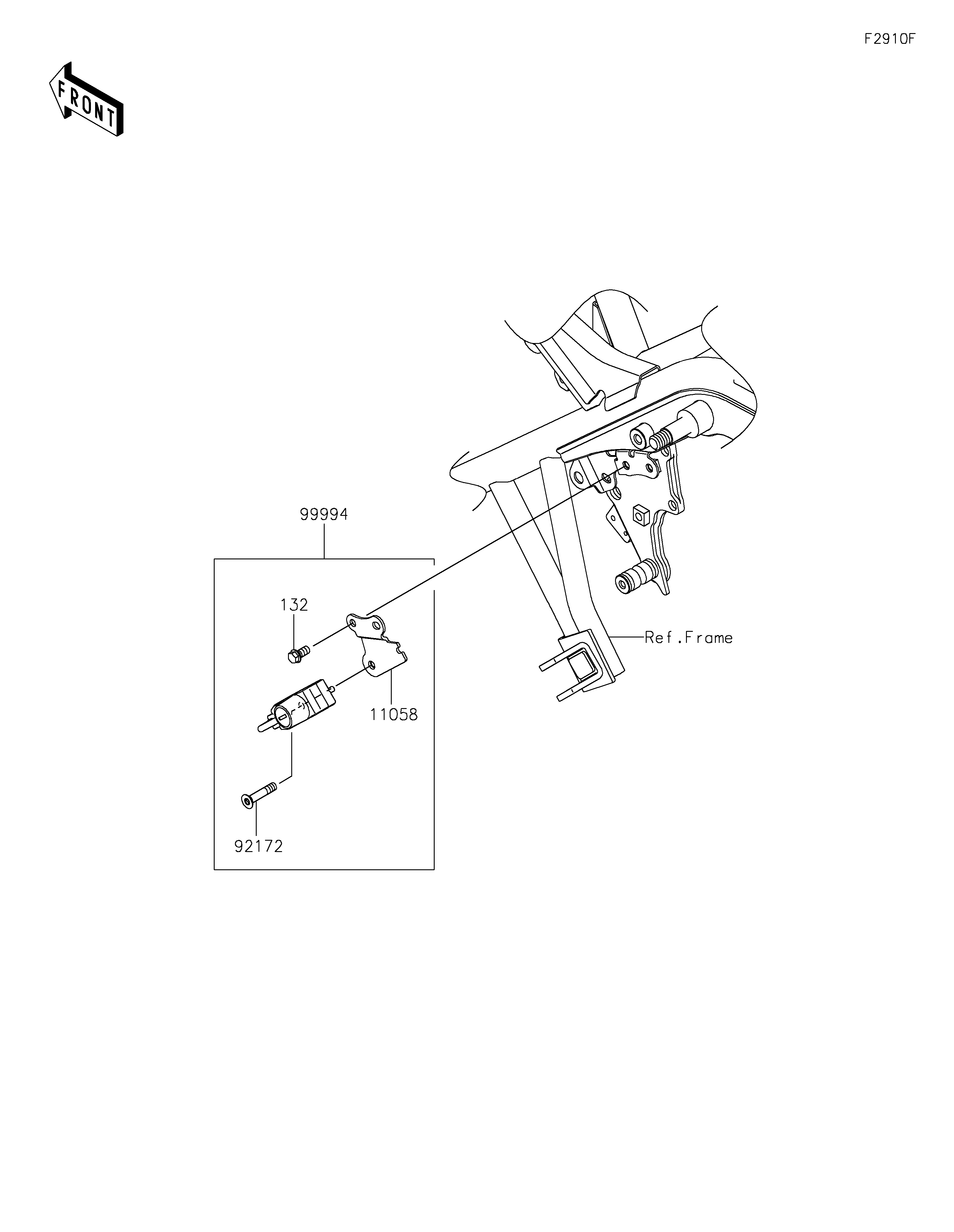

2024 ELIMINATOR® SE ABS - Accessory(Helmet Lock)

11058
92172
99994
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11058 11058-0594 1
SCREW,HEXLOBE,6X30 92172 92172-1378 1
HELMET LOCK 99994 99994-1908 1
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
