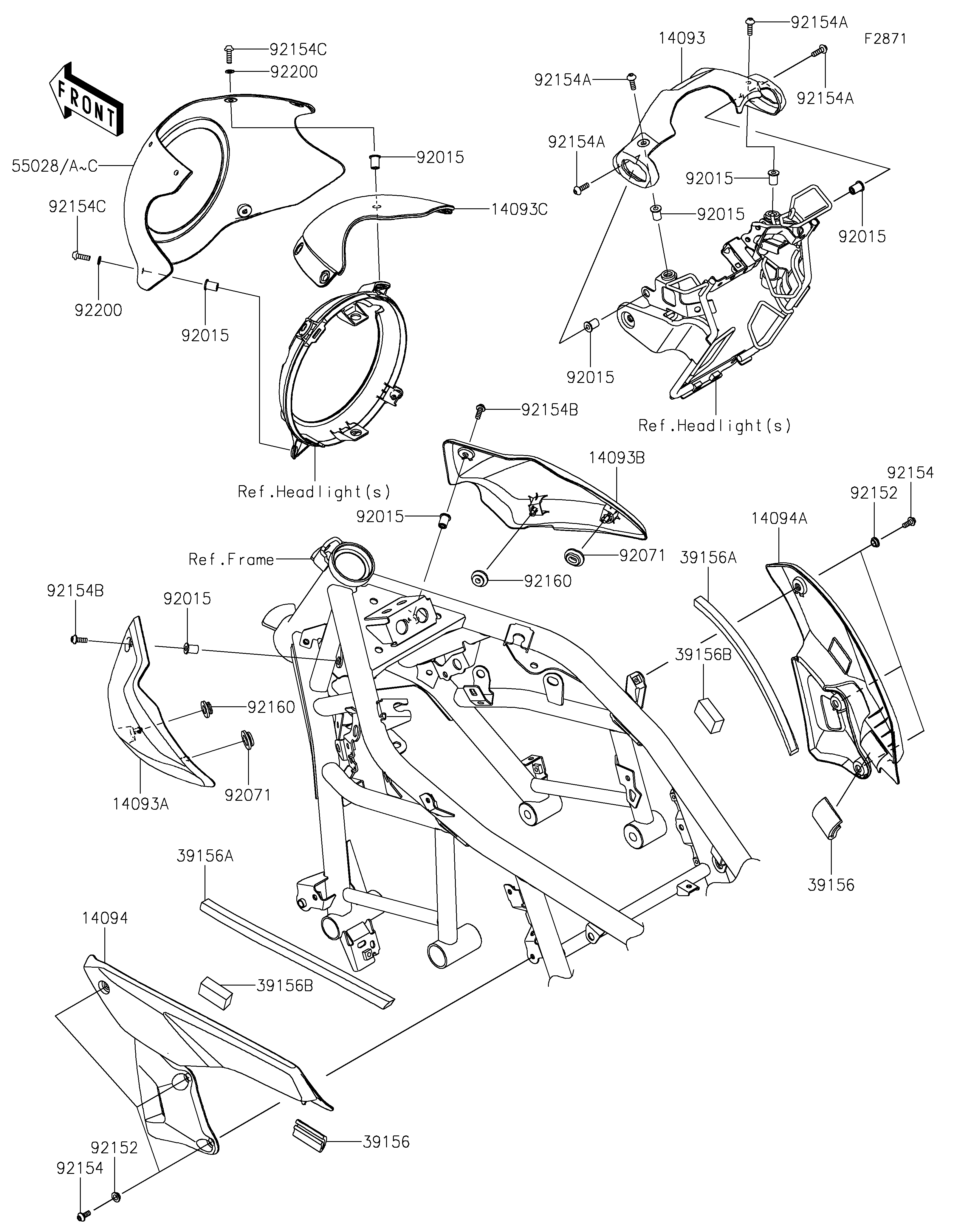

2024 ELIMINATOR® SE ABS - Cowling

DOWNLOAD PDF
SELECT A NEW PART
14093
14093A
14093B
14093C
14094
14094A
39156
39156
39156A
39156A
39156B
39156B
55028A
92015
92015
92015
92015
92015
92015
92015
92015
92071
92071
92152
92152
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154C
92154C
92160
92160
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,HEAD LAMP 14093 14093-1303 1
COVER,HEAD PIPE,LH 14093A 14093-1304 1
COVER,HEAD PIPE,RH 14093B 14093-1305 1
COVER,UPP COWLING 14093C 14093-1449 1
COVER,KNEE GRIP,LH 14094 14094-0008 1
COVER,KNEE GRIP,RH 14094A 14094-0009 1
PAD,50X40X4 39156 39156-2826 2
PAD,10X260X10 39156A 39156-2832 2
PAD,37X20X13 39156B 39156-2833 2
COWLING,UPP,C.S.F.ORANGE 55028A 55028-0855-62J 1
NUT,WELL,5MM 92015 92015-1757 12
GROMMET,20X24X7.5 92071 92071-0766 2
COLLAR 92152 92152-3772 6
BOLT,SOCKET,5X12 92154 92154-0917 6
BOLT,SOCKET,5X16 92154A 92154-1701 4
BOLT,HEX HEAD,5X14 92154B 92154-4228 2
BOLT,SOCKET,5X16 92154C 92154-4294 6
DAMPER 92160 92160-1613 2
WASHER,5.2X10X1 92200 92200-2286 6
