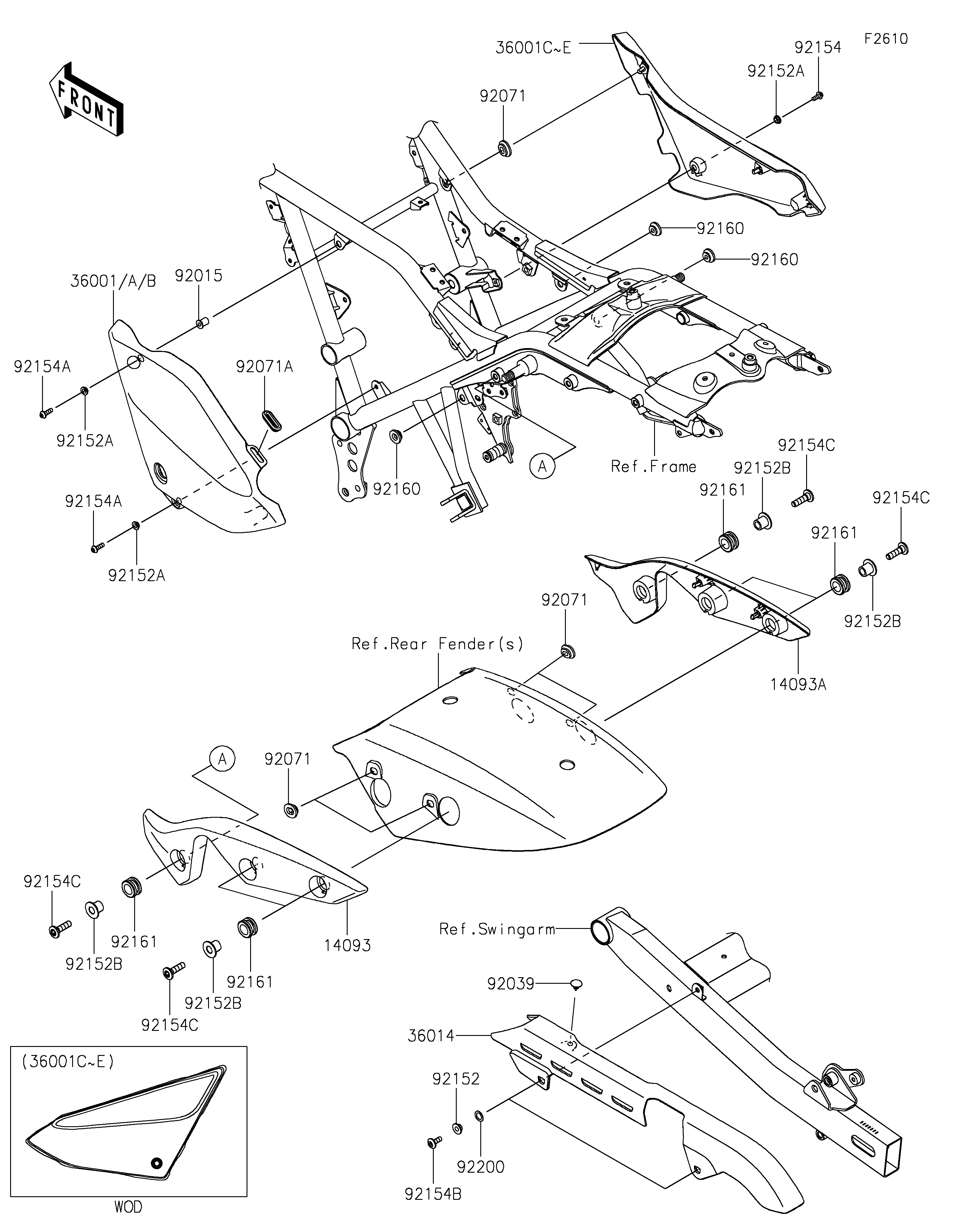

2024 ELIMINATOR® SE ABS - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
14093
14093A
36001B
36001E
36014
92015
92039
92071
92071
92071
92071A
92152
92152A
92152A
92152A
92152B
92152B
92152B
92152B
92154
92154A
92154A
92154B
92154C
92154C
92154C
92154C
92160
92160
92160
92161
92161
92161
92161
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,TAIL,LH,F.S.BLACK 14093 14093-1301-18T 1
COVER,TAIL,RH,F.S.BLACK 14093A 14093-1302-18T 1
COVER-SIDE,LH,EBONY 36001B 36001-0765-H8 1 _________________________________________CA,US
COVER-SIDE,RH,EBONY 36001E 36001-0766-H8 1 _________________________________________CA,US
CASE-CHAIN 36014 36014-0577 1
NUT,WELL,5MM 92015 92015-1757 1
RIVET 92039 92039-0722 1
GROMMET,20X24X7.5 92071 92071-0766 5
GROMMET 92071A 92071-1187 1
COLLAR,6.5X10X5.9 92152 92152-2486 2
COLLAR 92152A 92152-2903 3
COLLAR 92152B 92152-2950 6
BOLT,SOCKET,5X12 92154 92154-1421 1
BOLT,SOCKET,5X16 92154A 92154-4294 2
BOLT,SOCKET,6X16 92154B 92154-4370 2
BOLT,8X30 92154C 92154-7174 6
DAMPER 92160 92160-1613 3
DAMPER,15.5X26X14.5 92161 92161-1361 6
WASHER,10.4X15.9X0.5 92200 92200-0157 2
