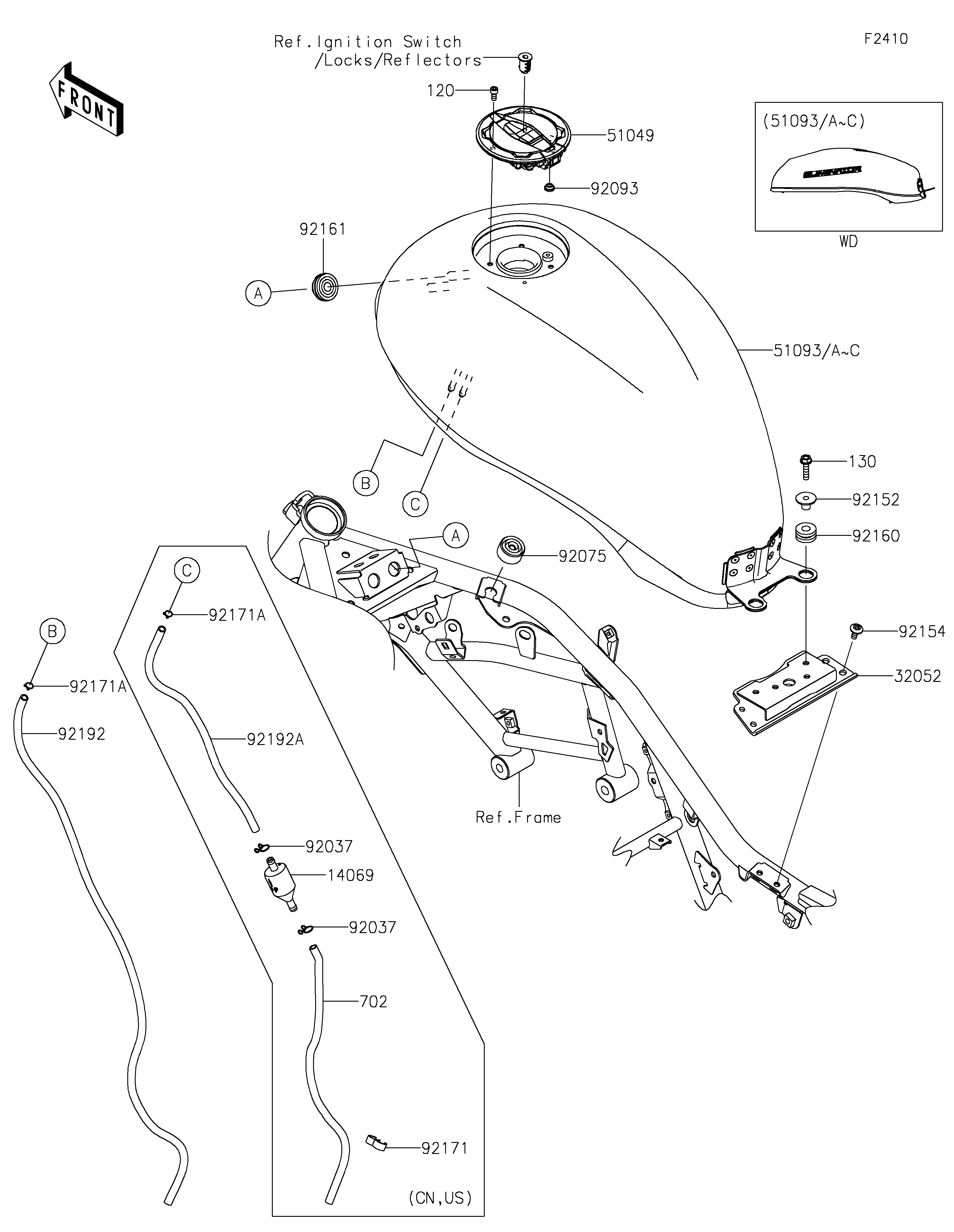

2024 ELIMINATOR® SE ABS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
14069
32052
51049
51093A
92037
92037
92075
92093
92152
92154
92160
92161
92171
92171A
92171A
92192
92192A
120
130
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BREATHER,FUEL TANK 14069 14069-1004 1 _________________________________________CN,US
BRACKET-TANK 32052 32052-0854 1
CAP-TANK,FUEL 51049 51049-0756 1
TANK-COMP-FUEL,ORANGE+EBONY 51093A 51093-5122-69N 1
CLAMP,TUBE 92037 92037-147 2 _________________________________________CN,US
DAMPER 92075 92075-015 2
SEAL,FUEL TANK CAP 92093 92093-1030 1
COLLAR,6.5X10X13.6 92152 92152-2204 2
BOLT,SOCKET,6X14 92154 92154-0932 4
DAMPER 92160 92160-1162 2
DAMPER,10X32X8 92161 92161-1791 2
CLAMP 92171 92171-1184 1 _________________________________________CN,US
CLAMP,8X0.7 92171A 92171-1973 2 _________________________________________CA
TUBE,DRAIN 92192 92192-2612 1
TUBE,6X9X320 92192A 92192-2661 1 _________________________________________CN,US
BOLT-SOCKET,5X12 120 120CA0512 4
BOLT-FLANGED,6X25 130 130CC0625 2
TUBE-RUBBER,6X9X360 702 702A06360 1 _________________________________________CN,US
