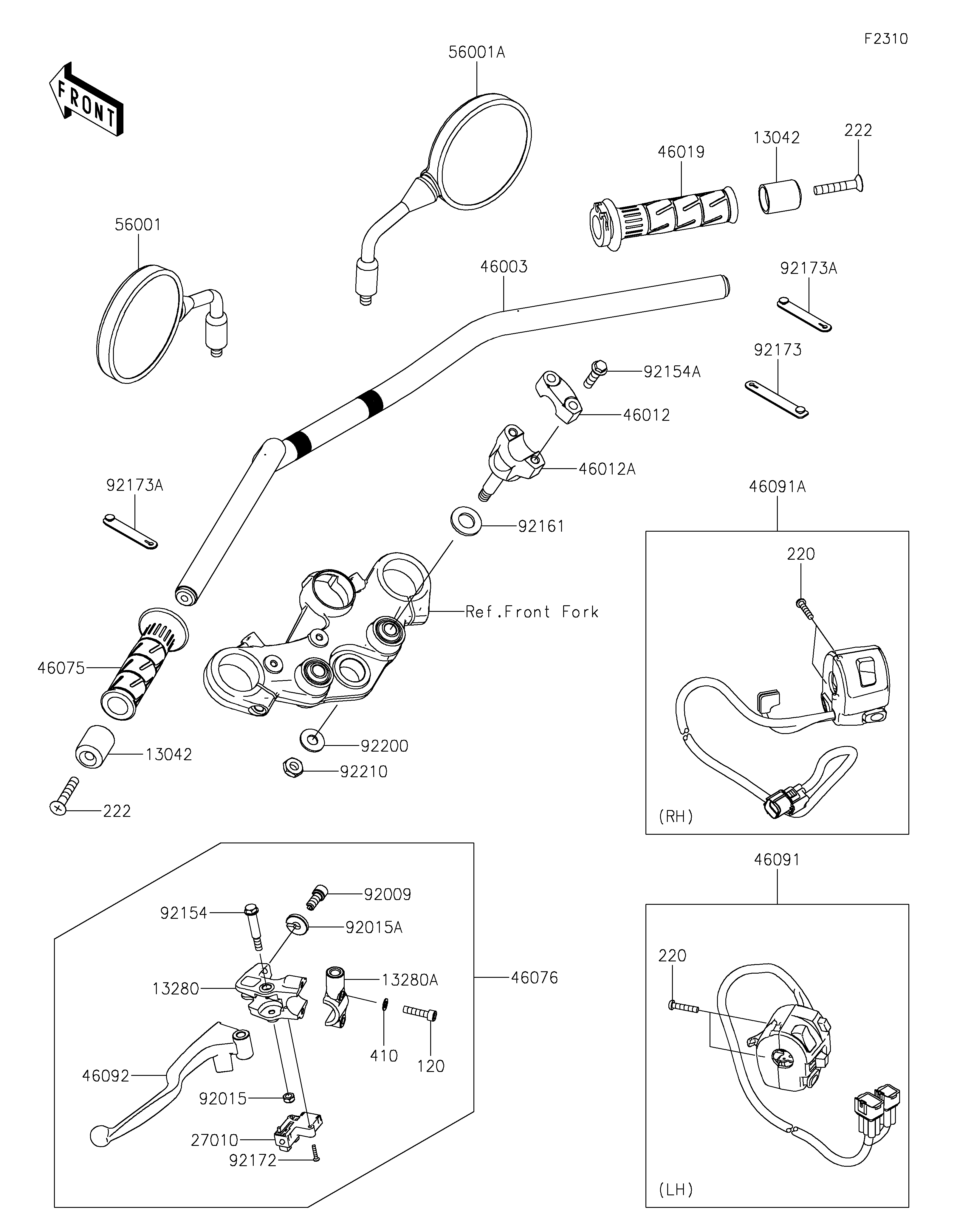

2024 ELIMINATOR® SE ABS - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13042
13042
13280
13280A
27010
46003
46012
46012A
46019
46075
46076
46091
46091A
46092
56001
56001A
92009
92015
92015A
92154
92154A
92161
92172
92173
92173A
92173A
92200
92210
120
220
220
222
222
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-0032 2
HOLDER,LEVER 13280 13280-0929 1
HOLDER,MIRROR 13280A 13280-0930 1
SWITCH,CLUTCH 27010 27010-0729 1
HANDLE,BLACK 46003 46003-0825-10 1
HOLDER-HANDLE,UPP,F.BLACK 46012 46012-0101-21 2
HOLDER-HANDLE,LWR,F.BLACK 46012A 46012-0419-21 2
GRIP-ASSY,THROTTLE 46019 46019-0060 1
GRIP,HANDLE,LH 46075 46075-0564 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0154 1
HOUSING-ASSY-CONTROL,LH 46091 46091-0604 1
HOUSING-ASSY-CONTROL,RH 46091A 46091-0656 1
LEVER-GRIP,CLUTCH 46092 46092-0562 1
MIRROR-ASSY,LH 56001 56001-0451 1
MIRROR-ASSY,RH 56001A 56001-0452 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015A 92015-1197 1
BOLT,FLANGED,6X44 92154 92154-2331 1
BOLT,FLANGED,8X30 92154A 92154-3840 4
DAMPER 92161 92161-0037 2
SCREW,3X16 92172 92172-0183 2
CLAMP 92173 92173-2194 1
CLAMP 92173A 92173-2199 2
WASHER,10.5X24X2 92200 92200-1844 2
NUT,LOCK,10MM 92210 92210-0784 2
BOLT-SOCKET,6X25 120 120CB0625 2
SCREW-PAN-CROS,5X25 220 220AB0525 4
SCREW-CSK-RD-CROS,8X45 222 222AB0845 2
WASHER-PLAIN-SMALL,6MM 410 410AB0600 2
