Parts Diagrams

customer service agent speaking with a customer

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.

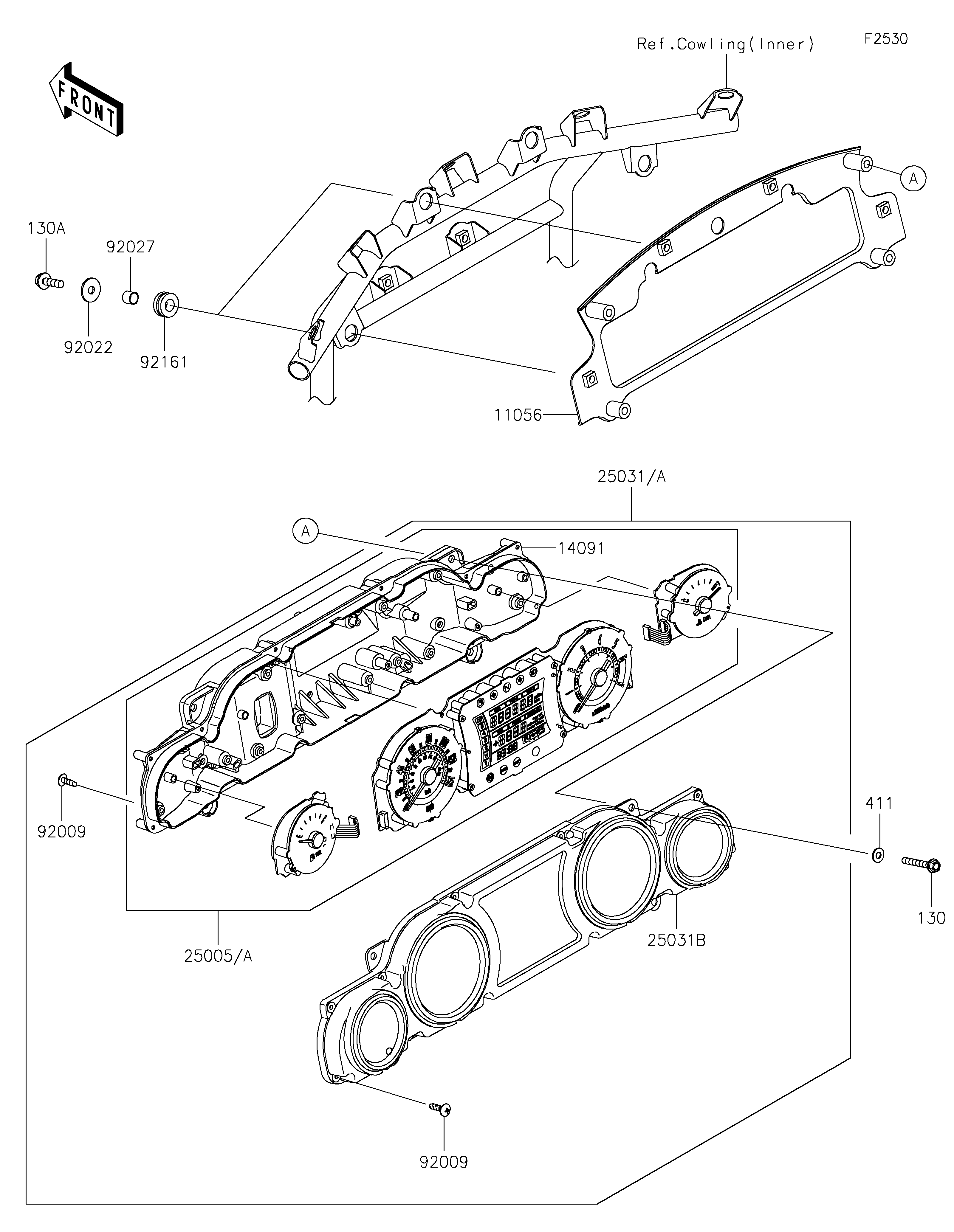

11056
14091
25005
25005A
25031
25031A
25031B
92009
92009
92022
92027
92161
130
130A
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,METER 11056 11056-1139 1
COVER,METER,LWR 14091 14091-1577 1
SPEEDOMETER,COMBINATION,ABS 25005 25005-0129 1 CA
SPEEDOMETER,COMBINATION,ABS 25005A 25005-0130 1 CN
METER-ASSY,COMBINATION,ABS 25031 25031-0701 1 CA
METER-ASSY,COMBINATION,ABS 25031A 25031-0702 1 CN
METER-ASSY,UPP CASE 25031B 25031-5046 1
SCREW,TAPPING,3X16 92009 92009-1391 26
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 4
COLLAR,6.8X10X8.5 92027 92027-129 4
DAMPER 92161 92161-0154 4
BOLT-FLANGED,5X35 130 130BA0535 4
BOLT-FLANGED,6X20 130A 130BA0620 4
WASHER-PLAIN,5MM 411 411AB0500 4
