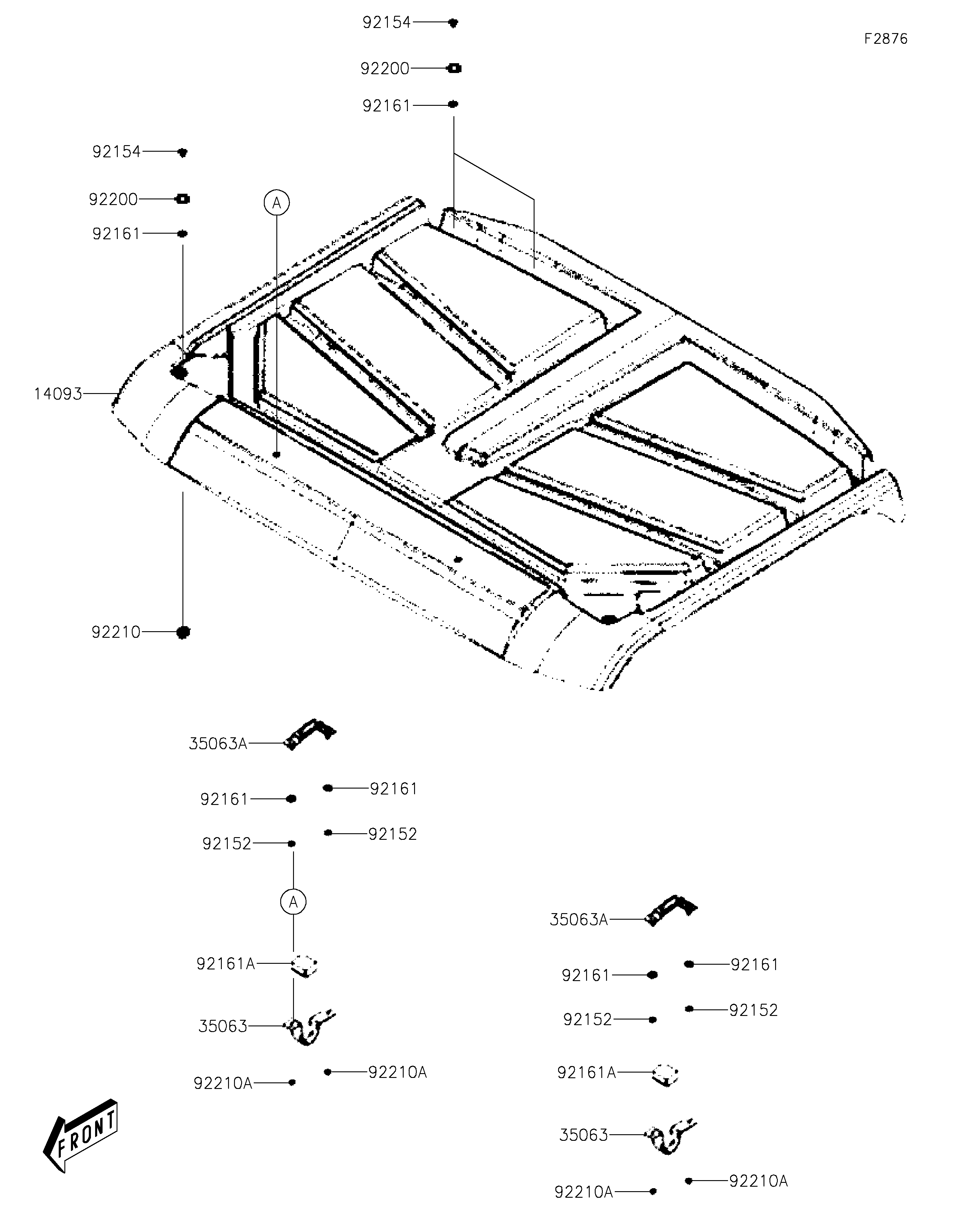

2020 MULE PRO-MX™ EPS CAMO - Sun Top

DOWNLOAD PDF
SELECT A NEW PART
14093
35063
35063
35063A
35063A
92152
92152
92152
92152
92154
92154
92161
92161
92161
92161
92161
92161
92161A
92161A
92200
92200
92210
92210A
92210A
92210A
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SUNTOP,S.BLACK 14093 14093-Y045-933 1
STAY,SUNTOP BOTTOM 35063 35063-Y045 2
STAY,SUNTOP TOP 35063A 35063-Y046 2
COLLAR 92152 92152-Y074 4
BOLT,FLANGE,6MM 92154 92154-Y213 6
DAMPER 92161 92161-Y056 10
DAMPER 92161A 92161-Y057 2
WASHER,10.5MM 92200 92200-Y100 6
NUT,6MM 92210 92210-Y026 2
NUT,6MM 92210A 92210-Y087 4
