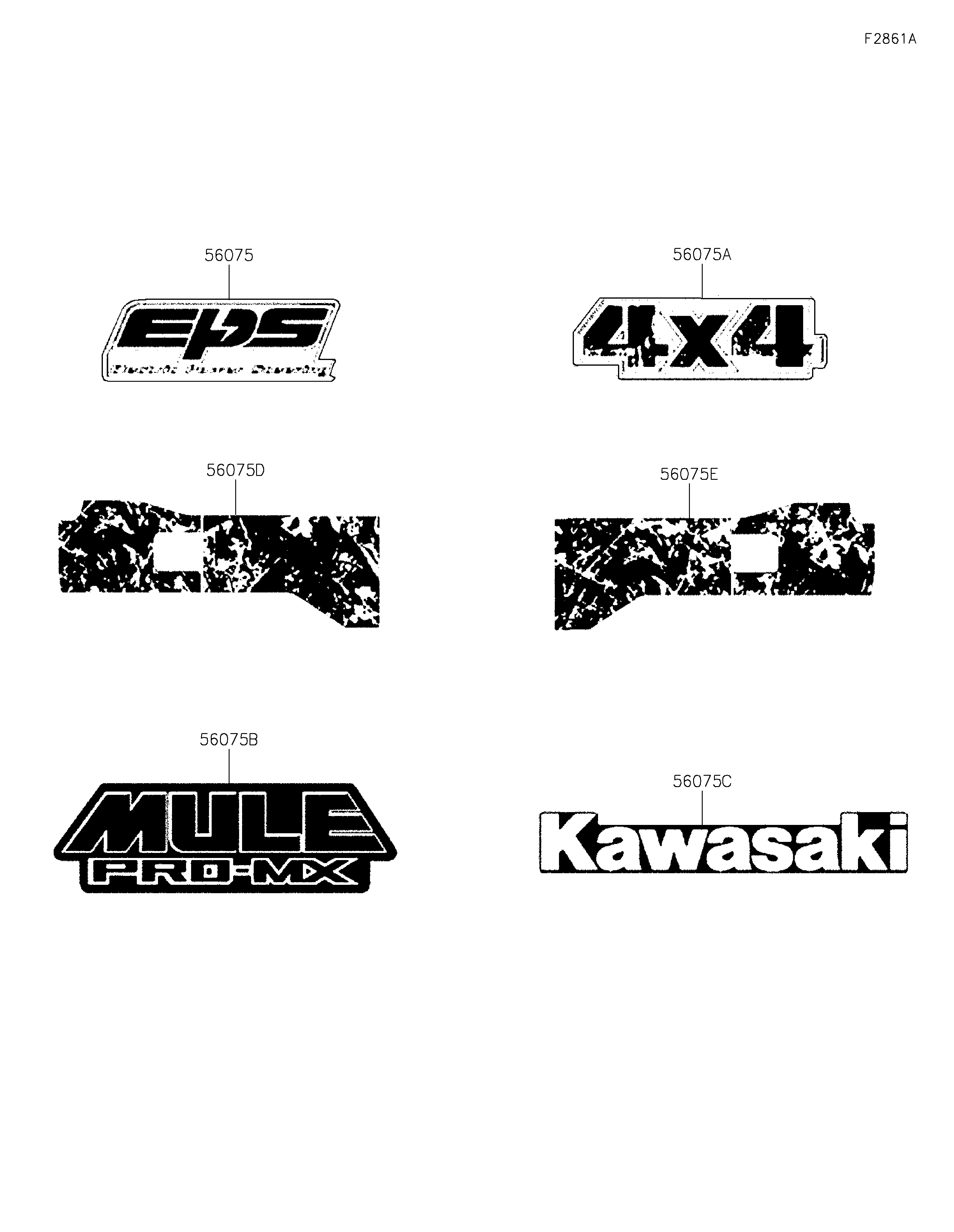

56075
56075A
56075B
56075C
56075D
56075E
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PATTERN,EPS 56075 56075-Y023 2
PATTERN,4X4 56075A 56075-Y024 2
PATTERN,MULE PRO-MX 56075B 56075-Y027 1
PATTERN,KAWASAKI 56075C 56075-Y028 2
PATTERN,DOOR,RH 56075D 56075-Y045 1
PATTERN,DOOR,LH 56075E 56075-Y046 1
