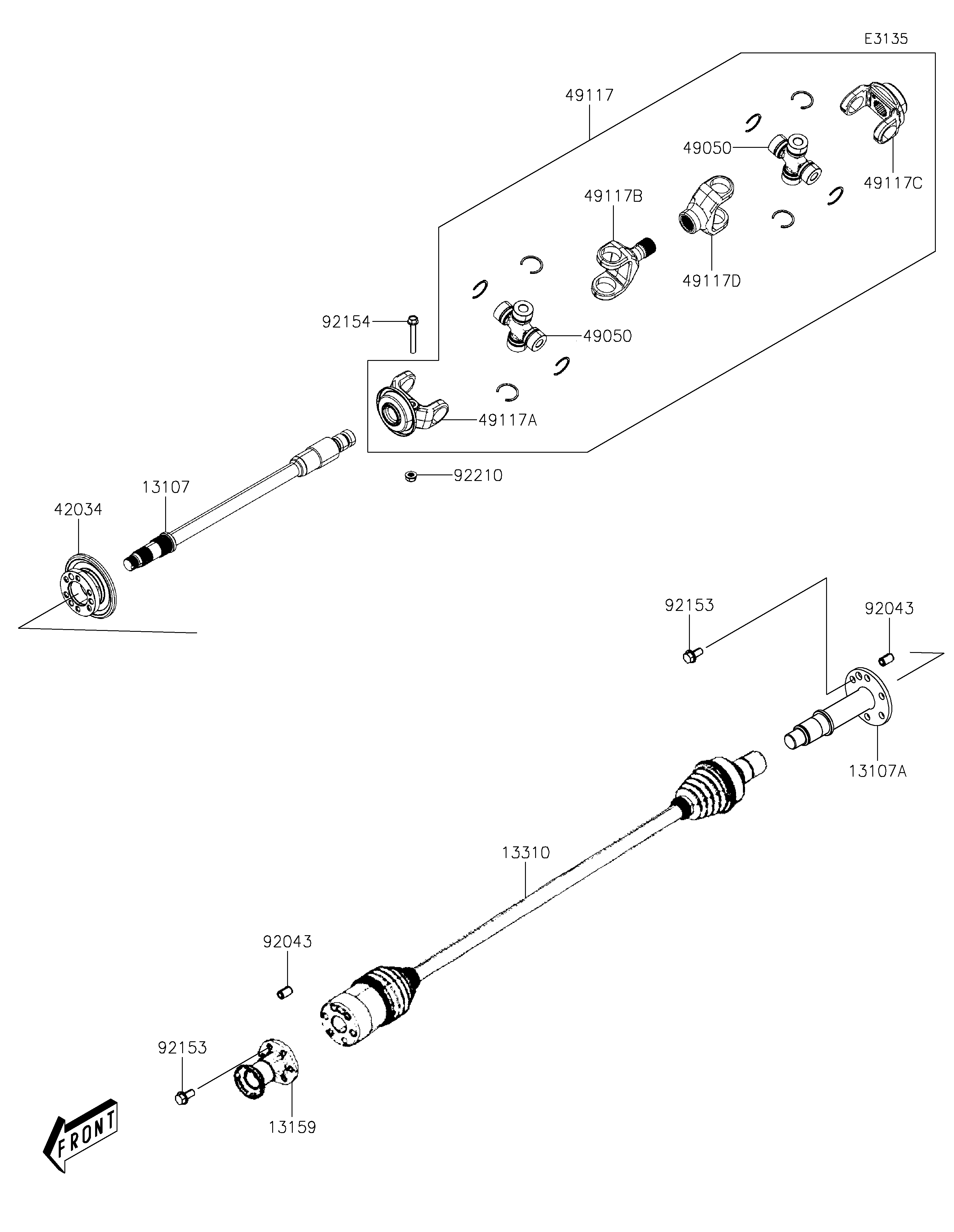

2019 MULE PRO-MX™ EPS LE - Drive Shaft-Propeller
13107
13107A
13159
13310
42034
49050
49050
49117
49117A
49117B
49117C
49117D
92043
92043
92153
92153
92154
92210
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
SHAFT,FINAL | 13107 | 13107-Y027 | 1 | ||
SHAFT | 13107A | 13107-Y030 | 1 | ||
CONNECTOR,FR PROPELLER SHAFT | 13159 | 13159-Y002 | 1 | ||
SHAFT-ASSY,PROPELLER | 13310 | 13310-Y003 | 1 | ||
COUPLING | 42034 | 42034-Y003 | 1 | ||
SPIDER | 49050 | 49050-Y001 | 2 | ||
YOKE,DRIVE FRONT ASSY | 49117 | 49117-Y001 | 1 | ||
YOKE | 49117A | 49117-Y002 | 1 | ||
YOKE | 49117B | 49117-Y003 | 1 | ||
YOKE | 49117C | 49117-Y004 | 1 | ||
YOKE | 49117D | 49117-Y005 | 1 | ||
PIN,10X16 | 92043 | 92043-Y046 | 2 | ||
BOLT,FLANGE,8X16 | 92153 | 92153-Y032 | 12 | ||
BOLT,SPECIAL,8X52 | 92154 | 92154-Y168 | 1 | ||
NUT,8MM | 92210 | 92210-Y076 | 1 |
