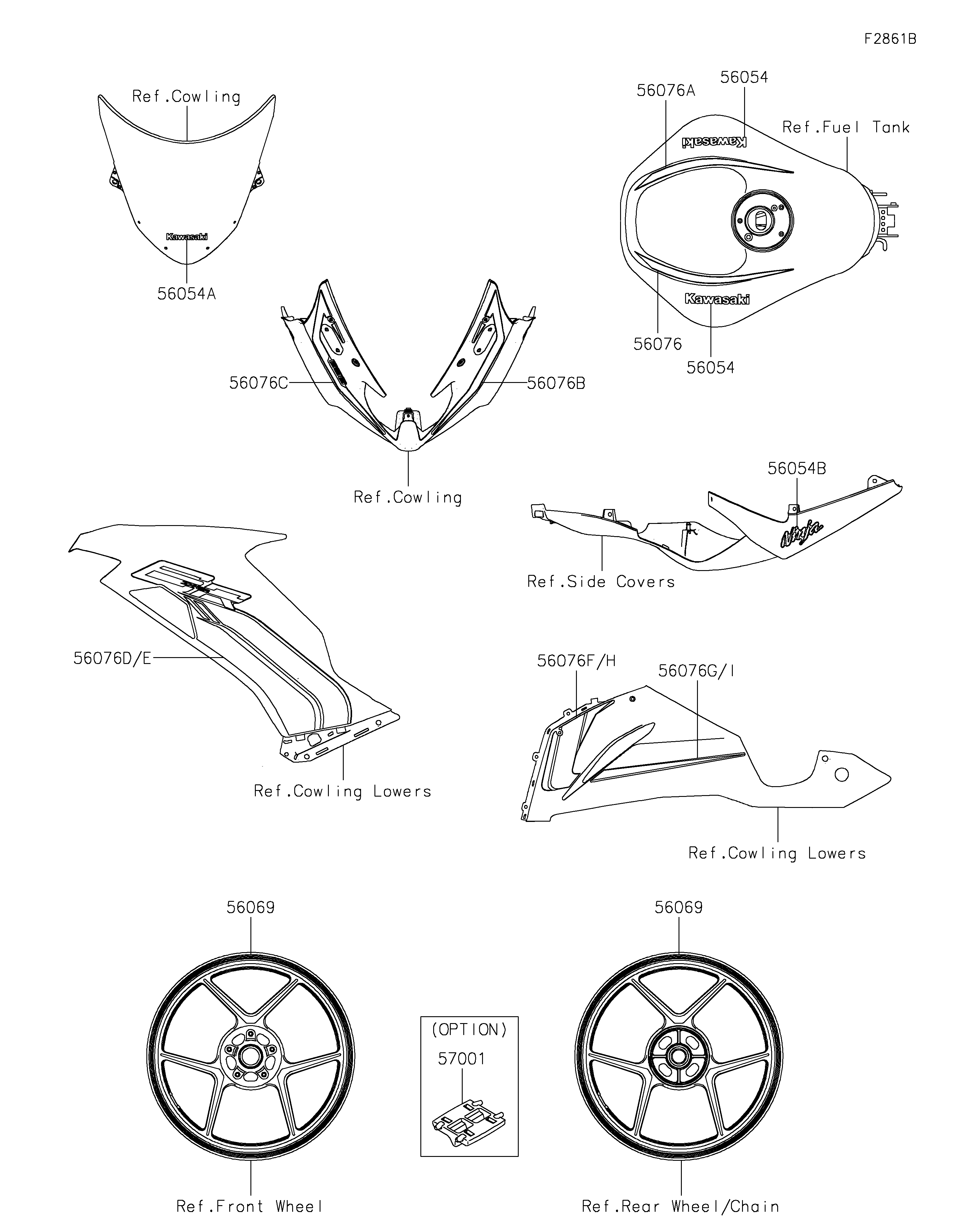

2023 Ninja ZX-6R KRT Edition - Decals(Gray)(HNFAN/HNFAL/HPFAN/HPFAL)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054
56054A
56054B
56069
56069
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FUEL TANK,KAWASAKI 56054 56054-2424 2 _________________________________________CA,US
MARK,WINDSHIELD,KAWASAKI 56054A 56054-2509 1 _________________________________________CA,US
MARK,TAIL COVER,NINJA 56054B 56054-2988 2 _________________________________________CA,US
PATTERN,RR WHEEL,RED 56069 56069-1663 4 _________________________________________CA,US
PATTERN,FUEL TANK,LH 56076 56076-2953 1 _________________________________________CA,US
PATTERN,FUEL TANK,RH 56076A 56076-2954 1 _________________________________________CA,US
PATTERN,UPP COWL.,LH 56076B 56076-2955 1 _________________________________________CA,US
PATTERN,UPP COWL.,RH 56076C 56076-2956 1 _________________________________________CA,US
PATTERN,SIDE COWL.,LH 56076D 56076-2957 1 _________________________________________CA,US
PATTERN,SIDE COWL.,RH 56076E 56076-2958 1 _________________________________________CA,US
PATTERN,LWR COWL.,LH,FR 56076F 56076-2959 1 _________________________________________CA,US
PATTERN,LWR COWL.,LH,RR 56076G 56076-2960 1 _________________________________________CA,US
PATTERN,LWR COWL.,RH,FR 56076H 56076-2961 1 _________________________________________CA,US
PATTERN,LWR COWL.,RH,RR 56076I 56076-2962 1 _________________________________________CA,US
RIM STRIPE APPLICATOR 57001 57001-1752 AR _________________________________________CA,US
