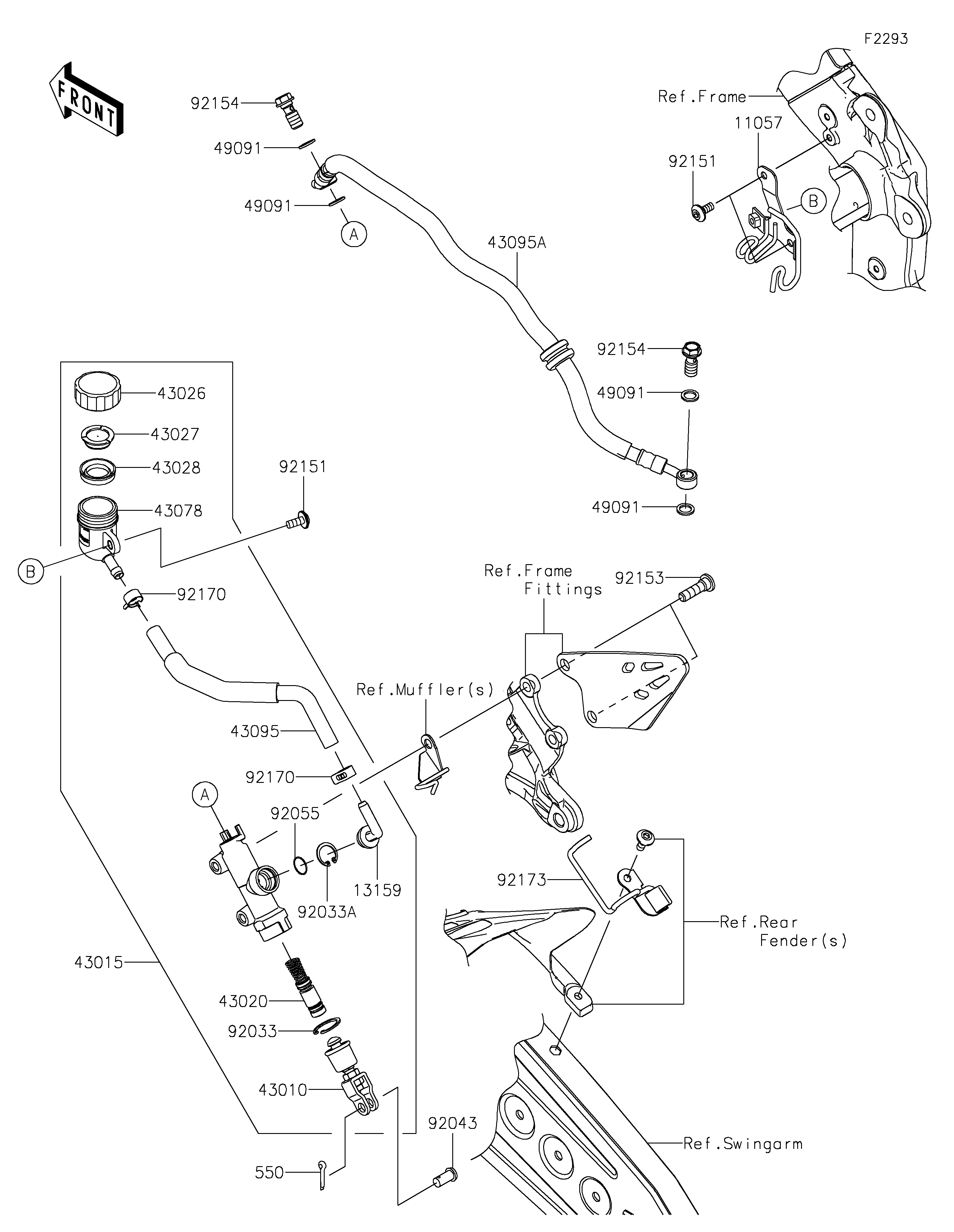

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,RR MASTER CYLINDER 11057 11057-2395 1
CONNECTOR 13159 13159-1056 1
ROD-ASSY-BRAKE 43010 43010-1062 1
CYLINDER-ASSY-MASTER,RR 43015 43015-0575 1
PISTON-COMP-BRAKE 43020 43020-1094 1
CAP-BRAKE 43026 43026-1070 1
PLATE-DIAPHRAGM 43027 43027-1054 1
DIAPHRAGM 43028 43028-1073 1
RESERVOIR 43078 43078-1102 1
HOSE-BRAKE,RR MC 43095 43095-0737 1
HOSE-BRAKE,RR,548MM 43095A 43095-0777 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
RING-SNAP,20.9X24.6X1.2 92033 92033-0079 1
RING-SNAP,20.5MM 92033A 92033-1186 1
PIN,8X17 92043 92043-0104 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,SOCKET,6X14 92151 92151-1654 3
BOLT,SOCKET,8X30 92153 92153-1624 2
BOLT,BANJO,10X23 92154 92154-1712 2
CLAMP,HOSE 92170 92170-1091 2
CLAMP 92173 92173-1048 1
PIN-COTTER,2.0X15 550 550AA2015 1
