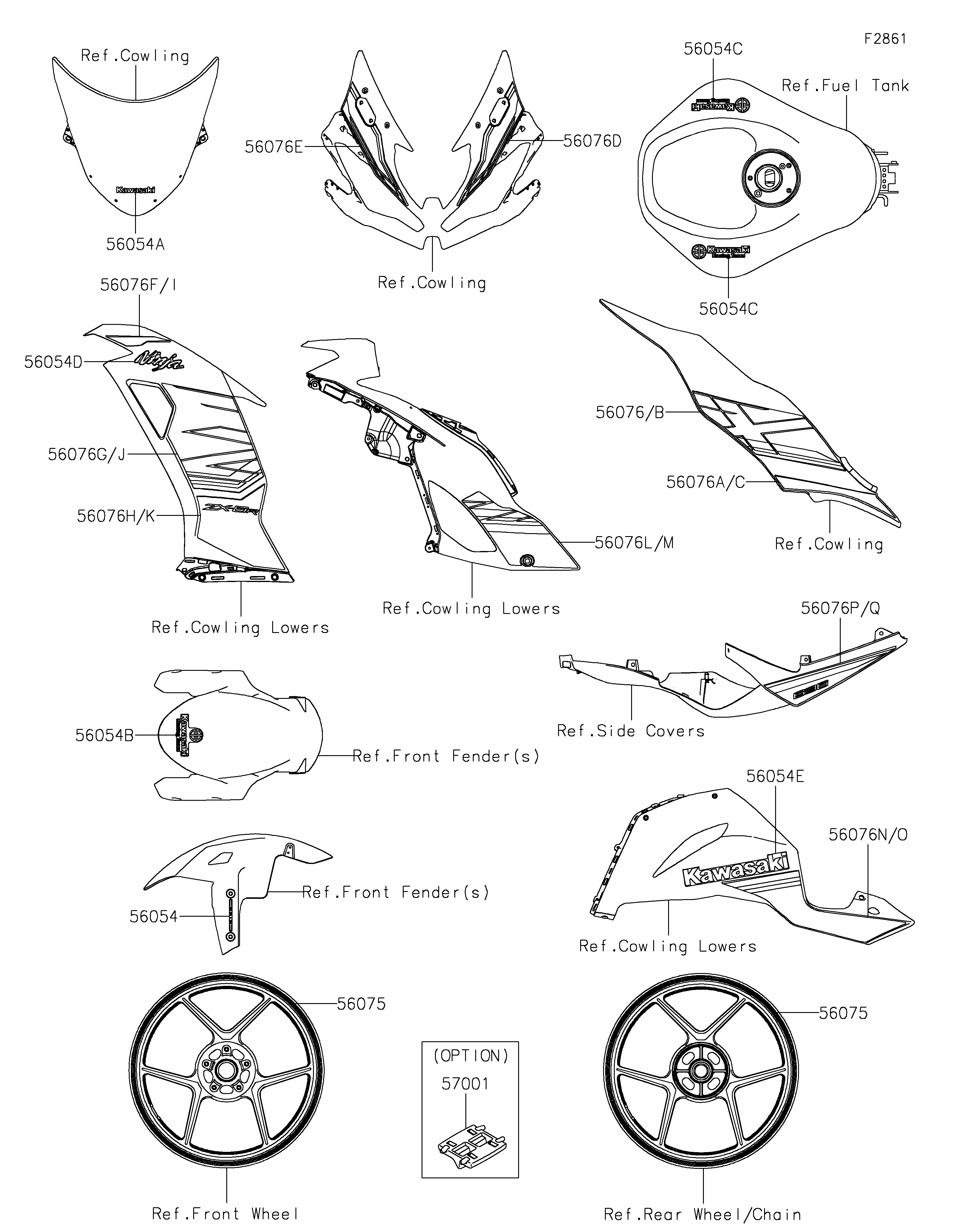

2023 NINJA® ZX™-6R KRT EDITION - Decals

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56054C
56054D
56054E
56075
56075
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076M
56076N
56076O
56076P
56076Q
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,KIBS 56054 56054-0919 2
MARK,WINDSHIELD,KAWASAKI 56054A 56054-2509 1
MARK,FR FENDER,KRT 56054B 56054-3899 1
MARK,KAWASAKI RACING TEAM 56054C 56054-3901 2
MARK,SIDE COWL.,NINJA 56054D 56054-3910 2
MARK,LWR COWL.,KAWASAKI 56054E 56054-3911 2
PATTERN,WHEEL,GRN/BLK,6X1079 56075 56075-1693 4
PATTERN,SIDE COVER,LH,UPP 56076 56076-7757 1
PATTERN,SIDE COVER,LH,LWR 56076A 56076-7758 1
PATTERN,SIDE COVER,RH,UPP 56076B 56076-7759 1
PATTERN,SIDE COVER,RH,LWR 56076C 56076-7760 1
PATTERN,UPP COWL.,LH 56076D 56076-7761 1
PATTERN,UPP COWL.,RH 56076E 56076-7762 1
PATTERN,SIDE COWL.,LH,UPP,FR 56076F 56076-7763 1
PATTERN,SIDE COWL.,LH,FR 56076G 56076-7764 1
PATTERN,SIDE COWL.,LH,LWR,FR 56076H 56076-7765 1
PATTERN,SIDE COWL.,RH,UPP,FR 56076I 56076-7766 1
PATTERN,SIDE COWL.,RH,FR 56076J 56076-7767 1
PATTERN,SIDE COWL.,RH,LWR,FR 56076K 56076-7768 1
PATTERN,SIDE COWL.,LH,RR 56076L 56076-7769 1
PATTERN,SIDE COWL.,RH,RR 56076M 56076-7770 1
PATTERN,LWR COWL.,LH 56076N 56076-7771 1
PATTERN,LWR COWL.,RH 56076O 56076-7772 1
PATTERN,TAIL COVER,LH 56076P 56076-7773 1
PATTERN,TAIL COVER,RH 56076Q 56076-7774 1
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
