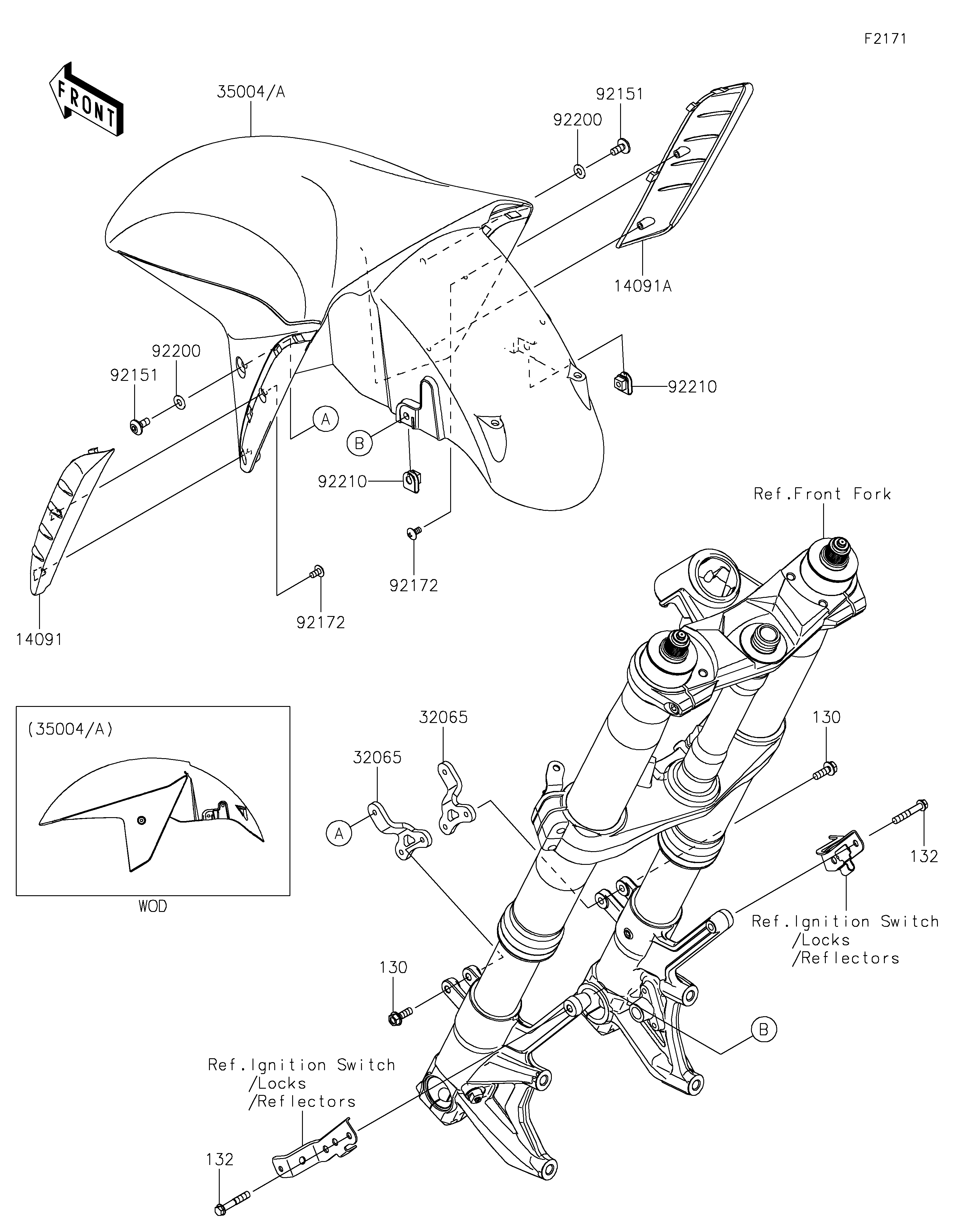

2022 NINJA® ZX™-14R ABS - Front Fender(s)
14091
14091A
32065
32065
35004
35004A
92151
92151
92172
92172
92200
92200
92210
92210
130
130
132
132
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,FRONT FENDER,LH | 14091 | 14091-0598 | 1 | ||
| COVER,FRONT FENDER,RH | 14091A | 14091-0599 | 1 | ||
| BRACKET-FENDER | 32065 | 32065-0020 | 2 | ||
| FENDER-FRONT,M.D.BLACK | 35004 | 35004-0131-17K | 1 | ||
| FENDER-FRONT,F.EBONY | 35004A | 35004-0131-45L | 1 | ||
| BOLT,SOCKET,6X14 | 92151 | 92151-1654 | 2 | ||
| SCREW,TAPPING,5X10 | 92172 | 92172-0262 | 4 | ||
| WASHER,6.5X14X1 | 92200 | 92200-1388 | 2 | ||
| NUT,6MM | 92210 | 92210-0277 | 2 | ||
| BOLT-FLANGED,6X18 | 130 | 130BA0618 | 4 | ||
| BOLT-FLANGED-SMALL,6X35 | 132 | 132BB0635 | 2 |
