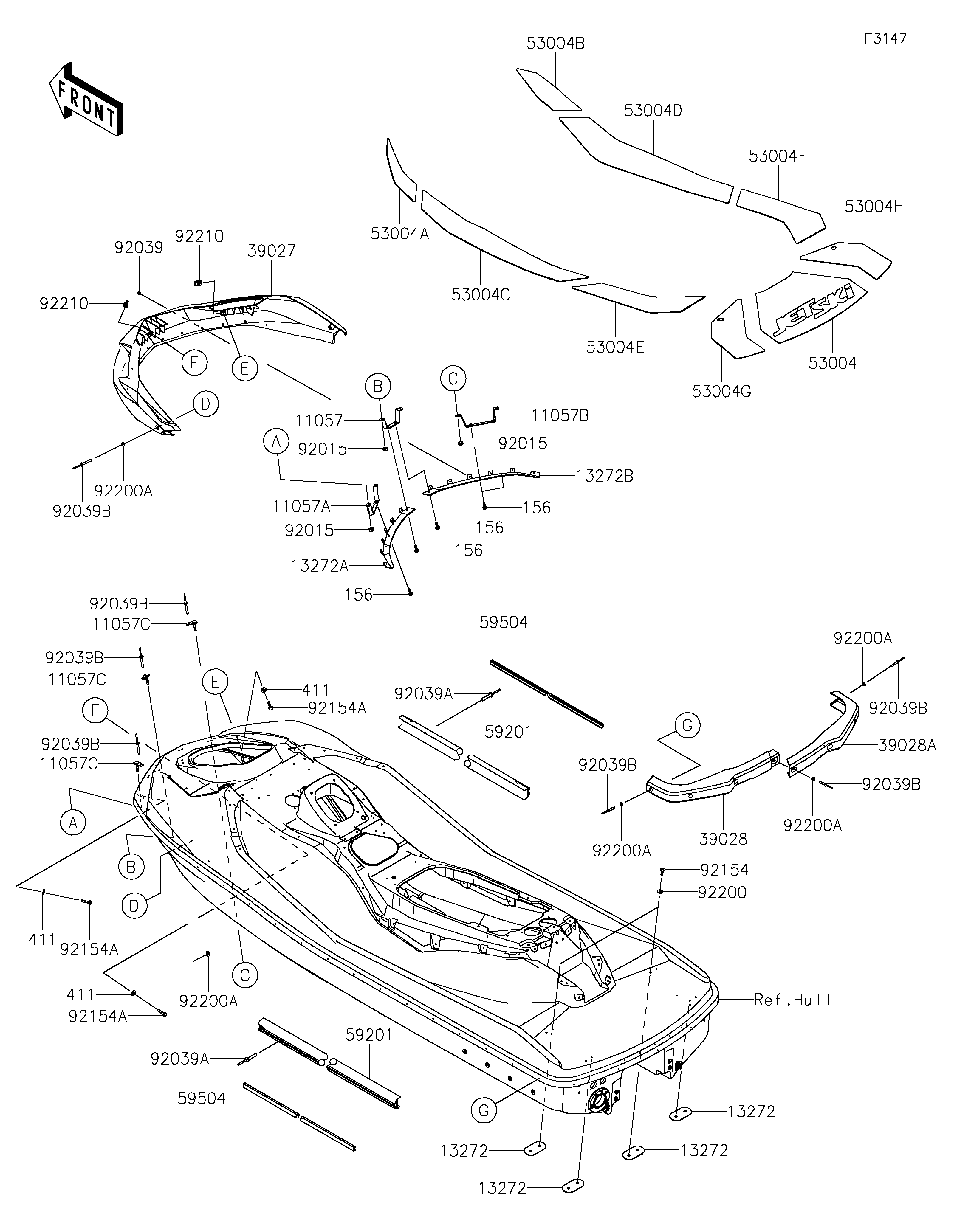

2022 JET SKI® ULTRA® 310X - Pads

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
11057B
11057C
11057C
11057C
13272
13272
13272
13272
13272A
13272B
39027
39028
39028A
53004
53004A
53004B
53004C
53004D
53004E
53004F
53004G
53004H
59201
59201
59504
59504
92015
92015
92015
92039
92039A
92039A
92039B
92039B
92039B
92039B
92039B
92039B
92039B
92154
92154A
92154A
92154A
92200
92200A
92200A
92200A
92200A
92200A
92210
92210
156
156
156
156
411
411
411
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FR BUMPER,CNT 11057 11057-7809 1
BRACKET,FR BUMPER,LH 11057A 11057-7810 1
BRACKET,FR BUMPER,RH 11057B 11057-7811 1
BRACKET,FR 11057C 11057-7812 6
PLATE,GUIDE 13272 13272-3849 4
PLATE,FR BUMPER,LH 13272A 13272-3984 1
PLATE,FR BUMPER,RH 13272B 13272-3985 1
BUMPER-FRONT,BLACK 39027 39027-0005-6Z 1
BUMPER-REAR,LH,BLACK 39028 39028-0008-6Z 1
BUMPER-REAR,RH,BLACK 39028A 39028-0009-6Z 1
MAT,DECK,CNT 53004 53004-0686 1
MAT,FLOOR,FR,LH 53004A 53004-0695 1
MAT,FLOOR,FR,RH 53004B 53004-0696 1
MAT,FLOOR,MIDDLE,LH 53004C 53004-0697 1
MAT,FLOOR,MIDDLE,RH 53004D 53004-0698 1
MAT,FLOOR,RR,LH 53004E 53004-0699 1
MAT,FLOOR,RR,RH 53004F 53004-0700 1
MAT,DECK,LH 53004G 53004-0701 1
MAT,DECK,RH 53004H 53004-0702 1
BUMPER,SIDE,BLACK 59201 59201-0009-6Z 2
INSERT-BOAT FENDER,SIDE,BLACK 59504 59504-0003-6Z 2
NUT,LOCK,6MM 92015 92015-3766 6
RIVET 92039 92039-3733 12
RIVET 92039A 92039-3771 26
RIVET 92039B 92039-3773 15
BOLT,SOCKET,6X20 92154 92154-0918 2
BOLT,FLANGED,6X28 92154A 92154-4484 3
WASHER,6.5X16X1.0 92200 92200-3712 2
WASHER,5X12X1 92200A 92200-3796 11
NUT,6MM 92210 92210-3768 2
BOLT-WP,6X18 156 156R0618 6
WASHER-PLAIN,6MM 411 411S0600 3
