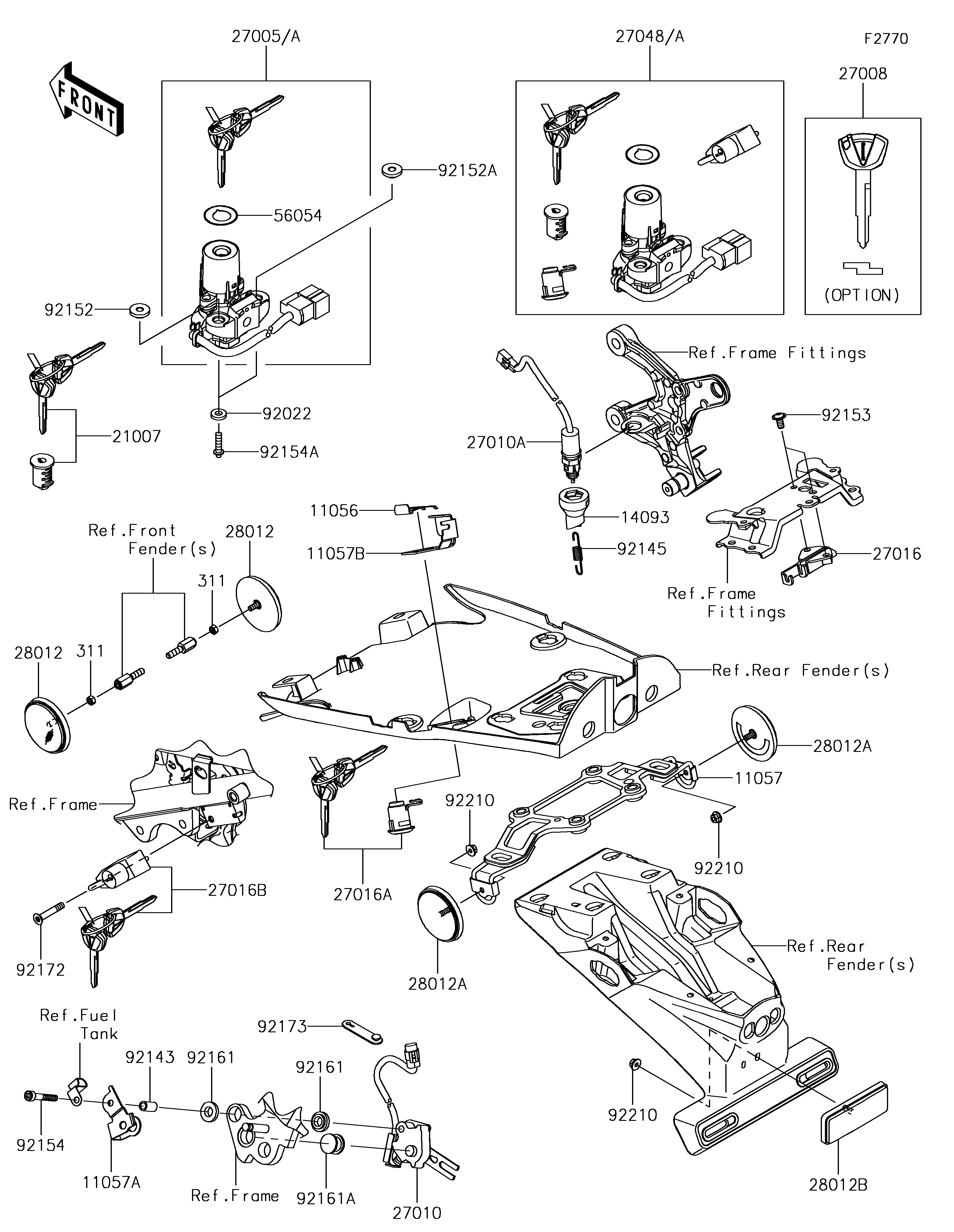

2018 Z900RS - Ignition Switch/Locks/Reflectors
11056
11057
11057A
11057B
14093
21007
27005
27005A
27008
27010
27010A
27016
27016A
27016B
27048
27048A
28012
28012
28012A
28012A
28012B
56054
92022
92143
92145
92152
92152A
92153
92154
92154A
92161
92161
92161A
92172
92173
92210
92210
92210
311
311
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,CLASP | 11056 | 11056-0238 | 1 | ||
| BRACKET,RR REFLECTOR | 11057 | 11057-0878 | 1 | ||
| BRACKET,STAND SW. | 11057A | 11057-1413 | 1 | ||
| BRACKET,SEAT LOCK CABLE | 11057B | 11057-1556 | 1 | ||
| COVER,BRAKE SW. | 14093 | 14093-0666 | 1 | ||
| ROTOR,LOCK,TANK CAP | 21007 | 21007-5068 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-0646 | 1 | (JKAZR2C1 JA000651 - ) | |
| SWITCH-ASSY-IGNITION | 27005A | 27005-5167 | 1 | ( - JKAZR2C1 JA000650) | |
| KEY-LOCK,BLANK,IMMOBI | 27008 | 27008-0558 | 1 | (OPTION) | |
| SWITCH,SIDE STAND | 27010 | 27010-0811 | 1 | ||
| SWITCH,RR BRAKE | 27010A | 27010-0867 | 1 | ||
| LOCK-ASSY,SEAT STRIKER | 27016 | 27016-1115 | 1 | ||
| LOCK-ASSY,SEAT | 27016A | 27016-5373 | 1 | ||
| LOCK-ASSY,HELMET | 27016B | 27016-5402 | 1 | ||
| SWITCH-ASSY | 27048 | 27048-5159 | 1 | (JKAZR2C1 JA000651 - ) | |
| SWITCH-ASSY | 27048A | 27048-5184 | 1 | ( - JKAZR2C1 JA000650) | |
| REFLECTOR-REFLEX,FR,SIDE | 28012 | 28012-0001 | 2 | ||
| REFLECTOR-REFLEX | 28012A | 28012-0002 | 2 | ||
| REFLECTOR-REFLEX | 28012B | 28012-1077 | 1 | ||
| MARK,IGNITION | 56054 | 56054-1596 | 1 | ||
| WASHER,7X15.5X3 | 92022 | 92022-312 | 2 | ||
| COLLAR,6.5X9.5X17 | 92143 | 92143-1408 | 1 | ||
| SPRING,REAR BRAKE | 92145 | 92145-0946 | 1 | ||
| COLLAR,LH,IGN SW,6X20X7.4 | 92152 | 92152-2516 | 1 | ||
| COLLAR,RH,IGN SW,6.45X20X7.4 | 92152A | 92152-2518 | 1 | ||
| BOLT,SOCKET,6X12 | 92153 | 92153-1617 | 2 | ||
| BOLT,SOCKET,6X40 | 92154 | 92154-0505 | 1 | ||
| BOLT,TORX,6X22 | 92154A | 92154-1858 | 2 | ||
| DAMPER | 92161 | 92161-0117 | 2 | ||
| DAMPER | 92161A | 92161-0118 | 1 | ||
| SCREW,HEXLOBE,6X35 | 92172 | 92172-0835 | 1 | ||
| CLAMP,RUBBER PLATE | 92173 | 92173-1229 | 1 | ||
| NUT,FLANGED,5MM | 92210 | 92210-0007 | 3 | ||
| NUT-HEX,5MM | 311 | 311AB0500 | 2 |
