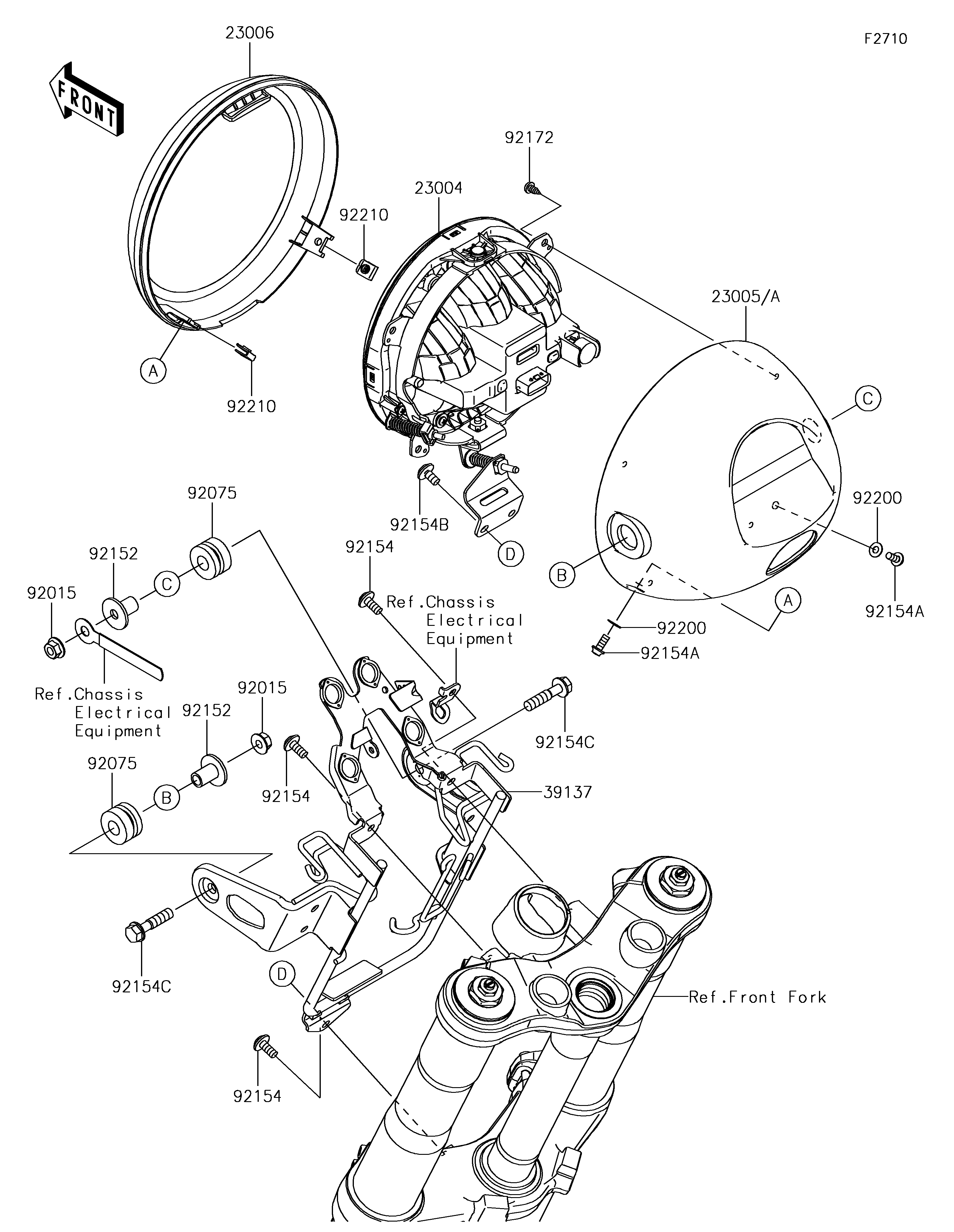

2018 Z900RS - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
23004
23005A
23006
39137
92015
92015
92075
92075
92152
92152
92154
92154
92154
92154A
92154A
92154B
92154C
92154C
92172
92200
92200
92210
92210
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LAMP-HEAD,LED 23004 23004-0373 1
BODY-COMP-HEAD LAMP,EBONY 23005A 23005-0049-H8 1
RIM-LAMP 23006 23006-0019 1
STAY-COMP,HEAD LAMP 39137 39137-0678 1
NUT,FLANGED,8MM 92015 92015-1014 2
DAMPER 92075 92075-1736 2
COLLAR,8X12X20.3 92152 92152-2433 2
BOLT,SOCKET,6X14 92154 92154-0907 3
BOLT,SOCKET,5X12 92154A 92154-0917 2
BOLT,SOCKET,6X12 92154B 92154-2706 2
BOLT,FLANGED,8X35 92154C 92154-2923 2
SCREW,TAPPING,5X12 92172 92172-0239 4
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
NUT 92210 92210-0571 2
