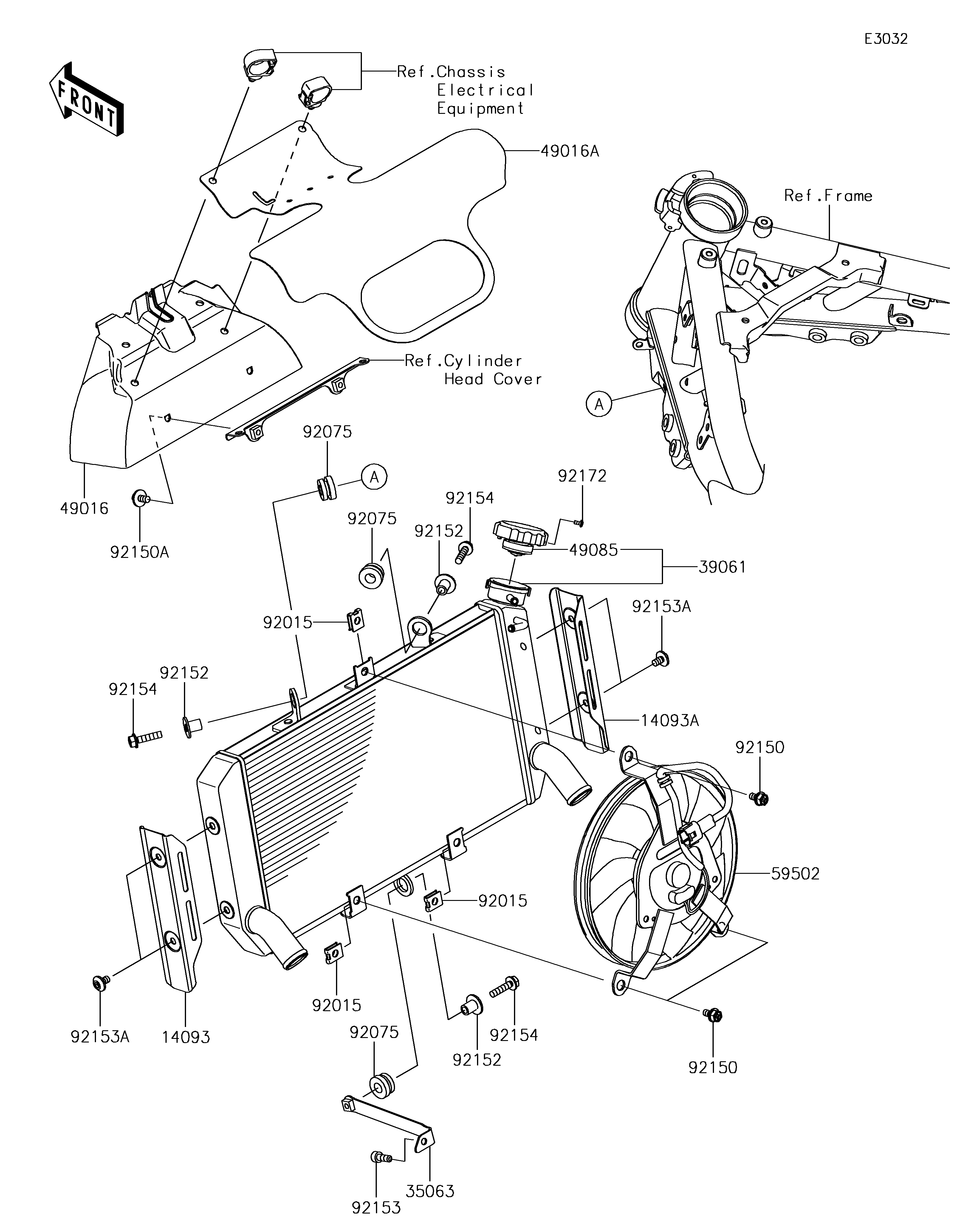

Parts Diagrams |
14093
14093A
35063
39061
49016
49016A
49085
59502
92015
92015
92015
92075
92075
92075
92150
92150
92150A
92152
92152
92152
92153
92153A
92153A
92154
92154
92154
92172
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,RADIATOR,LH,SILVER | 14093 | 14093-0647-28Z | 1 | ||
| COVER,RADIATOR,RH,SILVER | 14093A | 14093-0648-28Z | 1 | ||
| STAY | 35063 | 35063-1395 | 1 | ||
| RADIATOR-ASSY | 39061 | 39061-0749 | 1 | ||
| COVER-SEAL,HEAT | 49016 | 49016-0647 | 1 | ||
| COVER-SEAL,HEAT | 49016A | 49016-0648 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1075 | 1 | ||
| FAN-ASSY | 59502 | 59502-0618 | 1 | ||
| NUT | 92015 | 92015-1487 | 3 | ||
| DAMPER,RUBBER | 92075 | 92075-1123 | 3 | ||
| BOLT,6X12 | 92150 | 92150-1186 | 3 | ||
| BOLT,6X12 | 92150A | 92150-1891 | 2 | ||
| COLLAR | 92152 | 92152-0667 | 3 | ||
| BOLT,SOCKET,6X16 | 92153 | 92153-1344 | 1 | ||
| BOLT,SOCKET,6X10 | 92153A | 92153-1628 | 4 | ||
| BOLT,FLANGED,6X25 | 92154 | 92154-2846 | 3 | ||
| SCREW,TAPPING,3X6 | 92172 | 92172-1225 | 1 |
