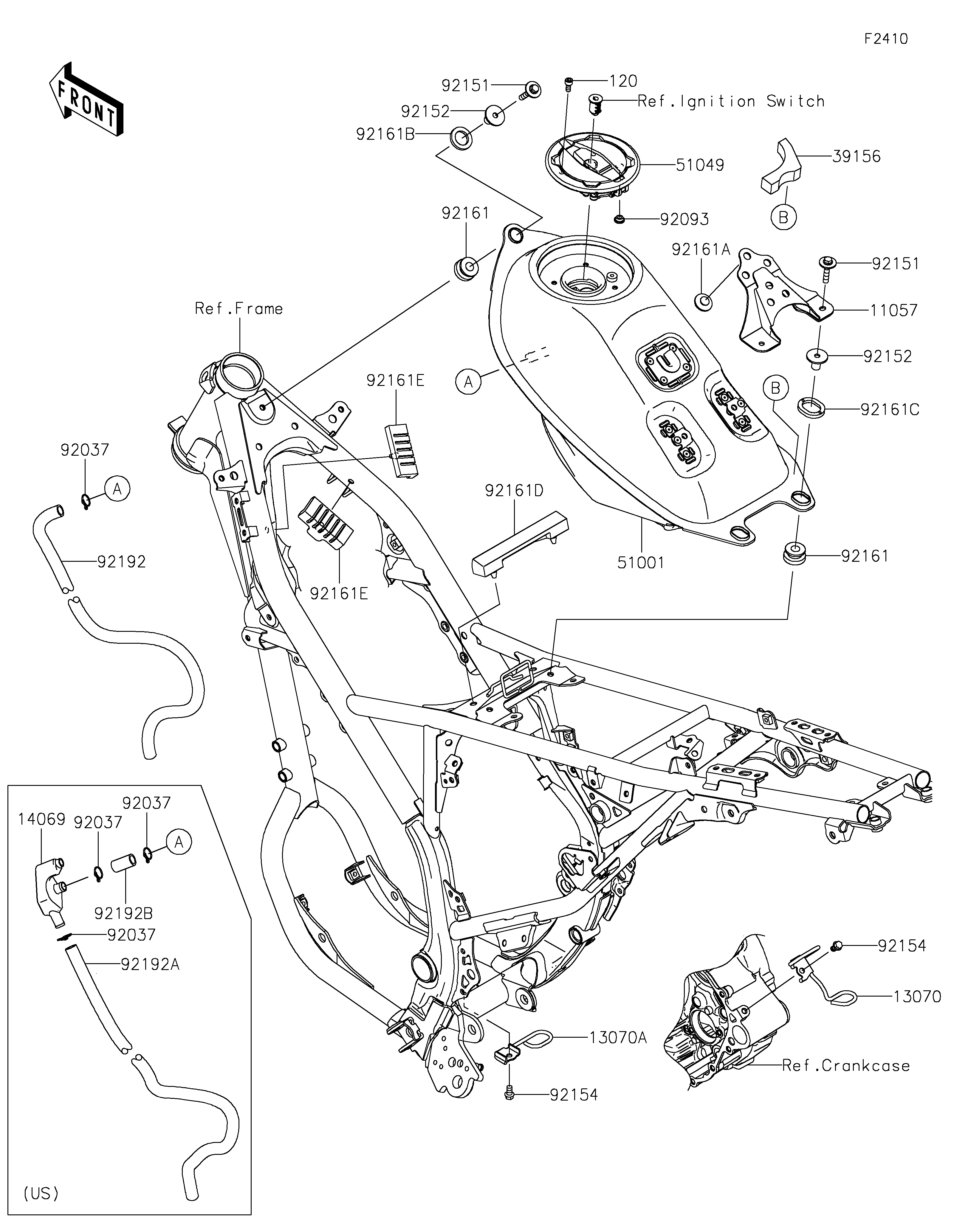

2021 KLX®230 ABS - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
11057
120
13070
13070A
14069
39156
51001
51049
92037
92037
92037
92037
92093
92151
92151
92152
92152
92154
92154
92161
92161
92161A
92161B
92161C
92161D
92161E
92161E
92192
92192A
92192B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET 11057 11057-3910 1
BOLT-SOCKET,5X12 120 120CA0512 4
GUIDE 13070 13070-0909 1
GUIDE 13070A 13070-0912 1
BREATHER,FUEL TANK 14069 14069-0033 1 US
PAD 39156 39156-2463 1
TANK-COMP-FUEL,F.S.BLACK 51001 51001-0902-25Q 1
CAP-TANK 51049 51049-0735 1
CLAMP,12.5MM 92037 92037-1271 1 CA
CLAMP,12.5MM 92037 92037-1271 3 US
SEAL,FUEL TANK CAP 92093 92093-1030 1
BOLT,FLANGED,6X30 92151 92151-1105 3
COLLAR,6.8X10X16 92152 92152-2666 3
BOLT,FLANGED,6X10 92154 92154-0459 2
DAMPER,FUEL TANK 92161 92161-1392 3
DAMPER,8X22X10 92161A 92161-1685 3
DAMPER 92161B 92161-2216 1
DAMPER 92161C 92161-2217 2
DAMPER 92161D 92161-2231 1
DAMPER 92161E 92161-2286 2
TUBE,DRAIN 92192 92192-1949 1 CA
TUBE,10X14X870 92192A 92192-1964 1 US
TUBE,10X14X26 92192B 92192-1965 1 US
