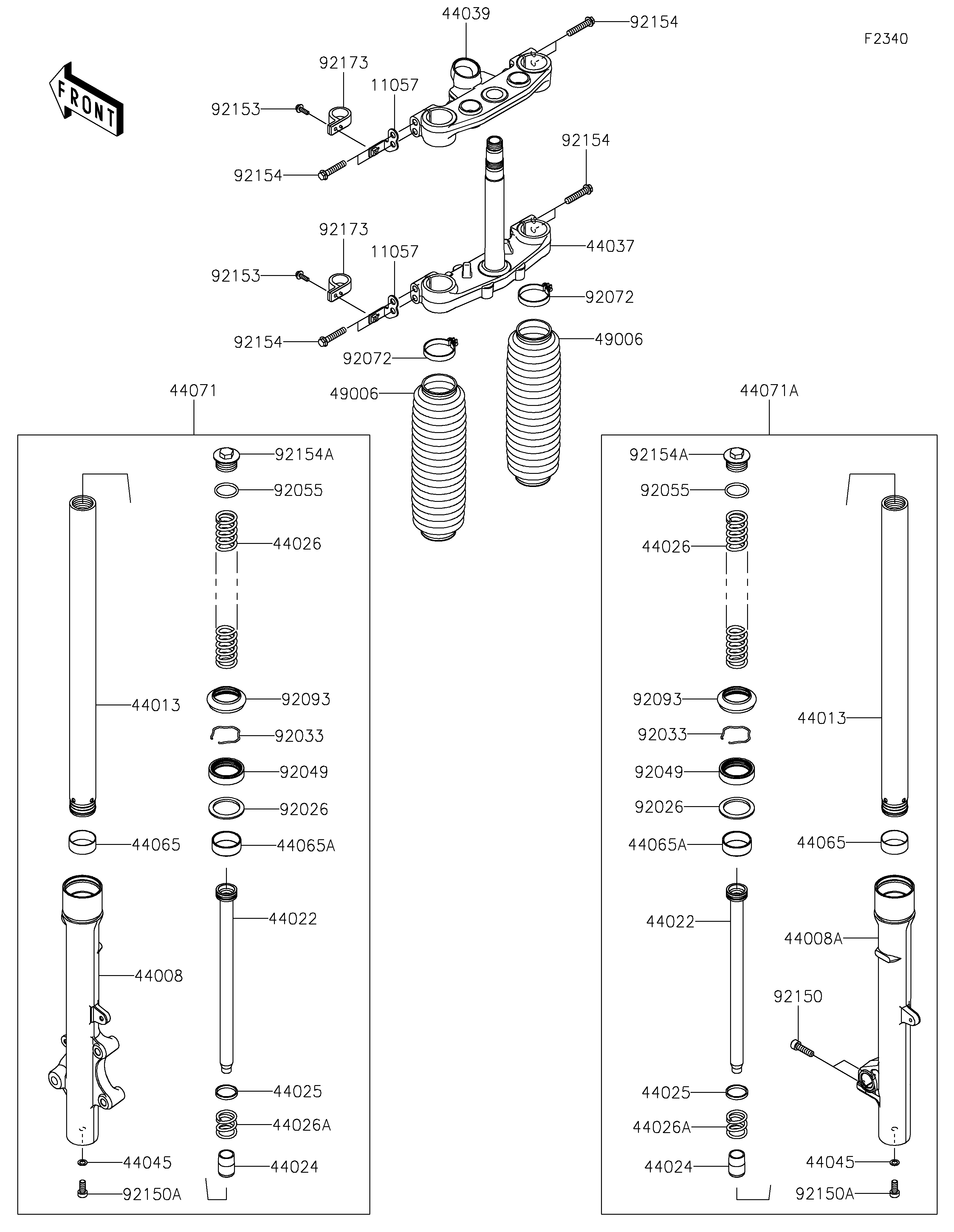

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET | 11057 | 11057-2284 | 2 | ||
PIPE-FORK OUTER,LH | 44008 | 44008-0089 | 1 | ||
PIPE-FORK OUTER,RH | 44008A | 44008-0090 | 1 | ||
PIPE-FORK INNER | 44013 | 44013-0355 | 2 | ||
CYLINDER-FORK | 44022 | 44022-0056 | 2 | ||
CAP-OIL-LOCK | 44024 | 44024-0016 | 2 | ||
RING-FORK PISTON | 44025 | 44025-1062 | 2 | ||
SPRING-FRONT FORK | 44026 | 44026-0241 | 2 | ||
SPRING-FRONT FORK | 44026A | 44026-1556 | 2 | ||
HOLDER-FORK UNDER | 44037 | 44037-0191 | 1 | ||
HOLDER-FORK UPPER | 44039 | 44039-0193 | 1 | ||
GASKET,FORK CYLINDER BOLT | 44045 | 44045-051 | 2 | ||
BUSHING-FRONT FORK | 44065 | 44065-0067 | 2 | ||
BUSHING-FRONT FORK | 44065A | 44065-0068 | 2 | ||
DAMPER-ASSY,LH | 44071 | 44071-1363 | 1 | ||
DAMPER-ASSY,RH | 44071A | 44071-1364 | 1 | ||
BOOT | 49006 | 49006-0612 | 2 | ||
SPACER,FORK | 92026 | 92026-1443 | 2 | ||
RING-SNAP | 92033 | 92033-1286 | 2 | ||
SEAL-OIL | 92049 | 92049-0734 | 2 | ||
RING-O | 92055 | 92055-1456 | 2 | ||
BAND | 92072 | 92072-0826 | 2 | ||
SEAL,FORK OUTER | 92093 | 92093-1367 | 2 | ||
BOLT,SOCKET,8X30 | 92150 | 92150-1407 | 2 | ||
BOLT,SOCKET,8X18 | 92150A | 92150-1432 | 2 | ||
BOLT,FLANGED | 92153 | 92153-1397 | 2 | ||
BOLT | 92154 | 92154-0463 | 8 | ||
BOLT | 92154A | 92154-3953 | 2 | ||
CLAMP | 92173 | 92173-2246 | 2 |
